井下钻孔电阻率法岐离率确定采动工作面“三带”顶界面发育高度

doi:10.11720/wtyht.2019.0023

Abstract
Figure/Table
References
Related Citation (0)

Download: PDF (2974 KB) HTML (0 KB)
Export: BibTeX | EndNote (RIS)

Abstract

The influence range of the mining work on the overlying rock strata is directly related to the safe production of the coal mine. In order to accurately determine the development height of the "three zones" top interface of the mining face, the author used the mine drilling resistivity method to detect the different depths of the mining face at different periods. The sectional view was used to explore the apparent resistivity cross value between different mining positions and the reference position. The deviation rate curve of the "three zones" development was analyzed. The development height of the top interface of each zone was determined. And the results were compared with the calculation results by the derivation formula of the double-end plugging segmental water injection method. The results show that the borehole resistivity method has strong resistance to the complex environment of the underground, and has good coupling with the coal-rock layer. The height of the "three-band" top interface determined by the difference of apparent resistivity is higher. The determinations by the deviation rate curve are as follows: The development height of the top of the falling zone is 29.6m, the development height of the top interface of the fracture zone is 47.8m, and the development height of the top of the curved zone is 71m. The results are similar to those of the double-ended plugging water injection, and the deviation rate can be clearly distinguished. The interface of the three belts improves the resolution of the height detection of the "three belts" top interface, and has a high promotion and practical value.

Key words： mine resistivity method deviation rate height of "three zones" top interface double-end plugging segmental water injection method

Received: 12 January 2019 Published: 25 October 2019

TD163

	Service

	E-mail this article
	Add to my bookshelf
	Add to citation manager
	E-mail Alert
	RSS
	Articles by authors
	Guo-Cai YAN

Cite this article:

Guo-Cai YAN. The mine drilling resistivity method used to determine the development height of the "three zones" top interface of the mining face[J]. Geophysical and Geochemical Exploration, 2019, 43(5): 1151-1156.

URL:

https://www.wutanyuhuatan.com/EN/10.11720/wtyht.2019.0023 OR https://www.wutanyuhuatan.com/EN/Y2019/V43/I5/1151

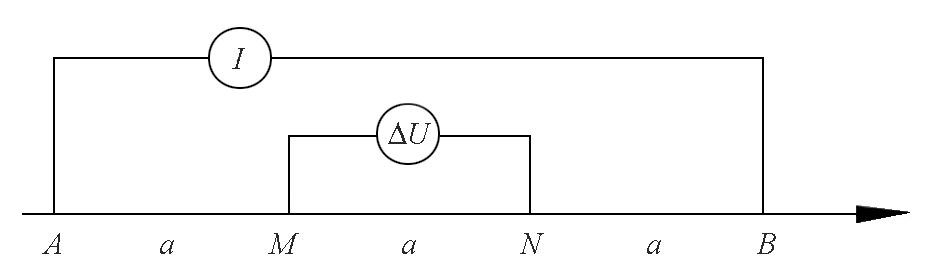

Schematic diagram of the Winner device

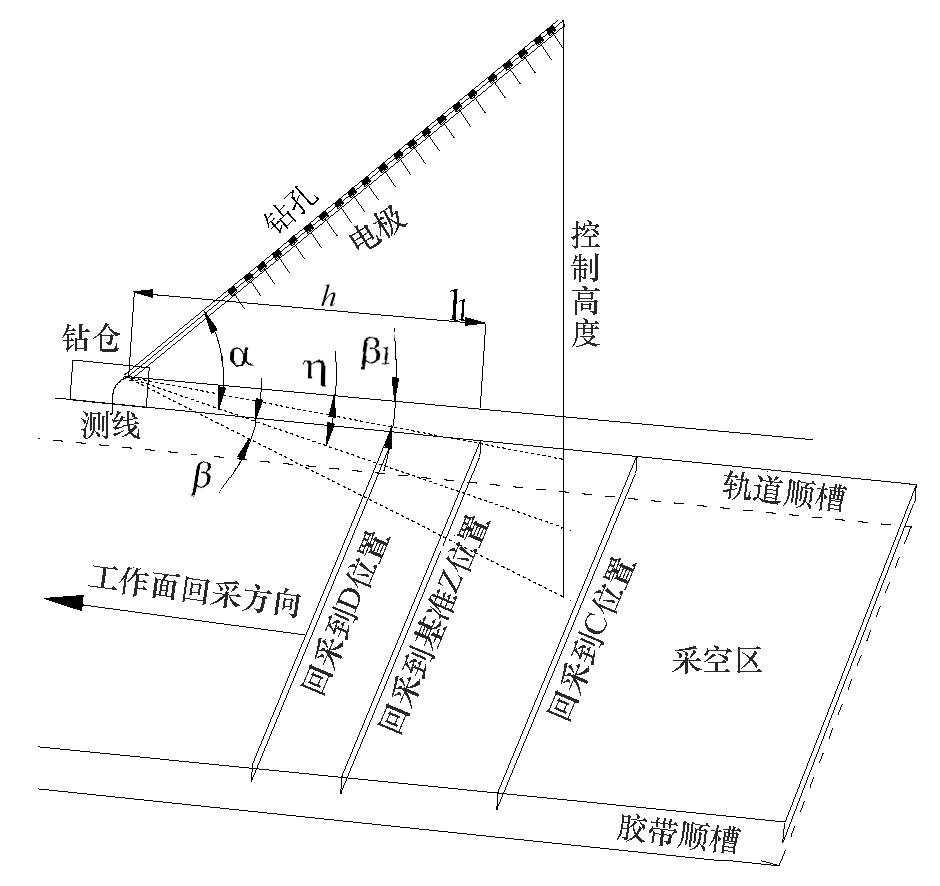

Stereoscopic line layout diagram of the drilling resistivity method

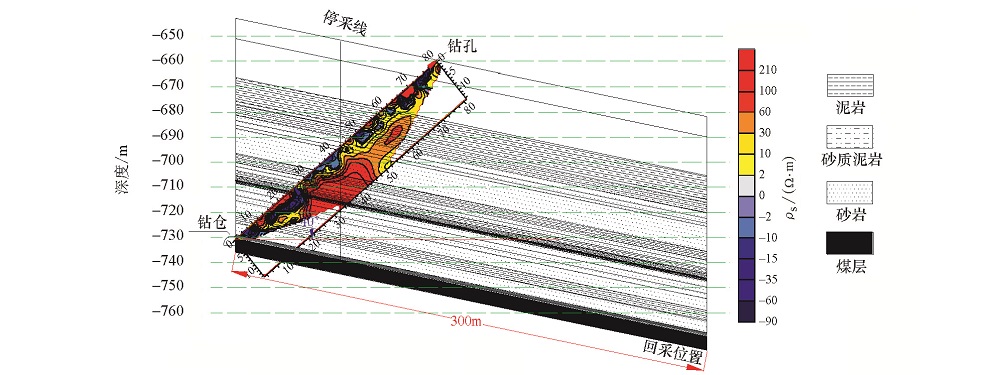

Sectional view of the apparent resistivity difference between the mining position at 300 m from the drill chamber and 200 m from the drill chamber

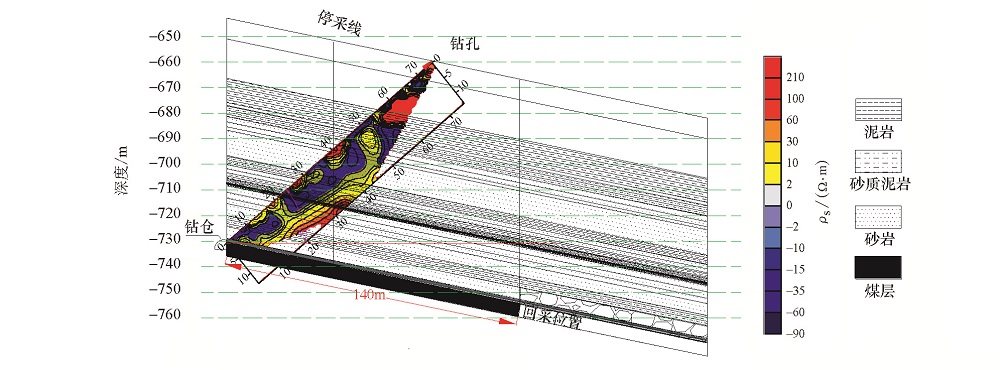

Sectional view of the apparent resistivity difference between the mining position at 140 m from the drill chamber and 200 m from the drill chamber

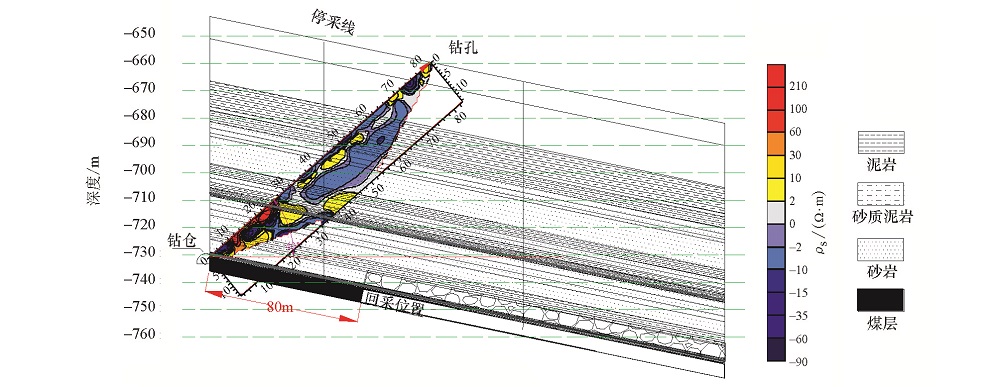

Sectional view of the apparent resistivity difference between the mining position at 80 m from the drill chamber and 200 m from the drill chamber

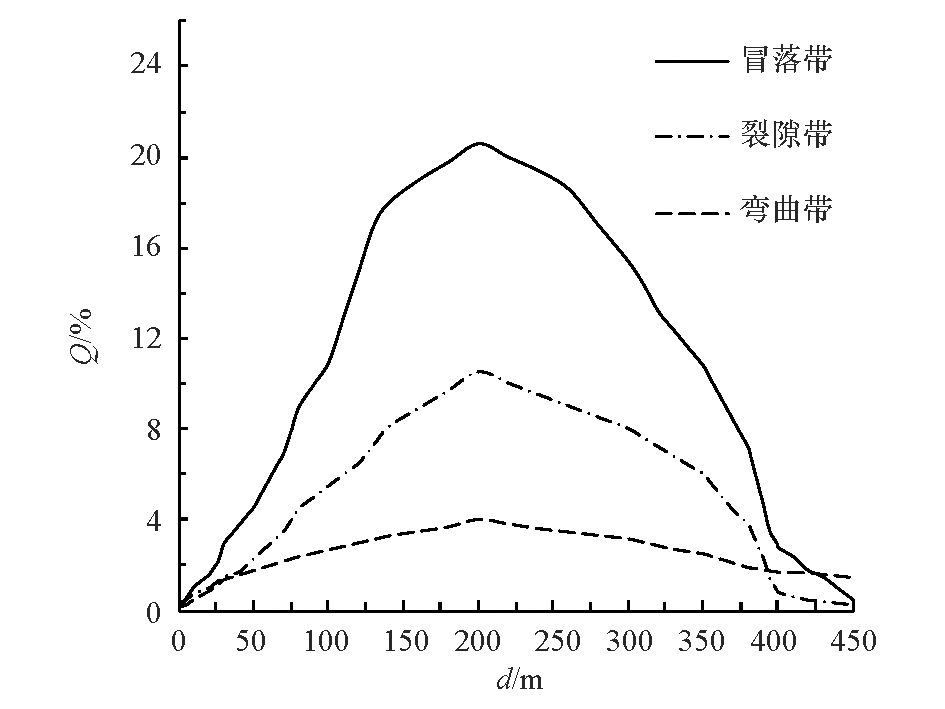

“Three-band” developmental dissociation rate curve of mining face

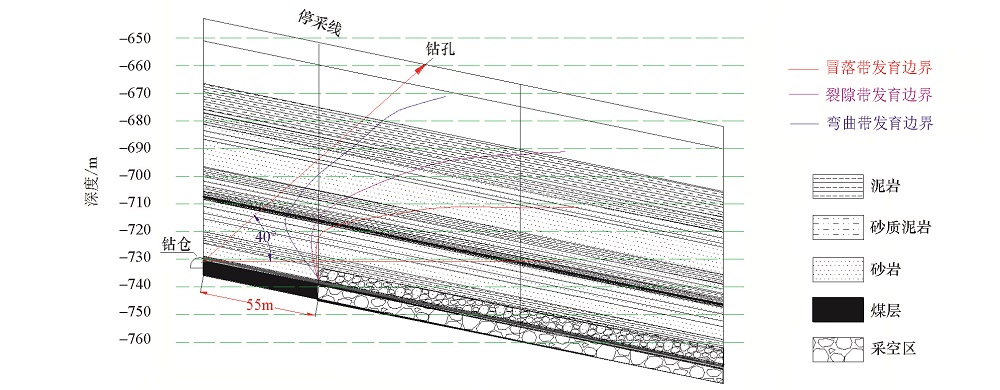

The height of the “three belts” top interface development

[1]	刘军 . 并行电法在倾斜厚煤层工作面“三带”探测中的应用[J]. 矿业安全与环保, 2018,5(3):102-107.
[1]	Liu J . Application of parallel electric method in the detection of “Three Belts” in working face of inclined thick coal seam[J]. Mining Safety & Environmental Protection, 2018,5(3):102-107.
[2]	葛为中 . 联合剖面法的一种资料整理解释方法[A]//中国地球物理学会勘探地球物理学术讨论会, 1983.
[2]	Ge W Z . A data sorting and interpretation method of joint section method[A]//Chinese Geophysical Society Exploration Geophysical Symposium, 1983.
[3]	汤井田, 张继锋, 冯兵 , 等. 井地电阻率法岐离率确定高阻油气藏边界[J]. 地球物理学报, 2007,50(3):926-931.
[3]	Tang J T, Zhang J F, Feng B , et al. Determining the boundary of high-resistivity reservoirs by well resistivity method[J]. Journal of Geophysics, 2007,50(3):926-931.
[4]	谢宏桥, 尹志勇, 汤洪志 , 等. 联合剖面歧离带变化率法应用研究[ C]//合肥:中国地球物理学会, 2009, 261-262.
[4]	Xie H Q, Yin Z Y, Tang H Z , et al. Application of the variation rate method of joint profile dissociation band[ C].Hefei:Chinese Geophysical Society, 2009, 261-262.
[5]	鲁建国, 李飞帆, 张新国 , 等. 深部厚冲积层下综放开采导水裂隙带高度实测[J]. 中国煤炭, 2017,43(11):60-63,68.
[5]	Lu J G, Li F F, Zhang X G , et al. Field measurement of the height of water flowing fractured zone in deep full-mechanized top coal caving mining face under thick alluvium[J]. China Coal, 2017,43(11):60-63, 68.
[6]	岳建华, 刘树才 . 矿井直流电法勘探[M]. 徐州: 中国矿业大学出版社, 2000.
[6]	Yue J H, Liu S C. Mine DC method exploration [M]. Xuzhou: China University of Mining and Technology Press, 2000.
[7]	尹增德 . 釆动覆岩破坏特征及其应用研究[D]. 青岛:山东科技大学, 2007.
[7]	Yin Z D . The characteristics of the failure of overlying strata and its application[D]. Qingdao: Shandong University of Science and Technology, 2007.
[8]	刘盛东, 吴荣新, 张平松 . 高密度电阻率法观测煤层上覆岩层破坏[J]. 煤炭科学技术, 2001,29(4):18-22.
[8]	Liu S D, Wu R X, Zhang P S . Observation of overburden damage in coal seams by high-density resistivity method[J]. Coal Science and Technology, 2001,29(4):18-22.
[9]	张平松, 刘盛东, 吴荣新 , 等. 采煤面覆岩变形与破坏立体电法动态测试[J]. 岩石力学与工程学报, 2009,28(9):1870-1875.
[9]	Zhang P S, Liu S D, Wu R X , et al. Dynamic test of deformation and failure of overburden strata by mining method[J]. Chinese Journal of Rock Mechanics and Engineering, 2009,28(9):1870-1875.
[10]	董春勇 . 网络并行电法在覆岩破坏动态监测中的应用[D]. 淮南:安徽理工大学, 2009.
[10]	Dong C Y . Application of network parallel electrical method in dynamic monitoring of overburden failure[D]. Huainan: Anhui University of Science and Technology, 2009.
[11]	周璇 . 采动条件下覆岩地电场响应特征研究[D]. 徐州:中国矿业大学, 2015.
[11]	Zhou X . Study on the response characteristics of overburden ground under mining conditions[D]. Xuzhou: China University of Mining and Technology, 2015.
[12]	梁运培, 文广才 . 顶板岩层“三带”划分的综合分析法[J]. 煤炭科学技术, 2000,28(5):39-42.
[12]	Liang Y P, Wen G C . A comprehensive analysis method for the “Three Zones” division of roof rock strata[J]. Coal Science and Technology, 2000,28(5):39-42.
[13]	张继锋, 冯兵, 汤井田 , 等. 岐离率在油气藏勘探中的应用研究[J]. 勘探地球物理进展, 2007,30(6):463-467.
[13]	Zhang J F, Feng B, Tang J T , et al. Application of Deviation Rate in Oil and Gas Reservoir Exploration[J]. Progress in Exploration Geophysics, 2007,30(6):463-467.
[14]	陈佩佩 , 等. 基于人工神经网络技术的综放导水裂隙带高度预计[J]. 煤炭学报, 2005,8(4):438-442.
[14]	Chen P P , et al. Prediction of the height of water-conducting fracture zone in fully mechanized cavities based on artificial neural network technology[J]. Journal of China Coal Society, 2005,8(4):438-442
[15]	煤炭科学研究总院北京开采研究所. 煤矿地表移动与覆岩破坏规律及其应用[M]. 北京: 煤炭工业出版社, 1981.
[15]	Beijing Research Institute of Coal Research Institute. The law of surface movement and overburden damage in coal mines and its application [M]. Beijing: Coal Industry Press, 1981.
[16]	邹海, 桂和荣, 陈兆炎 . 导水裂隙带高度预测途径探讨[J]. 中国煤炭地质, 1997,9(2):53-55.
[16]	Zou H, Gui H R, Chen Z Y . Discussion on the height prediction path of water conducting fracture zone[J]. Chinese Coal Geology, 1997,9(2):53-55.
[17]	付茂如, 张平松, 王大设 , 等. 矿井工作面底板水害综合探查技术研究[J]. 矿业安全与环保, 2013,40(2):92-95.
[17]	Fu M R, Zhang P S, Wang D S , et al. Study on comprehensive exploration technology of water damage in mine working face[J]. Mining Safety & Environmental Protection, 2013,40(2):92-95.
[18]	程久龙, 刘斌, 于师建 , 等. 覆岩破坏直流电场特征数值计算[J]. 计算物理, 1999,16(1):54-58.
[18]	Cheng J L, Liu B, Yu S J , et al. Numerical calculation of DC electric field characteristics of overburden failure[J]. Chinese Journal of Computational Physics, 1999,16(1):54-58.
[19]	于师建, 程久龙, 王玉和 . 覆岩破坏视电阻率变化特征研究[J].煤炭学报, 1999(5):457-460.
[19]	Yu S J, Cheng J L, Wang Y H . Study on the variation characteristics of apparent resistivity of overburden failure[J]. Journal of Coal, 1999(5):457-460.
[20]	李金峰 . 采动覆岩破坏电场特征及动态监测研究[D]. 北京:中国矿业大学, 2014.
[20]	Li J F . Research on the Electric Field Feature of the Mining Induced Overburden Failture and the Dynamic Monitoring[D]. Beijing:China University of Mining and Technology, 2014.
