The geoelectric structure characteristics and mineral prospecting of the Sigou rock mass in Middle Taihang Mountain |
Zhi-Zhao KONG |
Airborne Survey and Remote Sensing Center of Nuclear Industry, Shijiazhuang 050002,China |
|
|

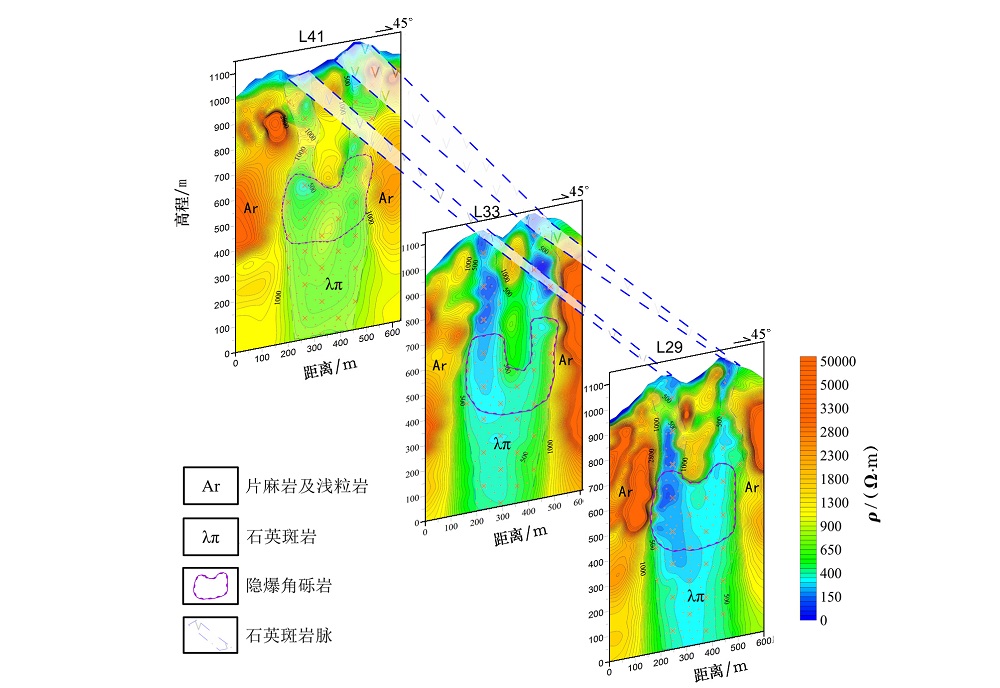

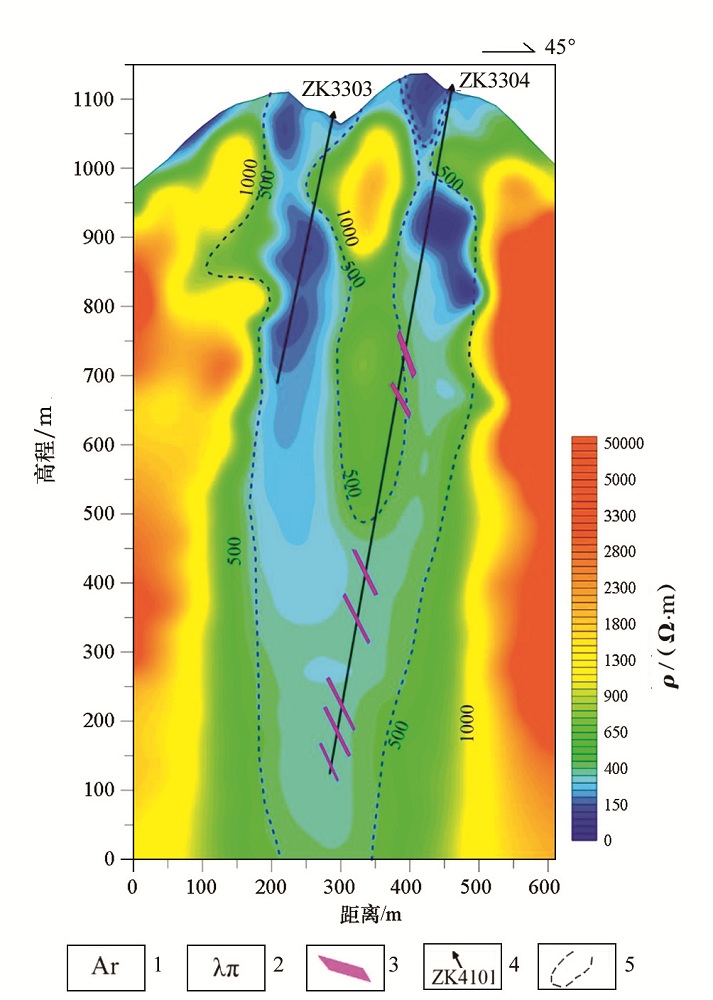

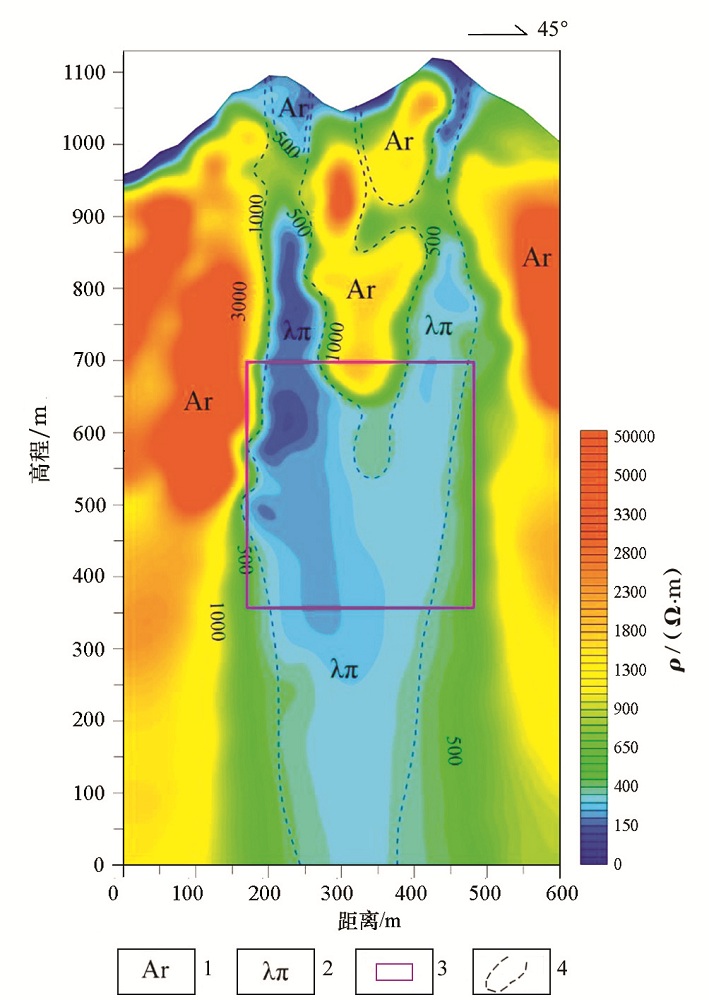

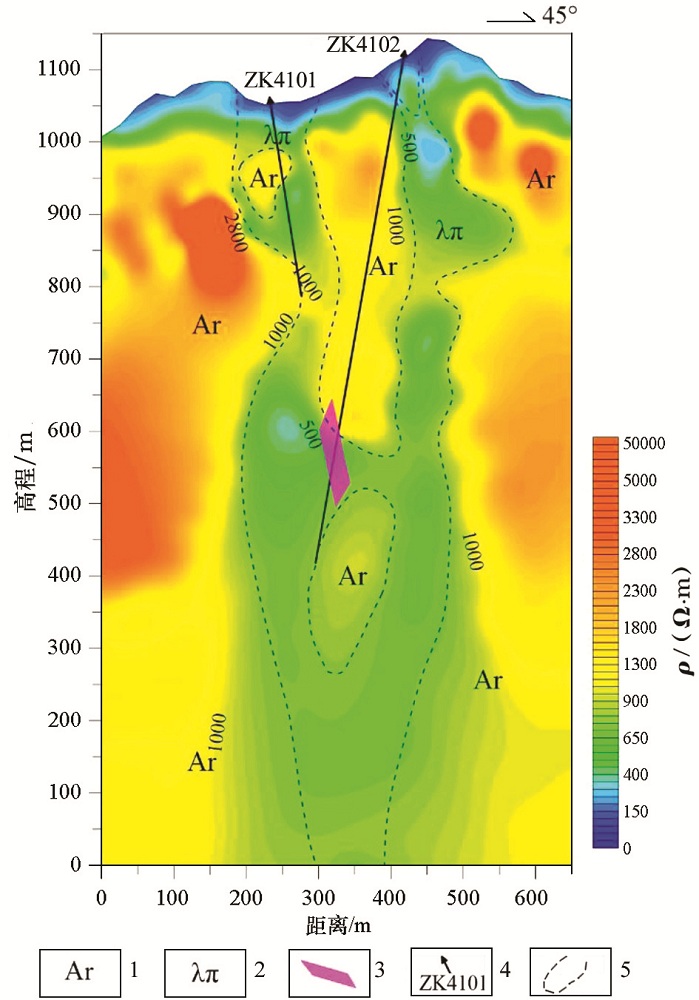

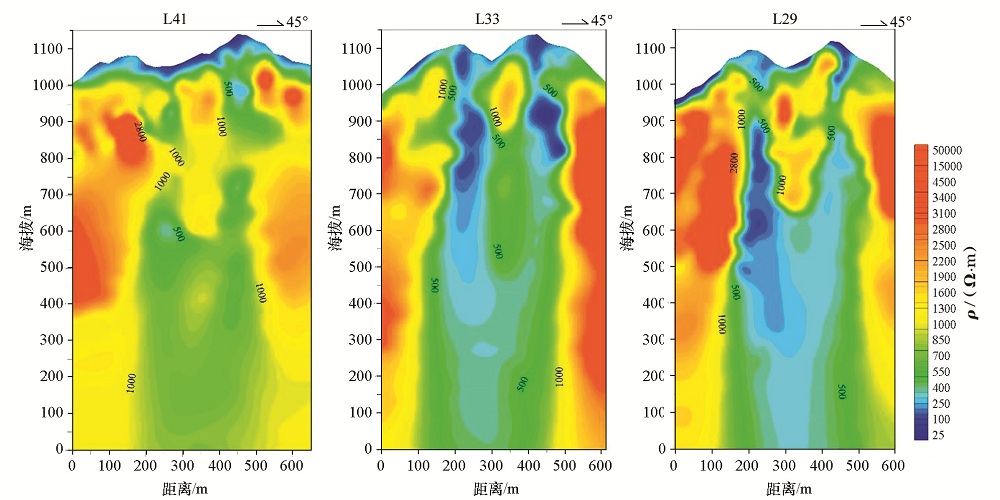

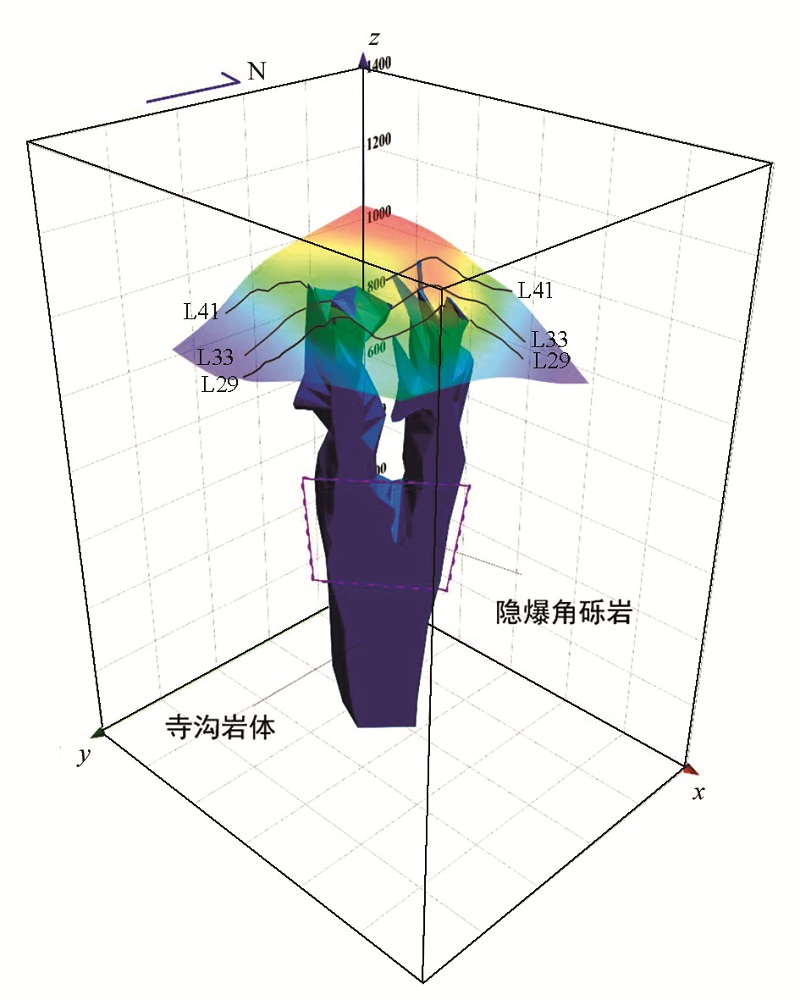

Abstract The Sigou rock mass is a Yanshanian acid rock mass in the middle of the Taihang Mountain and has the same formation period with the Mapeng rock mass. Lots of geological and geophysical work has been carried out in the past years, and porphyry crytptoexplosive breccia type silver and polymetallic sulfide deposits have been found. However, due to the uncertainty of the spatial distribution of the rock mass, the deep exploration prospect has been doubtful. In this paper, the author employed Audio Magnetotelluric (AMT) to divide the boundary of the rock mass based on obvious electrical differences from the surrounding rock, and drew the spatial distribution characteristics. It is believed that the electrical structure of the Sigou rock mass is mainly characterized by "Y" type low resistivity, with the upper part being exposed veins, and the lower part being hidden rock mass. The bifurcation compounding part of the "concave" low-resistance zone is favorable for the formation of cryptoexplosive breccia polymetallic sulfide deposits, whereas the high and low resistance gradient zone (inner zone) is the contact part between the rock mass and the surrounding rock, which is conducive to the formation of alteration belt type polymetallicl sulfide deposits.
|
Received: 14 December 2017
Published: 24 October 2018
|
|
|
|
|
|
|
|
|
岩性 | | | 备注 | 浅粒岩 | 718~8046 | 3704.5 | | 片麻岩 | 780~6475 | 2294.2 | | 石英斑岩 | 155~430 | 299.6 | 黄铁矿化发育 | 霏细岩 | 3.6~155.8 | 42.8 | 黄铁矿化发育 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
[1] |
河北省地质矿产局. 河北省北京市天津市区域地质志[M]. 北京: 地质出版社, 1989.
|
[2] |
陈超, 牛树银, 高银仓 , 等. 冀西麻棚地区金银多金属矿床区域成矿地质特征[J].黄金科学技术, 2012(3):10-17.
|
[3] |
刘伟, 戴塔根, 傅文杰 , 等. 冀西石湖金矿矿体赋存规律及深边部找矿前景[J]. 地质与勘探, 2007,43(3):25-30.
|
[4] |
孙文燕 . 太行山中段银钼成矿系统结构及其深部找矿远景[D].北京:中国地质大学(北京) , 2014.
|
[5] |
刘伟 . 冀西石湖金矿床地球化学特征、矿床成因及成矿预测研究[D].长沙:中南大学, 2007.
|
[6] |
傅文杰, 刘伟, 史永东 . EH-4电导率成像系统在探测构造深部延伸中的应用[J].甘肃冶金, 2008(1):22-24.
|
[7] |
李富, 王永华, 吴文贤 . EH-4电磁成像系统在隐伏构造探测中的应用[J]. 中国地质, 2009,36(6):1375-1381.
|
[8] |
郭新红, 邱崇涛, 杨明 . 音频大地电磁测深法在新疆阿尔玛勒煤矿采空区勘查中的应用[J]. 物探与化探, 2013,37(2):373-376.
|
[9] |
苗景春, 阮帅, 张悦 . 音频大地电磁测深法对正、逆断层的精细解释[J]. 物探与化探, 2013,37(4):681-686.
|
[10] |
高敬语, 谭嘉言, 朱占升 , 等. 音频大地电磁法在地下水质评价中的应用[J]. 物探与化探, 2013,37(5):895-898.
|
[11] |
姚伟 . 云南省兰坪县连城箐铜矿区高频大地电磁法(EH4)异常推断解释研究[D].昆明:昆明理工大学, 2013.
|
[12] |
邵陆森, 孟贵祥, 邓震 , 等. 新疆拉伊克勒克斑岩铜矿3D电性结构与找矿指示[J]. 地质与勘探, 2015,51(5):953-963.
|
[13] |
叶益信, 邓居智, 方根显 . 高频大地电磁测深(EH-4)在热储构造勘查中的试验研究——以抚州地热区为例[J]. 地质与勘探, 2011,47(4):649-653.
|
[14] |
乔宝强, 程纪星, 刘祜 . 音频大地电磁测深法与高精度磁法在江西河元背地区试验研究及效果[J]. 铀矿地质, 2013,29(2):104-111.
|
[15] |
徐贵来, 王华林, 赵瑞全 , 等. 铀资源勘查物化探方法最新进展及发展趋势[J]. 铀矿地质, 2013,29(6):344-351.
|
[16] |
杨学明, 苏永军, 杜东 , 等. 音频大地电磁法在海水入侵动态监测中的应用[J]. 物探与化探, 2013,37(2):301-305.
|
[17] |
刘国栋, 陈乐寿 . 大地电磁测深研究[M]. 北京: 地震出版社, 1984.
|
[18] |
陈小斌, 赵国泽, 詹艳 .MT资料处理与解释的Windows可视化集成系统[J].石油地球物理勘探, 2004, 39(s1):11-16+169.
|
[19] |
伍岳, 刘汉彬, 董秀康 . EH4电导率成像系统在砂岩型铀矿床上的应用研究[J]. 铀矿地质, 1998,22(1):32-37.
|
[20] |
陈小斌, 蔡军涛, 王立凤 , 等. 大地电磁资料精细处理和二维反演解释技术研究(四)——阻抗张量分解的多测点-多频点统计成像分析 [J]. 地球物理学报, 2014,57(6):1946-1957.
|
[21] |
孔志召, 赵璐, 艾虎 , 等. 阻抗张量分解技术在桂北地区AMT数据处理中的应用[J]. 物探与化探, 2014,38(5):1045-1050.
|
[22] |
孔志召, 山科社, 吴勇 , 等. 印模法在AMT数据处理中的改进与应用[J]. 物探与化探, 2015,39(2):416-420.
|
