Variation of modes of occurrence of elements in soil before and after the geo-electrochemical extraction in eolian sand covered area |
Bin-Bin SUN1,2, Dao-Ming ZENG1,2, Zhan-Yuan LIU1,2, Guo-Hua ZHOU1,2, Ling HE1,2 |
1. Institute of Geophysical and Geochemical Exploration, CAGS, Langfang 065000, China 2. Key Laboratory for Geochemical Exploration Technology, MLR, Langfang 065000, China |
|
|

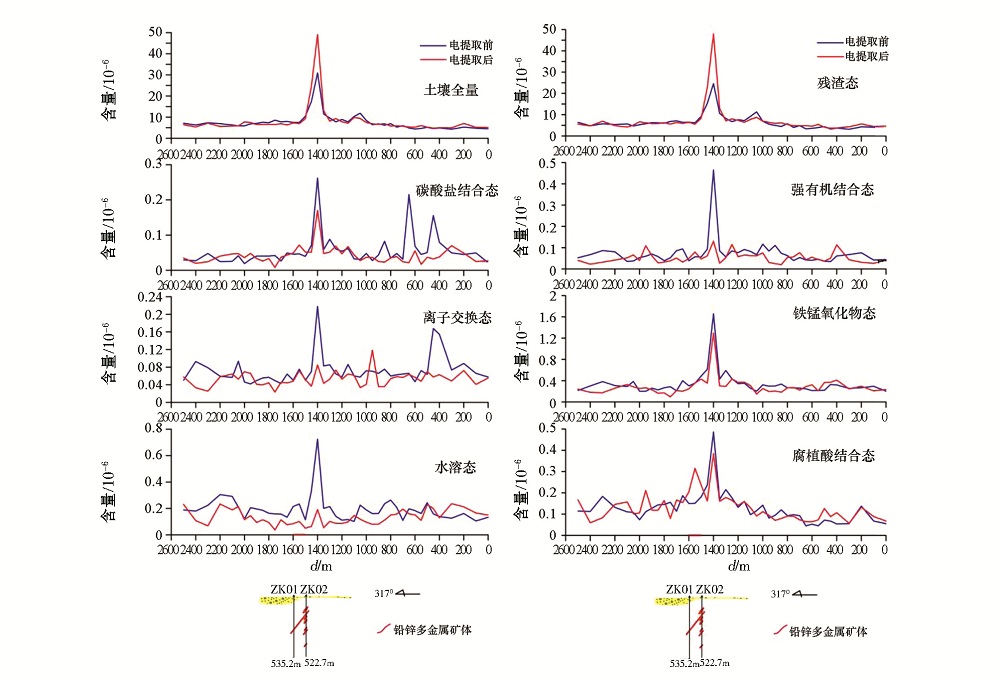

Abstract In this study, soil samples before and after geo-electrochemical extraction were collected along the fifth exploration line of the Luokedun lead-zinc polymetallic mining area. Total content and chemical speciation of 'seven steps method' were analyzed for 20 elements. Some conclusions have been reached: Elements extracted by geo-electrochemical process exist in a variety of phases in soil. The active phases including water soluble, exchangeable and carbonate bound phases are the mainly components, while micro-particles that exist in low active phases including residues can also be migrated and adsorbed by this process. Spatial distribution of element values of some active phases in soil appear to be highly consistent with spatial position of the orebody after geo-electrochemical extraction. Factors such as low depth transported overburden and orebody or mineralized body beneath the cover can lead to a significant increase of total content in soil for the majority of metal elements after the extraction process. Such phenomena indicate that the method of geo-electrochemistry has great applicability in the transported overburden area.
|
Received: 06 July 2017
Published: 04 June 2018
|
|
|
|
|
元素 | Au | Ag | As | Bi | Cd | Co | Cr | Cu | La | Mo | w前 | 0.73 | 62.9 | 7.76 | 0.176 | 77.5 | 4.96 | 27.5 | 8.96 | 17.2 | 0.390 | w后 | 0.65 | 84.1 | 8.17 | 0.231 | 102.1 | 6.06 | 28.4 | 11.5 | 20.4 | 0.472 | w后/w前 | 0.90 | 1.34 | 1.05 | 1.31 | 1.32 | 1.22 | 1.03 | 1.28 | 1.18 | 1.21 | 元素 | Ni | Pb | Sb | Se | Ti | U | Zn | Al2O3 | Fe2O3 | K2O | w前 | 11.4 | 18.4 | 0.479 | 0.116 | 2549 | 1.08 | 31.7 | 9.37 | 2.07 | 2.54 | w后 | 14.3 | 23.4 | 0.579 | 0.130 | 2588 | 1.30 | 38.6 | 9.17 | 2.15 | 2.62 | w后/w前 | 1.25 | 1.27 | 1.21 | 1.12 | 1.02 | 1.20 | 1.22 | 0.98 | 1.04 | 1.03 |
|
|
元素相态 | Au | Ag | As | Bi | Cd | Co | Cr | Cu | La | Mo | Ni | Pb | Sb | Se | Ti | U | Zn | Al | Fe | K | 水溶态 | 前 | 0.063 | 0.274 | 0.195 | 0.304 | 1.59 | 0.006 | 0.186 | 0.043 | 0.005 | 6.83 | 0.079 | 0.074 | 1.94 | 0.008 | 0.370 | 6.77 | 0.052 | 8.88 | 29.3 | 8.05 | | 后 | 0.077 | 0.507 | 0.131 | 0.472 | 2.07 | 0.006 | 0.196 | 0.055 | 0.004 | 6.70 | 0.038 | 0.095 | 3.09 | 0.008 | 0.312 | 4.76 | 0.127 | 9.35 | 31.8 | 8.65 | | 比 | 1.23 | 1.85 | 0.67 | 1.55 | 1.30 | 1.04 | 1.05 | 1.28 | 0.80 | 0.98 | 0.48 | 1.28 | 1.59 | 1.01 | 0.84 | 0.70 | 2.43 | 1.05 | 1.09 | 1.07 | 离子交 换态 | 前 | 0.080 | 0.758 | 0.073 | 0.434 | 5.21 | 0.116 | 0.264 | 0.101 | 0.011 | 11.0 | 0.145 | 0.040 | 1.30 | 0.005 | 0.215 | 7.68 | 0.196 | 10.7 | 4.89 | 95.0 | | 后 | 0.039 | 1.08 | 0.054 | 0.429 | 6.53 | 0.163 | 0.378 | 0.170 | 0.011 | 17.3 | 0.222 | 0.044 | 2.91 | 0.004 | 0.270 | 12.7 | 0.219 | 20.2 | 12.3 | 119 | | 比 | 0.49 | 1.43 | 0.74 | 0.99 | 1.26 | 1.41 | 1.43 | 1.68 | 0.93 | 1.57 | 1.54 | 1.12 | 2.24 | 0.87 | 1.25 | 1.66 | 1.11 | 1.89 | 2.51 | 1.26 | 碳酸盐 结合态 | 前 | 0.067 | 0.378 | 0.057 | 2.28 | 8.82 | 0.036 | 0.607 | 0.168 | 0.383 | 12.6 | 0.272 | 0.339 | 3.32 | 0.003 | 0.528 | 18.2 | 10.0 | 12.9 | 42.5 | 244 | | 后 | 0.073 | 0.434 | 0.042 | 2.95 | 13.9 | 0.048 | 0.752 | 0.214 | 0.579 | 13.8 | 0.377 | 0.465 | 4.50 | 0.002 | 0.793 | 28.5 | 6.97 | 19.4 | 10.5 | 278 | | 比 | 1.10 | 1.15 | 0.75 | 1.29 | 1.58 | 1.35 | 1.24 | 1.27 | 1.51 | 1.09 | 1.39 | 1.37 | 1.35 | 0.70 | 1.50 | 1.56 | 0.69 | 1.50 | 0.25 | 1.14 | 腐殖酸 结合态 | 前 | 0.206 | 0.654 | 0.127 | 6.03 | 7.33 | 0.623 | 0.285 | 0.619 | 2.30 | 37.5 | 0.546 | 0.78 | 15.2 | 0.003 | 50.4 | 42.3 | 3.72 | 220 | 206 | 67.4 | | 后 | 0.193 | 1.05 | 0.131 | 7.51 | 10.6 | 0.745 | 0.228 | 1.10 | 2.79 | 25.7 | 0.744 | 1.1 | 22.2 | 0.013 | 54.4 | 52.8 | 5.89 | 220 | 202 | 67.0 | | 比 | 0.94 | 1.61 | 1.03 | 1.25 | 1.44 | 1.20 | 0.80 | 1.78 | 1.21 | 0.68 | 1.36 | 1.42 | 1.46 | 4.18 | 1.08 | 1.25 | 1.58 | 1.00 | 0.98 | 1.00 | 铁锰氧 化物结 合态 | 前 | 0.120 | 8.28 | 0.339 | 6.11 | 7.30 | 1.21 | 1.21 | 0.500 | 1.63 | 5.04 | 2.21 | 2.25 | 3.93 | 0.012 | 6.46 | 20.6 | 2.00 | 1342 | 573 | 164 | | 后 | 0.082 | 13.3 | 0.291 | 8.56 | 12.0 | 1.58 | 1.39 | 0.715 | 2.09 | 11.4 | 2.99 | 3.33 | 5.20 | 0.011 | 7.63 | 35.6 | 3.13 | 1497 | 682 | 183 | | 比 | 0.68 | 1.60 | 0.86 | 1.40 | 1.65 | 1.30 | 1.15 | 1.43 | 1.28 | 2.27 | 1.35 | 1.48 | 1.32 | 0.89 | 1.18 | 1.73 | 1.56 | 1.11 | 1.19 | 1.12 | 强有机 结合态 | 前 | 0.467 | 4.00 | 0.074 | 11.9 | 3.79 | 0.488 | 2.27 | 0.690 | 0.601 | 38.1 | 1.48 | 1.15 | 13.7 | 0.023 | 40.7 | 34.4 | 1.40 | 966 | 530 | 183 | | 后 | 0.391 | 6.74 | 0.053 | 17.5 | 5.01 | 0.561 | 2.25 | 0.819 | 0.725 | 36.9 | 1.66 | 1.36 | 11.9 | 0.021 | 40.8 | 38.2 | 2.10 | 926 | 457 | 176 | | 比 | 0.84 | 1.69 | 0.72 | 1.47 | 1.32 | 1.15 | 0.99 | 1.19 | 1.21 | 0.97 | 1.12 | 1.18 | 0.87 | 0.89 | 1.00 | 1.11 | 1.50 | 0.96 | 0.86 | 0.96 | 残渣态 | 前 | 10.4 | 48.2 | 6.49 | 145 | 42.1 | 2.37 | 21.7 | 6.71 | 11.7 | 269 | 6.42 | 13.5 | 443 | 0.052 | 2235 | 920 | 14.5 | 47096 | 12664 | 20426 | | 后 | 9.27 | 61.7 | 7.33 | 181 | 48.9 | 2.58 | 21.7 | 7.81 | 12.5 | 328 | 7.08 | 15.1 | 509 | 0.061 | 2282 | 1026 | 19.4 | 45855 | 12720 | 20382 | | 比 | 0.89 | 1.28 | 1.13 | 1.25 | 1.16 | 1.09 | 1.00 | 1.17 | 1.07 | 1.22 | 1.10 | 1.12 | 1.15 | 1.17 | 1.02 | 1.12 | 1.34 | 0.97 | 1.00 | 1.00 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
[1] |
孙彬彬, 刘占元, 周国华 . 地电化学方法技术研究现状及发展趋势[J]. 物探与化探, 2015,39(1):16-21.
|
[2] |
雷斯Ю·C . >地电化学勘探法[M]. 张肇元, 崔霖沛,译.北京:地质出版社, 1986.
|
[3] |
孙彬彬, 刘占元, 周国华 . 固体载体型元素提取器研制[J]. 物探与化探, 2011,35(3):375-378.
|
[4] |
康明, 罗先熔 . 地电化学方法的改进及应用效果[J]. 地质与勘探, 2003,39(5):63-66.
|
[5] |
Tessier A, Campbell P G C, Bisson M . Sequential extraction procedure for the speciation of particulate trace metals[J]. Analytical Chemistry, 1979,51(7):844-851.
|
[6] |
Quevauviller, Ure A, Muntau H, et al . Improvement of analytical measurements within the BCR-programme: Single and sSequential extraction procedures applied to soil and sediment analysis[J]. International Journal of Environmental Analytical Chemistry, 2006,51(1):129-134.
|
[7] |
DD2005-03生态地球化学评价样品分析技术要求(试行)[S].
|
[8] |
刘文长, 马玲, 刘洪青 , 等. 生态地球化学土壤样品元素形态分析方法研究[J]. 岩矿测试, 2005,24(3):181-188.
|
[9] |
陈亚东, 孙彬彬, 刘占元 , 等. 地电化学提取有效性及提取条件实验——以半干旱草原风成沙浅覆盖景观区为例[J]. 物探与化探, 2015,39(5):1008-1012.
|
[10] |
孙彬彬, 刘占元, 周国华 . 固体载体型元素提取器研制[J]. 物探与化探, 2011,35(3):375-378.
|
[11] |
刘妹, 顾铁新, 史长义 , 等. 我国主要土壤类型元素地球化学形态成分标准物质研制[J]. 物探与化探, 2008,32(5):492-496.
|
[12] |
程志中, 王学求, 刘占元 . 非常规化探方法技术研究[R]. 中国地质科学院地球物理地球化学勘查研究所, 2006.
|
[13] |
陈寿根, 白欣红 . 关于聚氨酯泡沫塑料对纳克量金的吸附性能的探讨[J]. 有色矿冶, 1988,4:54-57.
|
[14] |
薛光 . 泡沫塑料在金的分析与测试中的应用[J]. 黄金地质科技, 1989,2:77-86.
|
[15] |
严洪泽, 孙彬彬, 徐进力 , 等. 灰化法与微波消解法处理地电化学泡塑样品的分析效果对比研究[J]. 岩矿测试, 2016,35(3):59-66.
|
[16] |
严洪泽, 陈海杰, 孙彬彬 , 等. 湿法消解预处理地电化学泡塑样品有效性研究[J]. 岩矿测试, 2017,36(5):510-518.
|
[17] |
孙彬彬, 张学君, 刘占元 , 等. 地电化学异常形成机理初探[J]. 物探与化探, 2015,39(6):1183-1187.
|
