| Application of aeromagnetic and airborne TEM refined data processing in skarn type lead-zinc ore in Galaiaoyi, Heilongjiang Province |
| Lin ZHU1,2, Cong ZHAO1,2,3, Ji-Shuang DING4, Min-Zhong JIANG1,2, Yan LUO1,2, Li-Hong PENG1,2, Yuan-Li NING1,2, You OUYANG1,2 |
1. Airborne Survey and Remote Sensing Center of Nuclear Industry,Shijiazhuang 050002,China
2. Key Laboratory of Uranium Resources Geophysical Exploration Technology,China Nuclear Industry Group Company,Shijiazhuang 050002,China
3. School of Geophysics and Measurement-control Technology,East China University of Technology,Nanchang 330013,China
4. Geological Survey Institute of Heilongjiang Province, Haerbin 150036, China |
|
|
|
|

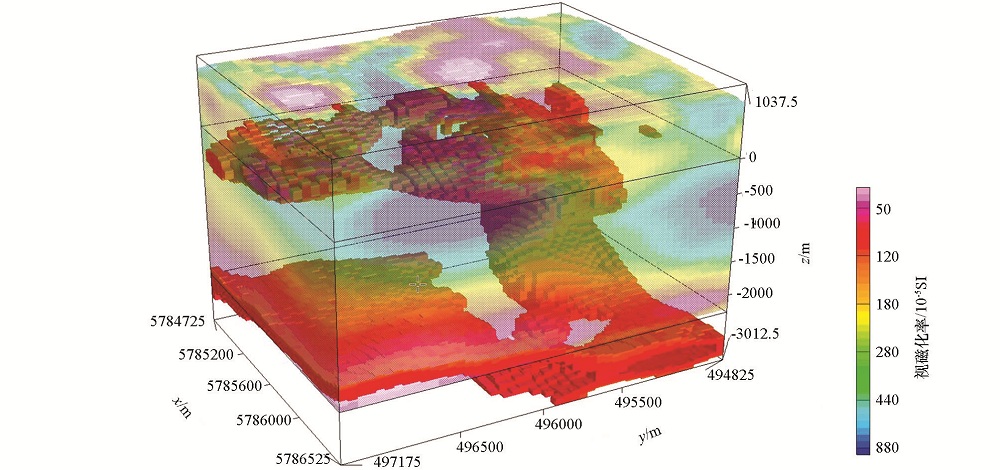

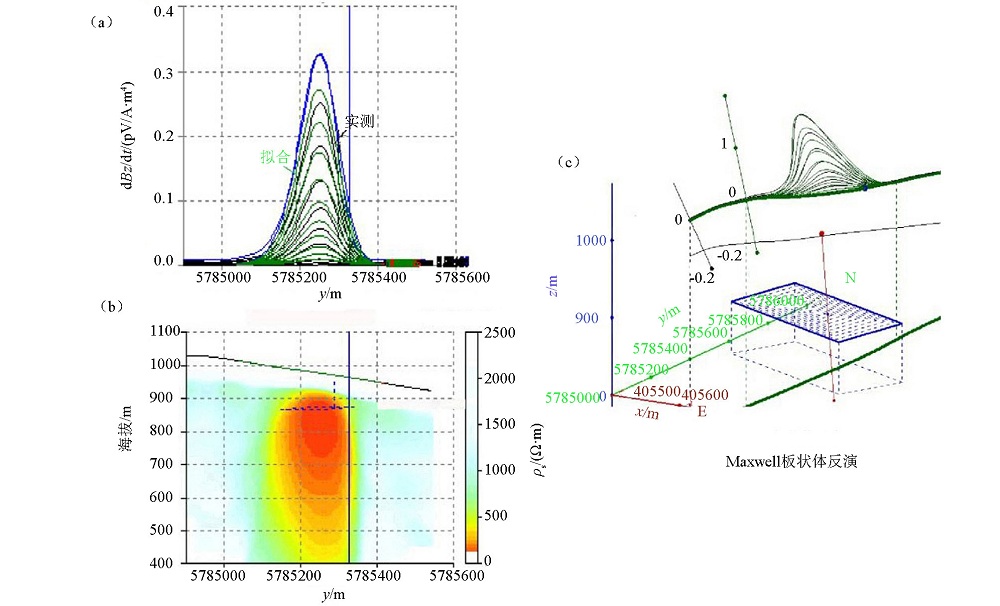

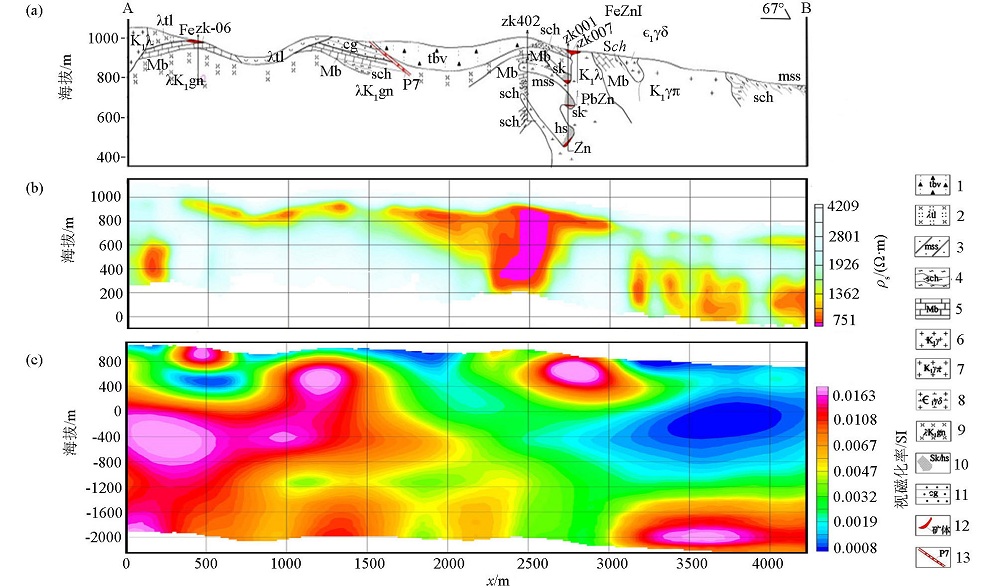

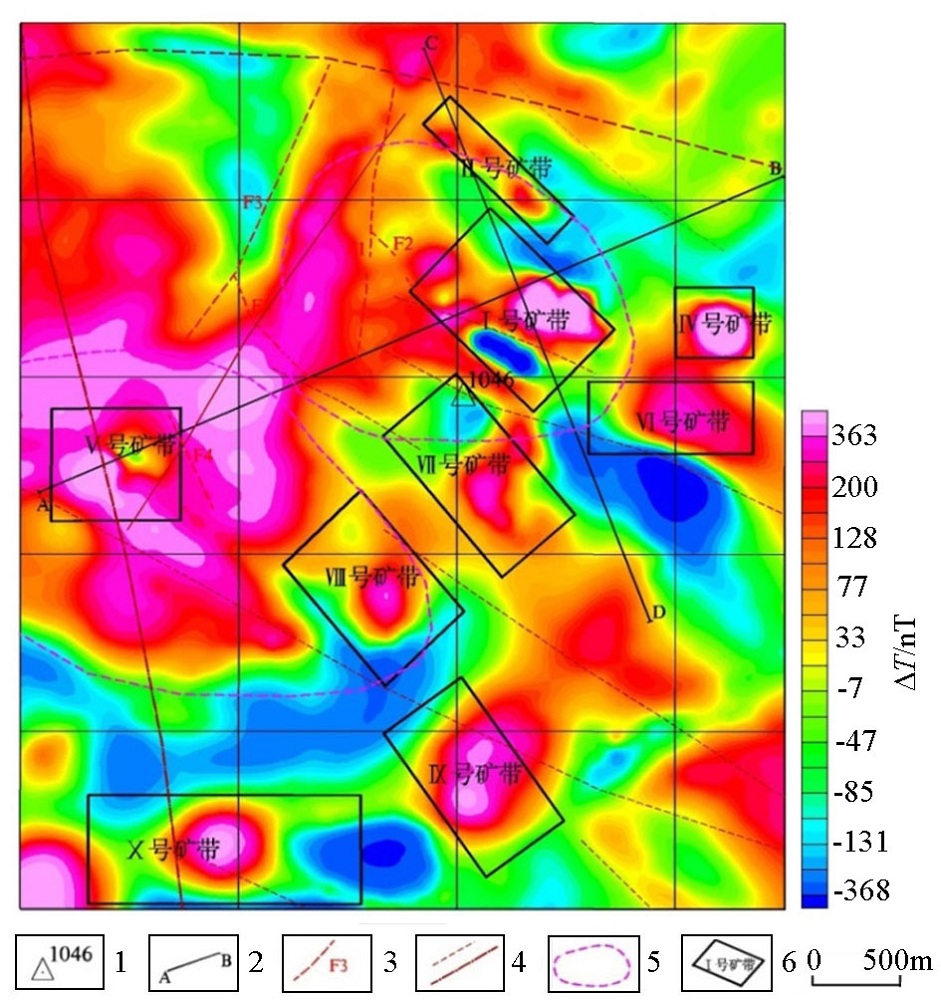

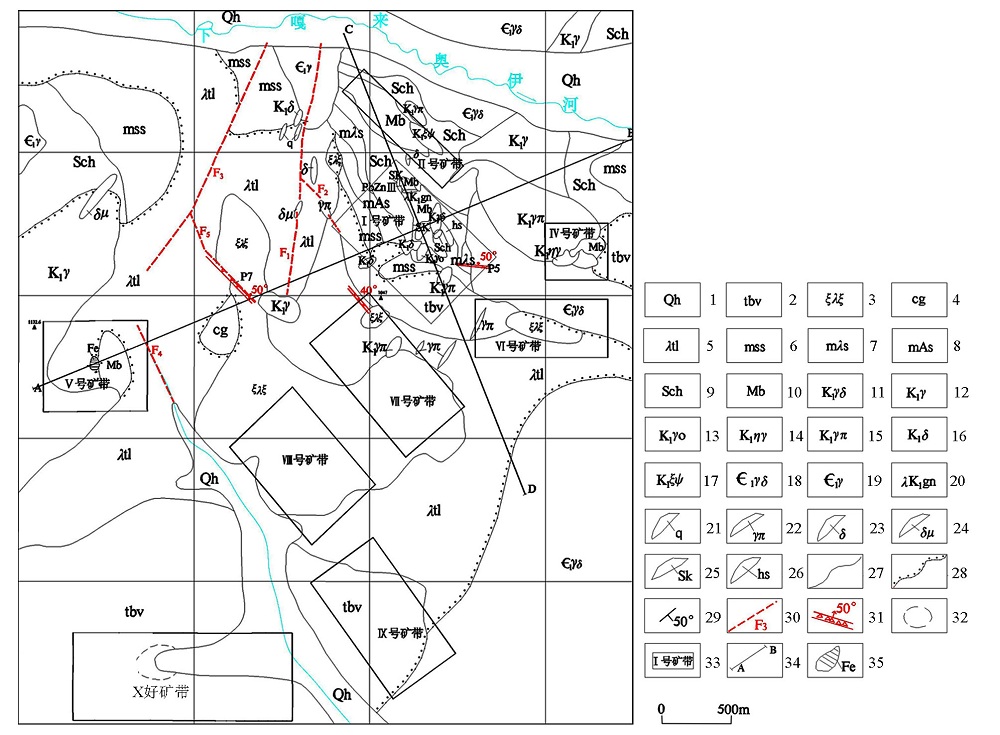

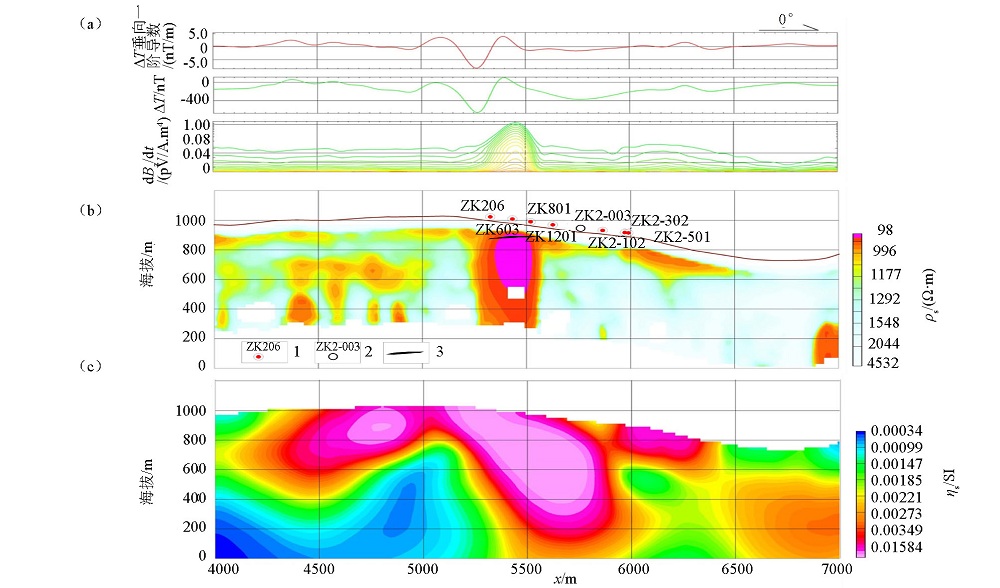

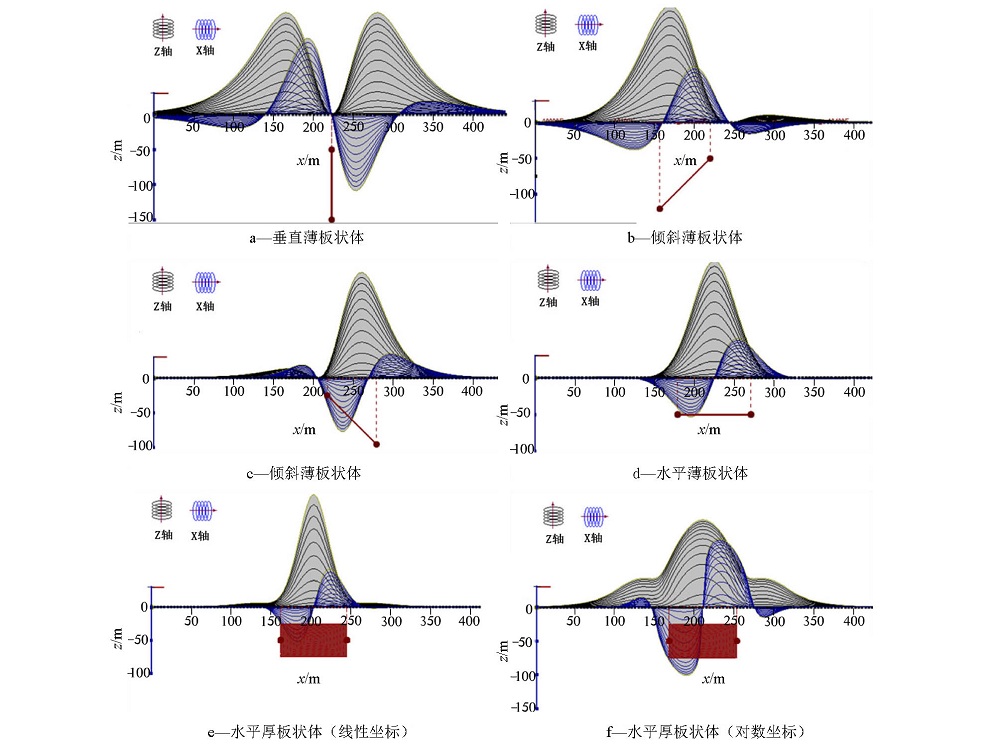

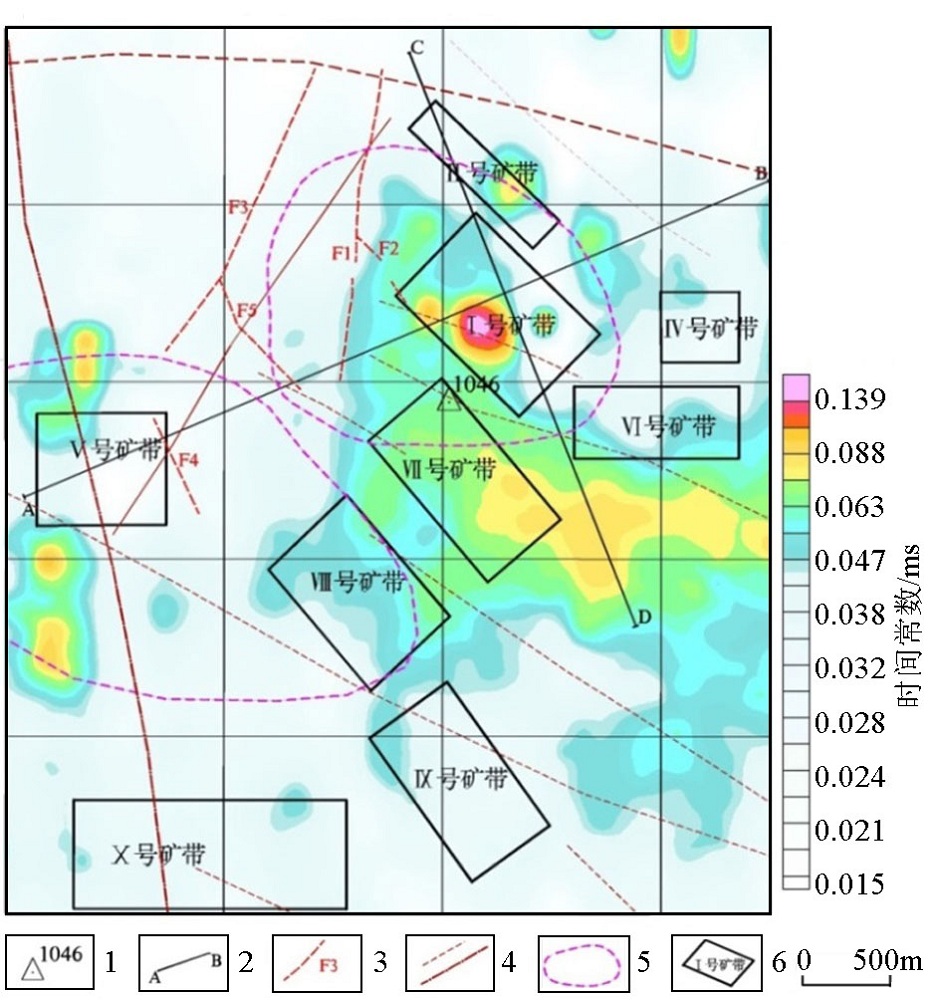

Abstract This paper introduces the refineddata processing of magnetization vector inversion and Maxwell plate inversion, and takes the skarn type lead-zinc mine in Galaiaoyi area of Heilongjiang province as an example, summed up a set of data processing, analysis and interpretation of the idea that the magnetization vector inversion with the apparent resistivity profile can analyze the metallogenic environment, analysis and extraction of ore caused by abnormal, and then use Maxwell has a plate-like inversion of the abnormal lot to simulate the distribution of the orebody (low-resistance) in the ground, thus guiding the drilling and laying, and the test results in the known mining area are better.
|
|
Received: 09 May 2017
Published: 24 October 2018
|
|
|
|
|
|
|
|
|
|
|
|
| 岩性 | 极化率ηs/% | 电阻率ρs/(Ω·m) | 备注 | | 算术平均值 | 几何平均值 | | 铅锌矿石 | 8.0 | 1348.6 | | | 中粗粒花岗岩 | 1.64 | 7936.5 | | | 中细粒花岗岩 | 1.51 | 5964.0 | | | 酸性熔岩(硅质岩) | 1.45 | 5303.2 | | | 石英岩 | 1.83 | 15638.7 | | | 富石英花岗岩 | 1.63 | 27044.7 | | | 细粒辉长岩 | 2.26 | 26022.1 | | | 中细粒黑云母花岗岩 | 1.54 | 19771.2 | | | 英安岩 | 1.45 | 8375.6 | | | 花岗闪长岩 | 1.91 | 9677.4 | | | 正长岩 | 2.30 | 8456.7 | | | 角砾岩 | 1.55 | 5854.6 | | | 石英闪长岩 | 2.04 | 17436.5 | | | 中细粒花岗岩 | 1.80 | 12325.7 | | | 酸性凝灰熔岩 | 1.18 | 2212.3 | |
|
|
|
| 岩性 | 参数 | 最大值 | 最小值 | 平均值 | 备注 | | 花岗斑岩 | J/(10-3 A/m) | 1351.9 | 78.4 | 315.76 | | | K/(10-5 SI) | 1967.5 | 185.2 | 585.9 | | 晶屑凝灰熔岩 | J/(10-3 A/m) | 3273.6 | 35.4 | 372.6 | | | K/(10-5 SI) | 2083.9 | 231.3 | 907.4 | | 闪长岩 | J/(10-3 A/m) | 3915.6 | 314.8 | 878.6 | | | K/(10-5 SI) | 2624.7 | 952.8 | 2178 | | 变质砂岩 | J/(10-3 A/m) | 623.9 | 6.9 | 95.3 | | | K/(10-5 SI) | 379.9 | 79.5 | 170.9 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| [1] |
Robert G E, Barry D W, Ian N M . Inversion of Magnet Data from Remanent and Induced Sources[C]// 22 nd International Geophysical Conference and Exhibition, Brisbane, Australia, 2012.
|
| [2] |
Ian N M, Robert E . Magnetic Vector Inversion, a simple approach to the challenge of varying direction of rock magnetization[C]// 23 rd International Geophysical Conference and Exhibition, Melbourne, Australia, 2013.
|
| [3] |
Ian N M, Robert G E . Quantitative Magnetization Vector Inversion[C]// 25th International Geophysical Conference and Exhibition, Adelaide, Australia, 2016.
|
| [4] |
李泽林 . 强剩磁条件下此数据三维反演研究[D].北京:中国地质大学(北京), 2014.
|
| [5] |
王妙月, 底青云, 许琨 , 等. 磁化强度矢量反演方程及二维模型正反演研究[J]. 地球物理学报, 2004,47(3):528-534.
|
| [6] |
武广 . 大兴安岭北部区域成矿背景与有色、贵金属矿床成矿作用[D]. 长春:吉林大学, 2005.
|
| [7] |
鲍希波 . 黑龙江省呼中—塔源地区铅锌多金属成矿远景综合分析[D]. 长春:吉林大学, 2012.
|
| [8] |
王学刚 . 黑龙江省塔源地区铜多金属矿地质特征及找矿方向探讨[D]. 长春:吉林大学, 2012.
|
| [9] |
吕久俊, 李秀珍, 胡远满 , 等. 呼中自然保护区多年冻土活动层厚度的影响因子分析[J]. 生态杂志, 2007,26(9):1369-1374.
|
| [10] |
江民忠, 李怀渊, 骆燕 , 等. 黑龙江省大兴安岭成矿带航电方法试验成果报告[R]. 核工业航测遥感中心, 2016.
|
| [11] |
杨昆林, 褚向飞, 岳竞峰 , 等. 黑龙江省大兴安岭呼中区下嘎来奥伊河上游铅锌多金属矿Ⅰ号、Ⅱ号、Ⅳ号矿带勘探报告[R]. 黑龙江省地球物理勘察院, 2015.
|
| [12] |
吕长生, 杨昆林, 褚向飞 , 等. 黑龙江省大兴安岭呼中区下嘎来奥伊河上游铅锌多金属矿Ⅰ号、Ⅳ号矿带详查报告[R]. 黑龙江省地球物理勘察院, 2010.
|
| [13] |
杨春城, 韩革命, 杨亚斌 . 高精度重、磁测量在大兴安岭找矿工作中的应用[J]. 地球物理学进展, 2013,28(3):1472-1482.
|
| [14] |
殷长春, 张博, 刘云鹤 , 等. 航空电磁勘查技术发展现状及展望[J]. 地球物理学报, 2015,58(8):2637-2653.
|
| [15] |
骆燕, 曾阳, 石岩 , 等. 航空瞬变电磁法在火山岩型块状硫化物矿区的试验[J]. 物探与化探, 2014,38(4):840-845.
|
| [16] |
骆燕, 江民忠, 宁媛丽 , 等. 不同类型低阻异常航电时间常数的特征分析[J]. 物探与化探, 2016,40(5):991-997.
|
| [17] |
Yan L, Lin Z, Zhao Z , et al. Application prospects of VTEM helicopter time-domain electromagnetics in China[C]// International workshop on gravity, electrical & magnetic methods and their applications, Chengdu, China, 2015: 285-288.
|
| [18] |
李怀渊, 张景训, 江民忠 , 等. 航空时间域电磁法测量系统VTEM应用效果分析[J]. 地质论评, 2015,61(s#):665-666.
|
| [19] |
Annan P . Airborne EM-Lessons learnt and future opportunities[C]// 13 th SAGA Biennial Conference and Exhibition, and 6 th International AEM Conference and Exhibition Conference proceedings , 2013: 36-37.
|
| [20] |
Vallée M A, Smith R S, Keating R . Metalliferous mining geophysics-State of the art after a decade in the new millennium[J]. Geophysics, 2011, 76:W31-W50.
|
| [21] |
Airborne geophysical Surveys, inner data[R].Geotech Ltd, 2014.
|
| [22] |
王兴春, 武军杰, 邓晓红 , 等. 三套国外TEM软件正反演结果对比[J]. 物探与化探, 2012,36(3):507-510.
|
| [23] |
周桃生, 刘百祥 . 基于大定源回线的薄板导体响应正演模拟研究[J]. 山东煤炭科技, 2015,1:124-126.
|
| [24] |
苏艳平, 薛国强, 周楠楠 , 等. 板状体瞬变电磁正演计算系统[J]. 物探与化探, 2012,36(s#):133-136.
|
| [25] |
Prikhodko A .Geo TEM resistivity depth imaging(RDI)[R].Geotech Ltd., 2011.
|
| [26] |
Meju M A . Short Note: A simple method of transient electromagnetic data analysis[J].Geophysics, 1998,63:405-410.
|
| [27] |
Prikhodko A .Geo TEM time constant(TAU) analysis[R].Geotech Ltd., 2010.
|
