| The application of translation invariant wavelet de-noising method with a modified threshold to denoising in magnetotelluric sounding |
| Xiao-Ling CAO1,2,3, Liang-Jun YAN1,2, Qing-Li CHEN1,2 |
1. Key Laboratory of Exploration Technologies for Oil and Gas Resources in Ministry of Education,Yangtze university,Wuhan 430100,China
2. Hubei Cooperation Innovation Center of Unconventional Oil and Gas,Wuhan 430100,China
3. School of Information and Mathematics,Yangtze university,Jingzhou 434023,China |
|
|
|
|
Abstract In the process of measuring electric field and magnetic field components,due to interference from geological factors,power frequency,human activities,and other external factors as well as the observation system,there often exist many kinds of noises in actual data,which affect the computing of apparent resistivity and phase and the subsequent forward and inversion work.In order to improve the processing effect,the authors applied the TI wavelet denoising method based on improved threshold to the denoising of magnetotelluric signals on the basis of the existing fast algorithm.By using the denoising method,not only the noise can be removed effectively,but also the original shape of signal can be preserved at a large extent.After dealing with the measured magnetotelluric signal data by this method,the authors detected that the denoising method can make the mutation phenomenon under effective control and decrease,and furthermore it improves significantly the quality of time series,apparent resistivity curve and phase curve,thus it has a good denoising effect for magnetotelluric signal.
|
|
Received: 03 May 2017
Published: 04 June 2018
|
|
|
|
|
|
|
|
|

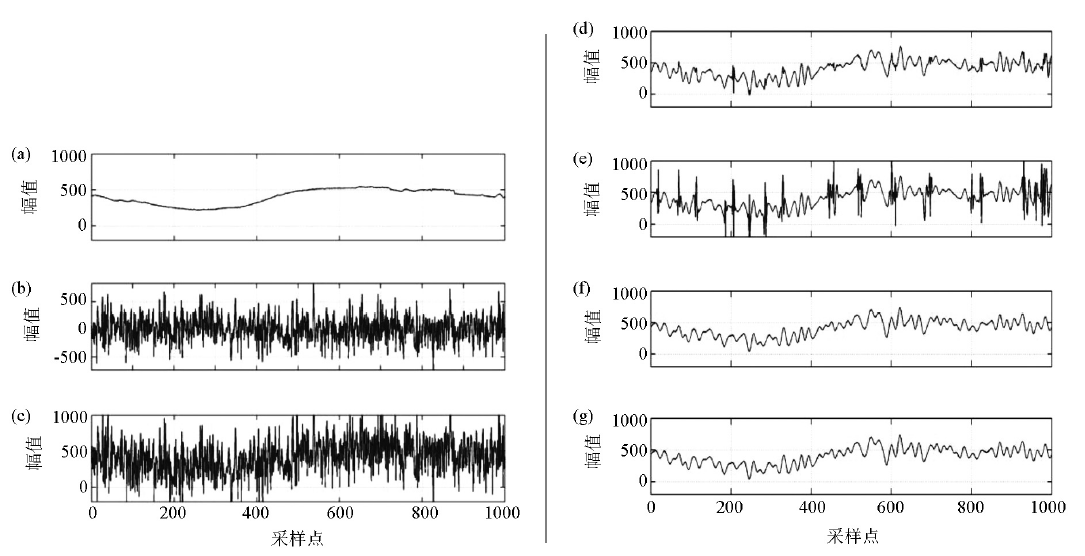

| 信噪比 | 1 dB | 2 dB | 5 dB | 10 dB | 20 dB | | 软阈值去噪 | 9.69 | 10.69 | 14.13 | 18.78 | 28.48 | | 硬阈值去噪 | 5.72 | 6.66 | 11.29 | 16.41 | 26.25 | | 原始的TI去噪 | 10.25 | 11.00 | 14.56 | 19.87 | 29.00 | | 改进的TI去噪 | 10.88 | 11.42 | 14.98 | 20.31 | 29.91 |
|
|
|
| 信噪比 | 1 dB | 2 dB | 5 dB | 10 dB | 20 dB | | 软阈值去噪 | 136.87 | 123.45 | 82.13 | 48.08 | 15.73 | | 硬阈值去噪 | 216.34 | 194.14 | 113.87 | 63.18 | 20.36 | | 原始的TI去噪 | 128.40 | 117.70 | 78.18 | 42.40 | 14.78 | | 改进的TI去噪 | 127.10 | 116.91 | 77.82 | 41.89 | 14.12 |
|
|
|
| 信噪比 | 1 dB | 2 dB | 5 dB | 10 dB | 20 dB | | 原始的TI去噪时间/s | 0.07 | 0.03 | 0.03 | 0.03 | 0.03 | | 改进的TI去噪时间/s | 0.03 | 0.02 | 0.02 | 0.02 | 0.02 |
|
|
|
|
|
|

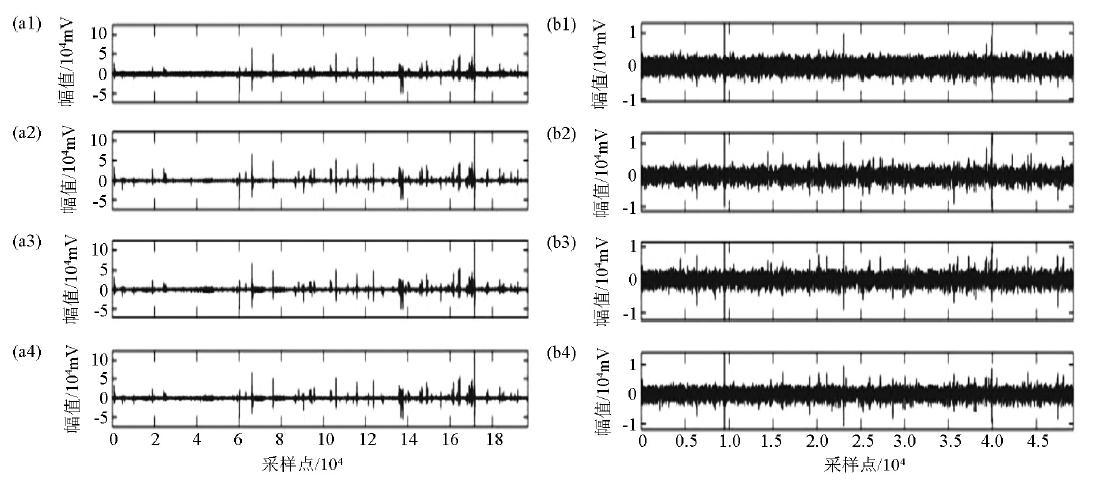

| 参数 | 最小值 | 最大值 | 均值 | 方差 | 能量 | | 去噪前 | -7.187×104 | 1.255×105 | 2.613 | 4.603×106 | 8.396×1011 | | 去噪后(haar) | -6.569×104 | 1.197×105 | 2.613 | 2.164×106 | 3.947×1011 | | 去噪后(sym8) | -6.655×104 | 1.191×105 | 2.613 | 2.265×106 | 4.131×1011 | | 去噪后(db6) | -6.630×104 | 1.178×105 | 2.613 | 2.223×106 | 4.054×1011 |
|
|
|
| 参数 | 最小值 | 最大值 | 均值 | 方差 | 能量 | | 去噪前 | -1.046×104 | 1.308×104 | -3.715 | 1.753×106 | 7.992×1010 | | 去噪后(haar) | -8.369×103 | 9.487×103 | -3.715 | 4.513×105 | 2.058×1010 | | 去噪后(sym8) | -8.452×103 | 1.034×104 | -3.715 | 7.113×105 | 3.244×1010 | | 去噪后(db6) | -8.481×103 | 9.931×103 | -3.715 | 6.992×105 | 3.189×1010 |
|
|
|
|
|
|
| 参数 | 最小值 | 最大值 | 均值 | 方差 | 能量 | | 去噪前 | -1.054×104 | 1.296×104 | -2.875 | 1.724×106 | 8.479×1010 | | 去噪后(haar) | -8.188×103 | 9.777×103 | -2.875 | 7.118×105 | 3.502×1010 | | 去噪后(sym8) | -8.221×103 | 1.059×104 | -2.875 | 1.087×106 | 5.347×1010 | | 去噪后(db6) | -8.251×103 | 1.018×104 | -2.875 | 1.065×106 | 5.240×1010 |
|
|
|
| 参数 | 最小值 | 最大值 | 均值 | 方差 | 能量 | | 去噪前 | -7.185×104 | 1.253×105 | 1.878 | 4.203×106 | 8.271×1011 | | 去噪后(haar) | -6.605×104 | 1.198×105 | 1.878 | 2.223×106 | 4.375×1011 | | 去噪后(sym8) | -6.702×104 | 1.196×105 | 1.878 | 2.349×106 | 4.624×1011 | | 去噪后(db6) | -6.671×104 | 1.184×105 | 1.878 | 2.304×106 | 4.534×1011 |
|
|
|
|
|
|

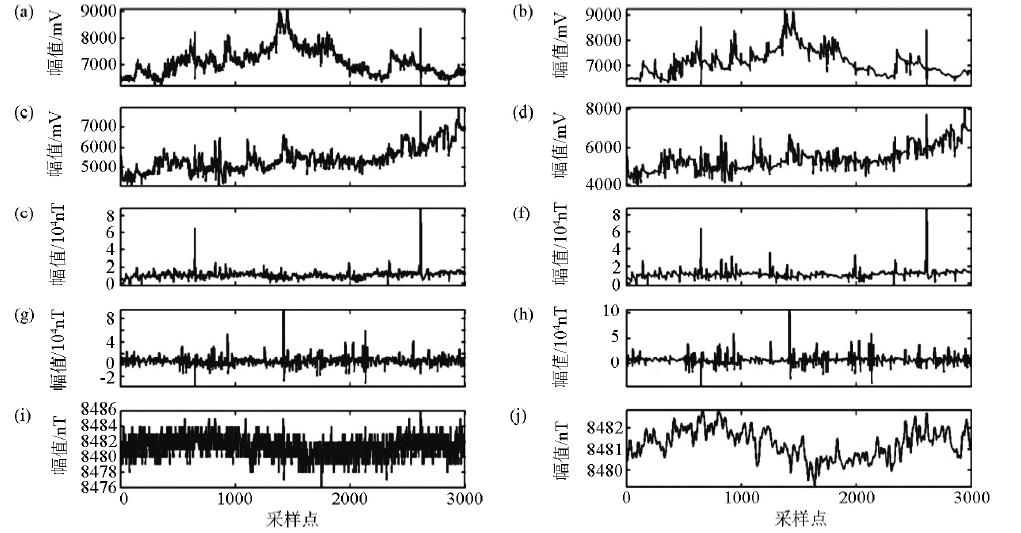

| 相关系数 | Ex | Ey | Hx | Hy | Hz | | 软阈值去噪法 | 0.786 | 0.798 | 0.813 | 0.802 | 0.610 | | 硬阈值去噪法 | 0.614 | 0.601 | 0.671 | 0.625 | 0.596 | | 本文方法 | 0.835 | 0.844 | 0.878 | 0.859 | 0.662 |
|
|
|
|
|
|

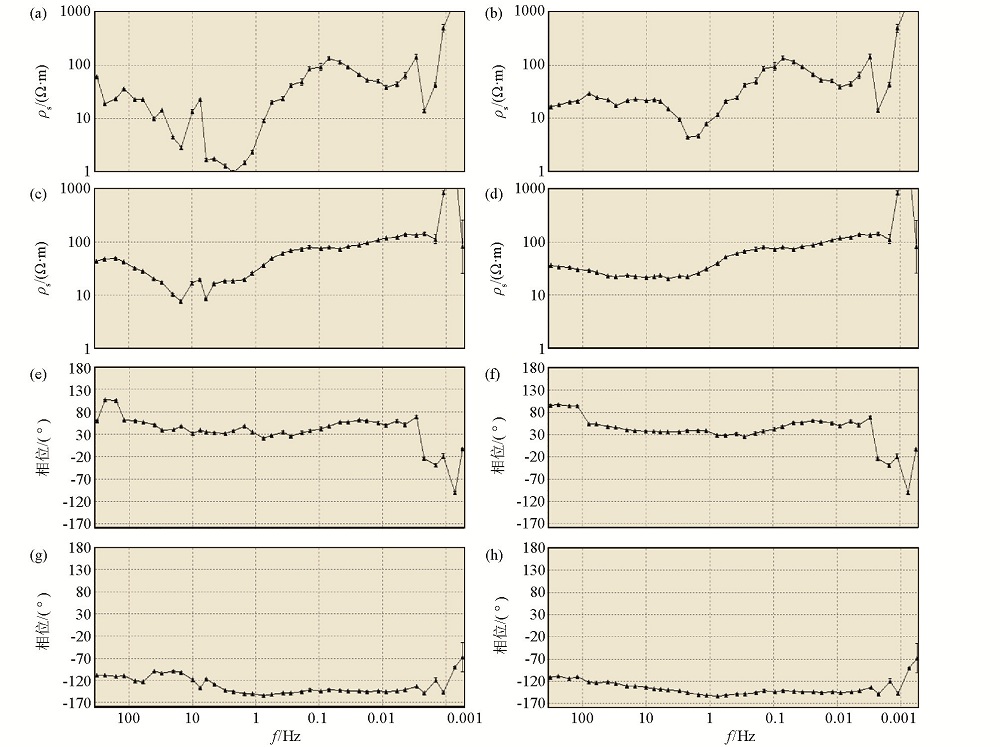

| [1] |
陈乐寿, 王光愕 , 著.大地电磁测深法[M]. 北京: 地质出版社, 1990.
|
| [2] |
可控源音频大地电磁法[M]可控源音频大地电磁法[M]. 何继善, 等编译. 长沙: 中南工业大学出版社, 1990.
|
| [3] |
刘国栋, 邓前辉 . 电磁方法研究与勘探[M]. 北京: 地震出版社, 1993.
|
| [4] |
魏文博 . 我国大地电磁测深新进展及瞻望[J]. 地球物理学进展, 2002,17(2):245-254.
|
| [5] |
Kavfman A A, Keller G V . The magnetotelluric sounding method[J]. Elesvier, 1981: 595-598.
|
| [6] |
孙洁, 晋光文 . 大地电磁测深资料的噪声干扰[J]. 物探与化探, 2000,24(2):119-127.
|
| [7] |
考夫曼, 凯勒 . 大地电磁测深法[M]. 北京: 地质出版社, 1987.
|
| [8] |
汤井田, 何继善 . 可控源音频大地电磁法及其应用[M]. 长沙: 中南大学出版社, 2005.
|
| [9] |
王书明, 王家映 . 大地电磁信号统计特征分析[J]. 地震学报, 2004,26(6):669-674.
|
| [10] |
王书明, 王家映 . 关于大地电磁信号非最小相位性的讨论[J]. 地球物理学进展, 2004,19(2):216-221.
|
| [11] |
陈知富, 邓居智, 陈辉 , 等. 基于小波变换的大地电磁信号去噪研究[J]. 工程地球物理学报, 2012,9(6):732-737.
|
| [12] |
何兰芳, 王绪本 . 应用小波分析提高MT资料信噪比[J]. 成都理工大学学报:自科版, 1999,26(3):299-302.
|
| [13] |
Trad D O, Travassos J M . Wavelet filtering of magnetotelluric data[J]. Geophysics, 2000,65(2):482-491.
|
| [14] |
胡玉平, 鲍光淑, 敬荣中 . 一种改善MT低频数据质量的方法及其应用[J]. 地质与勘探, 2002,38(3):46-48.
|
| [15] |
严家斌, 刘贵忠, 柳建新 . 小波变换在天然电磁场信号时间序列处理中的应用[J]. 地质与勘探, 2008,44(3):75-78.
|
| [16] |
范翠松, 李桐林, 王大勇 . 小波变换对MT数据中方波噪声的处理[J]. 吉林大学学报:地球科学版, 2008,38(s1):61-63.
|
| [17] |
蔡剑华, 李晋 . 基于频率域小波去噪的大地电磁信号工频干扰处理[J]. 地质与勘探, 2015,51(2):353-359.
|
| [18] |
蔡剑华, 肖晓 . 基于小波自适应阈值去噪的MT信号处理方法[J]. 地球物理学进展, 2015,30(6):2433-2439.
|
| [19] |
Coifman R R, Donoho D L . Translation-invariant de-noising[J]. Neuroimage, 1995,103(2):125-150.
|
| [20] |
Lang M, Guo H, Odegard J E , et al. Noise reduction using an undecimated discrete wavelet transform[J]. IEEE Signal Processing Letters, 1996,3(1):10-12.
|
| [21] |
Nason G P, Silverman B W . The stationary wavelet transform and some statistical applications[M]. New York:Wavelets and Statistics, 1995: 918-926.
|
| [22] |
Walden A T, Cristan A C . Matching pursuit by undecimated discrete wavelet transform for non-stationary time series of arbitrary length[J]. Statistics and Computing, 1998,8(3):205-219.
|
| [23] |
Berkner K, Wells Jr R O . Smoothness estimates for soft-threshold de-noising via translation-invariant wavelet transforms[J]. Applied & Computational Harmonic Analysis, 2002,12(1):1-24.
|
| [24] |
潘泉, 孟晋丽, 张磊 , 等. 小波滤波方法及应用[M]. 北京: 清华大学出版社, 2005.
|
| [25] |
王亚, 吕新华, 王海峰 . 一种改进的小波阈值降噪方法及Matlab实现[J]. 微计算机信息, 2006,22(6):259-261.
|
| [26] |
戴朝华, 朱云芳, 陈维荣 . 一种新的小波消噪阈值选取方法[J]. 组合机床与自动化加工技术, 2005(6):33-35.
|
| [27] |
何世彪, 杨士中 . 3σ准则在小波消噪中的应用[J]. 重庆大学学报, 2002,25(12):58-61.
|
| [28] |
康金钟, 康志伟 . 基于平移不变的小波变换去噪快速算法[J]. 微电子学与计算机, 2005,22(9):24-26.
|
| [29] |
陈政琦 . 基于平移不变小波快速算法的电力通信消噪方法研究[J]. 中国电业:技术版, 2012(3):10-13.
|
| [30] |
谷小红, 侯迪波, 周泽魁 . 基于部分平移不变的小波去噪方法研究[J]. 仪器仪表学报, 2005,26(S1):164-165.
|
