The application of pre-stack inversion based on seismic waveform indicator to the prediction of compact and thin oil-bearing sand layer |
Xiong ZHANG1, Ben-Jian ZHANG2,3, Hong LIANG1, Min XU1, Dong-Jun ZHANG1, Yi ZENG1 |
1. BGP Southwest Geophysical Company,CNPC,Chengdu 610213,China 2. PetroChina Southwest Oil and Gas Field Branch Northwest Sichuan Gas Field,Jiangyou 621700,China 3. School of Geoscience and Technology,South-West Petroleum University,Chengdu 610500,China |
|
|

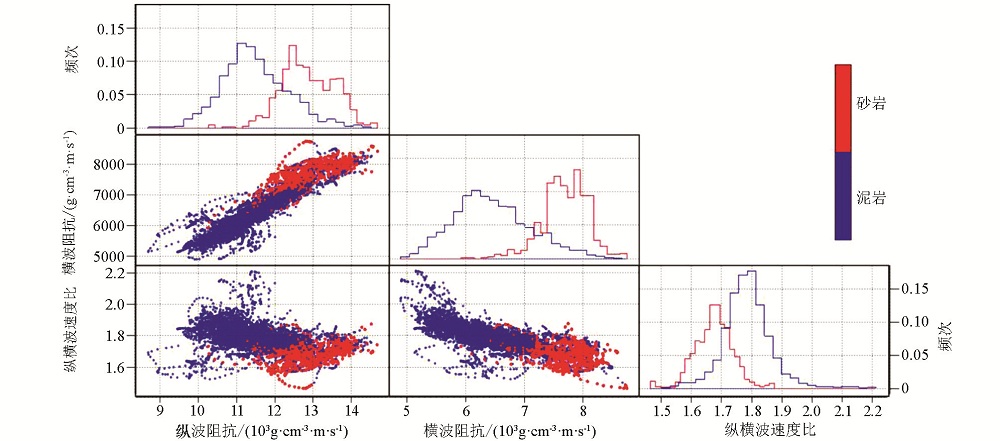

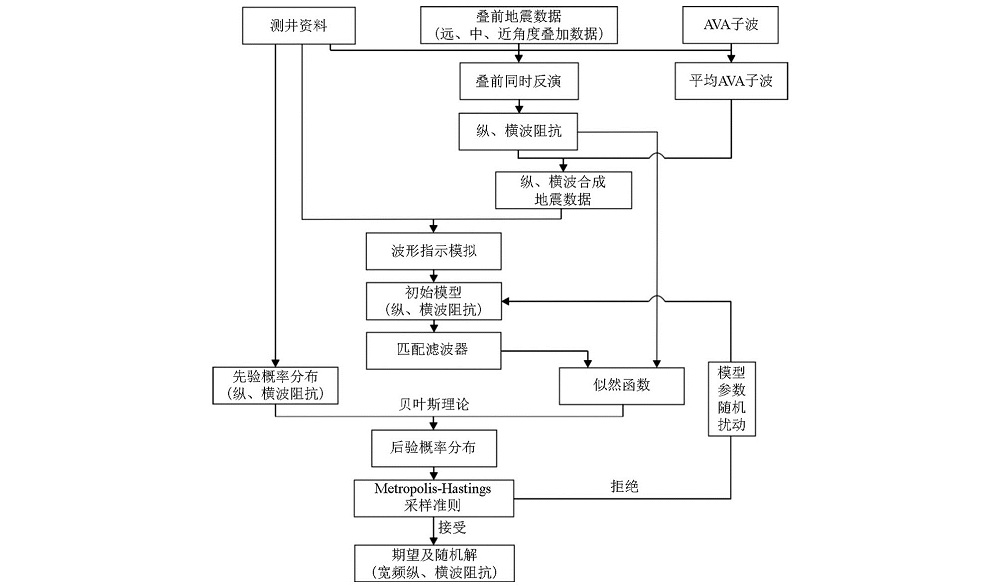

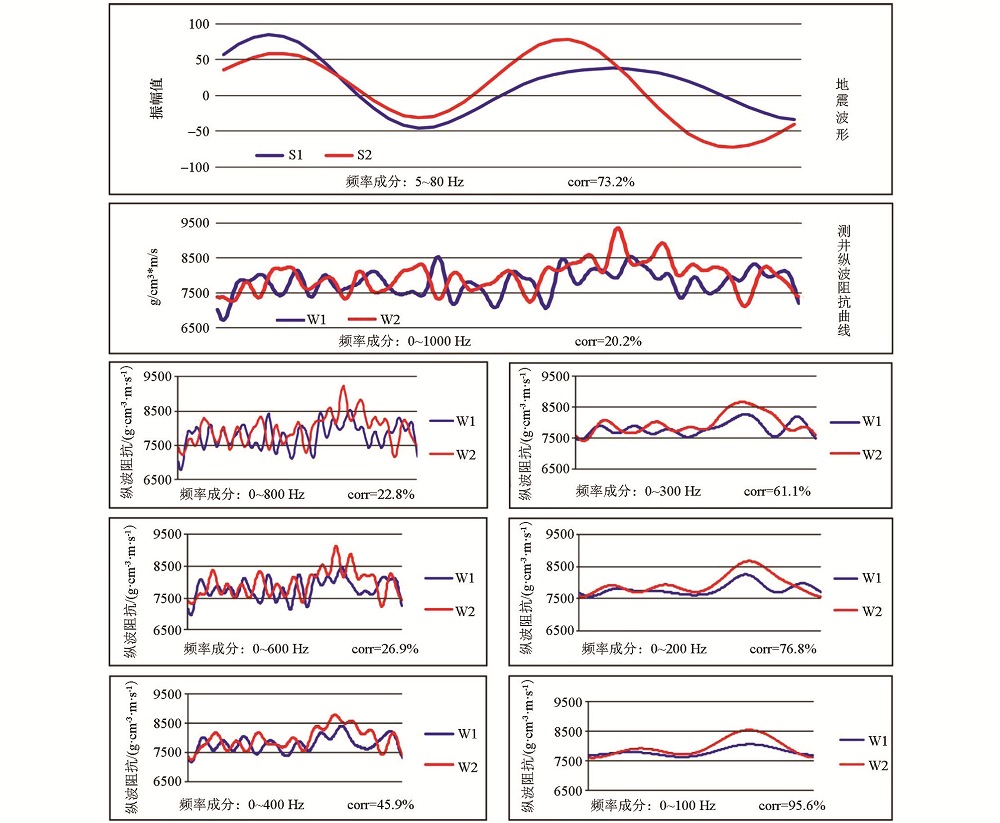

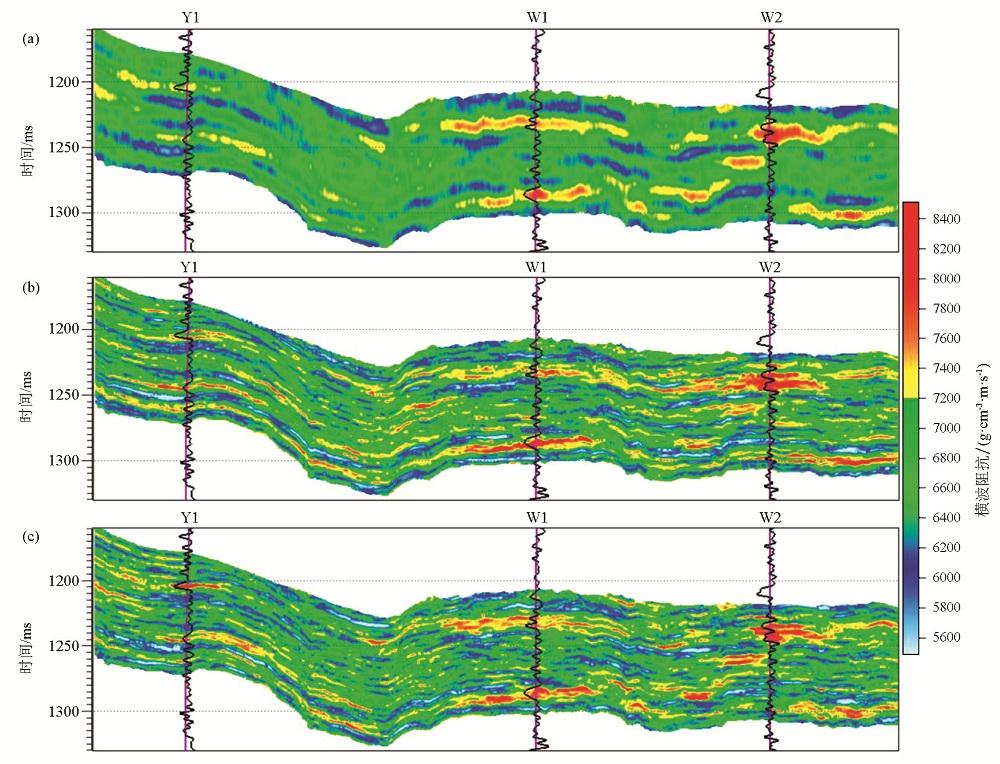

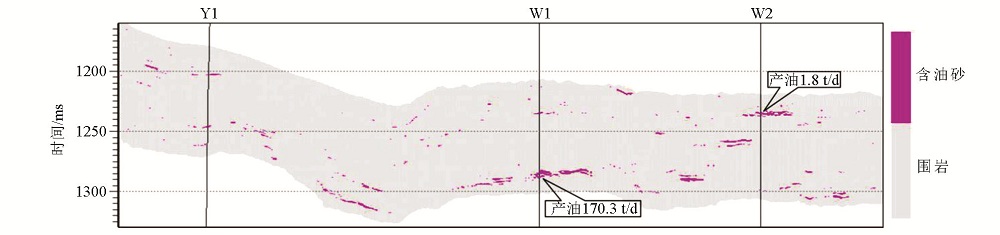

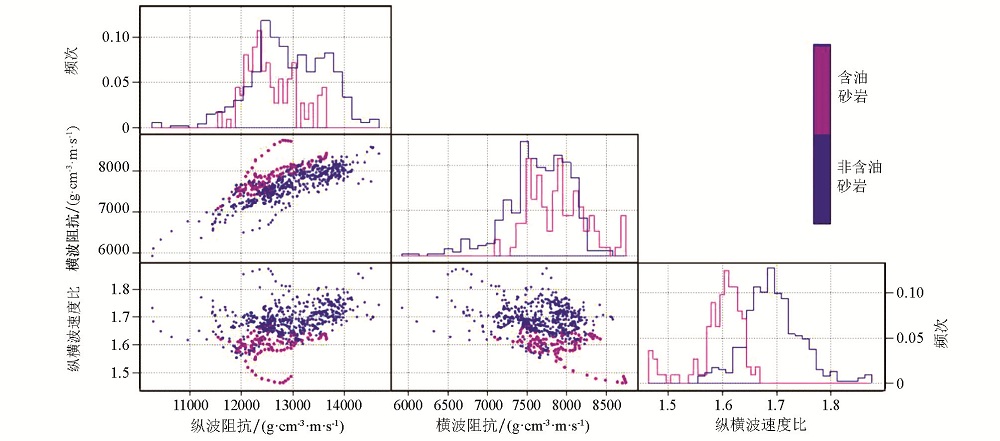

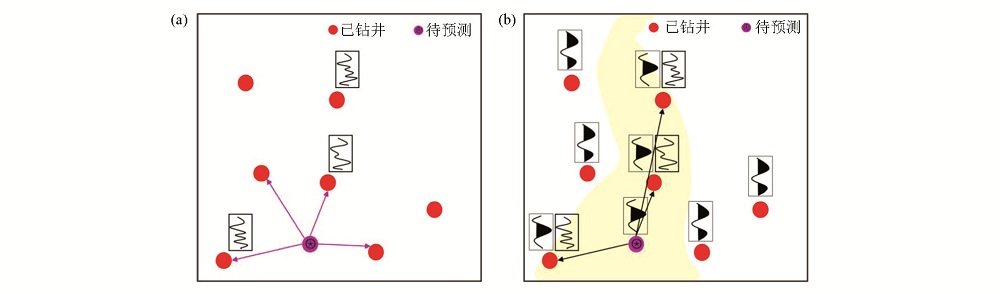

Abstract The results of petro-physical research show that pre-stack elastic parameters and multi-parameter intersection are more sensitive to reservoir and hydrocarbon,and the pre-stack inversion based on this conclusion is an effective method for quantitative prediction of the oil-bearing reservoir.As for compact and thin sand reservoir and its oil-bearing property,because their seismic response are extremely concealed and the seismic resolution is deficient,the high-resolution pre-stack stochastic inversion based on variogram is widely applied.However,the high frequency contents of pre-stack stochastic inversion have strong randomness and low reliability,which exerts a great impact on the accuracy and reliability of the prediction results.In order to solve these problems,the authors took the prediction for compact and oil-bearing thin sand of Jurassic Shaximiao Formation in north-central Sichuan Basin as a study case and,after analyzing the sensitive elastic parameters of reservoir and its oil-bearing property,carried out the application research on the high-resolution pre-stack inversion method based on seismic waveform indicator.The method uses the similarity of pre-stack seismic waveform instead of variogram to optimize well samples,and builds the initial model of each elastic parameter by stochastic simulating based on the optimization samples.Under a Bayesian framework,the method combines the initial model,the prior probability distribution of well elastic parameters and the inversion elastic parameters of pre-stack simultaneous inversion to build the posterior probability distribution of each elastic parameter,then resamples the posterior probability distribution function using Metropolis-Hastings method to get a convergent and stationary distribution which is also an inversion result.The practical application shows that it can get a high-resolution and broadband result of each elastic parameter in the formation from the pre-stack seismic data by using the pre-stack inversion based on seismic waveform indicator,and the high frequency contents of the result are more certain to raise the prediction accuracy and reliability of compact and thin sand reservoir and its oil-bearing property.It has extensive application prospect as an effective method for high-precision prediction of the reservoir and the oil-bearing property of compact clastic rocks in terrestrial facies.
|
Received: 13 February 2017
Published: 04 June 2018
|
|
|
|
|
[1] |
杨国杰, 宋丽媛, 商建霞 . 地质统计反演技术在坨11南地区储层预测中的应用[J]. 物探与化探, 2015,39(6):1193-1198.
|
[2] |
钱玉贵, 叶泰然, 张世华 , 等. 叠前地质统计学反演技术在复杂储层量化预测中的应用[J]. 石油与天然气地质, 2013,34(6):834-840.
|
[3] |
姜文龙, 杨锴 . 岩石物理参数高分辨率地质统计学反演[J]. 石油物探, 2012,51(6):639-647.
|
[4] |
孙思敏, 彭仕宓 . 地质统计学反演及其在吉林扶余油田储层预测中的应用[J]. 物探与化探, 2007,31(1):51-53.
|
[5] |
何火华, 李少华, 杜家元 , 等. 利用地质统计学反演进行薄砂体储层预测[J]. 物探与化探, 2011,35(6):804-808.
|
[6] |
Rieker N . The form and nature of seismic waves and the structure of seismograms[J]. Geophysies, 1940,5(4):348-366.
|
[7] |
Widess M A . How thin is a thin bed?[J]. Geophysies, 1973,38(6):1176-1180.
|
[8] |
顾雯, 徐敏, 王铎翰 , 等. 波形指示反演技术在薄储层预测中的应用——以准噶尔盆地B地区薄层砂岩气藏为例[J]. 天然气地球科学, 2016,27(11):2064-2069.
|
[9] |
冉令 . 一种基于地震波形指示的反演方法研究[J]. 中国石油大学胜利学院学报, 2016,30(3):3-5.
|
[10] |
盛述超, 毕建军, 李维振 , 等. 关于地震波形指示模拟反演(SMI)方法的研究[J]. 内蒙古石油化工, 2015,2015(21):147-151.
|
[11] |
Sheriff R E . Limitations on resolution of seismic reflections and geologic detail derivable from them in seismic stratigraphy—Application to hydrocarbon exploration[J]. AAPG, 1977,Memoir(26):3-14.
|
[12] |
Levy S, Fullagar P K . Reconstruction of a sparsespike train from a portion of its spectrum and application to high-resolution deconvolution[J]. Geophysics, 1981,46(9):1235-1243.
|
[13] |
梁狄刚, 冉隆辉, 戴弹申 , 等. 四川盆地中北部侏罗系大面积非常规石油勘探潜力的再认识[J]. 石油学报, 2011,32(1):8-17.
|
[14] |
赵永刚, 陈景山, 蒋裕强 , 等. 川中公山庙油田中侏罗统沙溪庙组一段储层特征及控制因素[J]. 天然气勘探与开发, 2006,29(1):10-16.
|
[15] |
郝毅, 倪超, 陈薇 , 等. 川中中侏罗统凉高山组—下沙溪庙组储层特征[J]. 四川地质学报, 2013,33(2):154-157.
|
