The prediction of the content and distribution of coalbed gas :a case study in the Qinshui coalfield based on logging |
Ya-Lin LIANG, Wen-Tao YUAN |
No. 148 Coal Geological Exploration Institute, Taiyuan 030053, China |
|
|

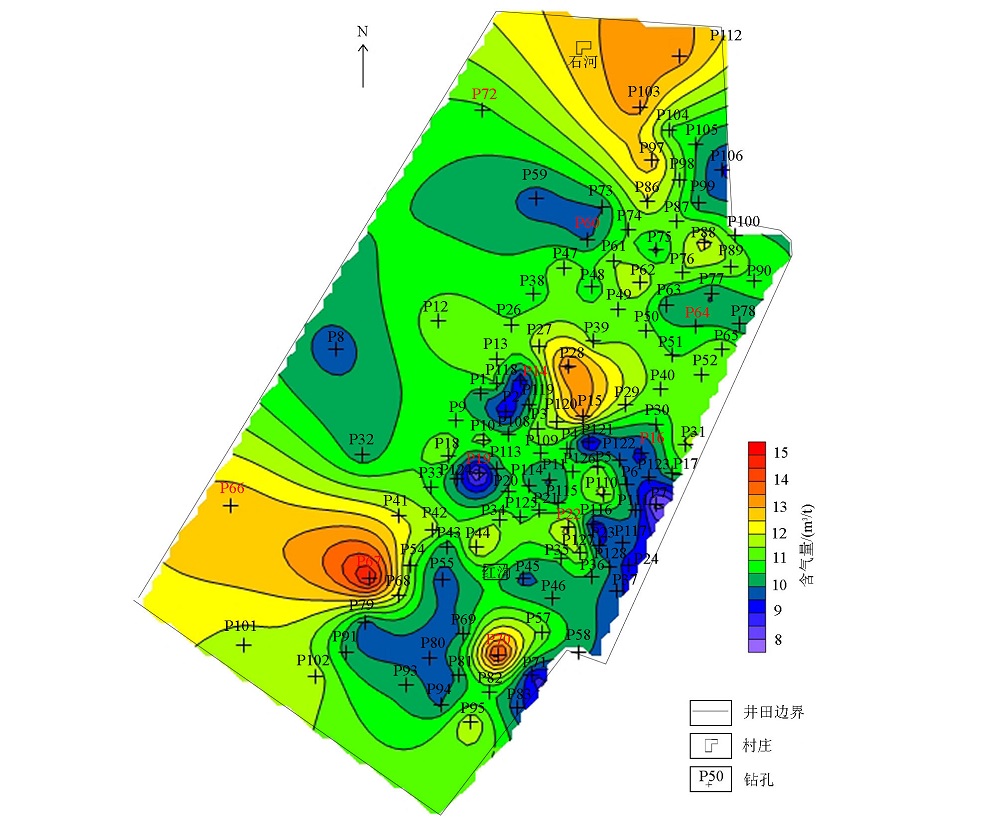

Abstract In the course of coalbed methane exploration and development, it is very important to make a more accurate prediction of gas content and its distribution. The authors collected, sorted and analyzed the exploration zone logging as well as coalbed gas test data and used multiple regression analysis method to establish the relationship between logging parameters and coalbed methane (CBM) content, predicted coalbed methane content and its distribution in the whole exploration area. The results show that the calculation of gas content in coal seam by multivariate regression method is fast, accurate, convenient and practical. The distribution trend of coalbed methane content provides reference for selecting favorable areas for coalbed methane exploration and development.
|
Received: 02 May 2018
Published: 19 December 2018
|
|
|
|
|
样品号 | 测试含气量 /(m3/t) | 煤层深度 /m | 自然伽马标准值 /API | 补偿密度标准值 /(g/cm3) | 声波时差标准值 /(μs/m) | 1 | 9.90 | 848.52 | 33 | 1.41 | 462 | 2 | 11.53 | 849.82 | 15 | 1.47 | 512 | 3 | 6.04 | 850.22 | 31 | 1.44 | 456 | 4 | 7.03 | 850.92 | 53 | 1.81 | 392 | 5 | 11.70 | 550.84 | 20 | 1.59 | 431 | 6 | 11.58 | 551.84 | 26 | 1.41 | 463 | 7 | 11.47 | 552.59 | 15 | 1.40 | 474 | 8 | 11.48 | 553.84 | 33 | 1.52 | 438 | 9 | 5.03 | 554.54 | 55 | 1.96 | 344 | 10 | 4.11 | 554.84 | 60 | 2.11 | 341 | 11 | 7.68 | 751.13 | 31 | 1.52 | 475 | 12 | 8.92 | 751.78 | 34 | 1.49 | 472 | 13 | 8.76 | 752.53 | 40 | 1.55 | 469 | 14 | 12.98 | 585.26 | 24 | 1.51 | 451 | 15 | 13.97 | 585.86 | 22 | 1.52 | 472 | 16 | 13.53 | 586.81 | 40 | 1.62 | 450 | 17 | 13.72 | 587.86 | 19 | 1.56 | 466 | 18 | 11.62 | 588.36 | 33 | 1.74 | 445 | 19 | 8.32 | 589.31 | 48 | 1.77 | 396 | 20 | 9.43 | 892.54 | 37 | 1.63 | 426 | 21 | 10.42 | 893.34 | 8 | 1.58 | 415 | 22 | 10.69 | 894.04 | 37 | 1.63 | 444 | 23 | 12.13 | 894.54 | 25 | 1.71 | 436 | 24 | 10.33 | 571.36 | 28 | 1.61 | 447 | 25 | 11.70 | 571.76 | 16 | 1.55 | 460 | 26 | 9.75 | 572.86 | 41 | 1.69 | 432 | 27 | 10.93 | 574.46 | 24 | 1.60 | 426 | 28 | 10.52 | 575.06 | 21 | 1.60 | 447 | 29 | 13.07 | 1025.12 | 35 | 1.66 | 461 | 30 | 12.94 | 1026.12 | 22 | 1.68 | 493 | 31 | 16.27 | 1027.12 | 24 | 1.56 | 517 | 32 | 13.74 | 1027.62 | 24 | 1.56 | 510 | 33 | 12.60 | 1028.12 | 18 | 1.55 | 475 | 34 | 9.72 | 1028.72 | 37 | 1.57 | 458 | 35 | 17.22 | 835.37 | 17 | 1.30 | 460 | 36 | 16.11 | 836.27 | 27 | 1.35 | 472 | 37 | 15.23 | 836.77 | 34 | 1.50 | 477 | 38 | 12.92 | 838.37 | 32 | 1.30 | 467 | 39 | 15.14 | 666.57 | 16 | 1.55 | 460 | 40 | 14.72 | 666.97 | 12 | 1.46 | 470 | 41 | 16.20 | 667.37 | 31 | 1.48 | 527 | 42 | 16.37 | 667.77 | 22 | 1.48 | 494 | 43 | 14.91 | 669.33 | 8 | 1.47 | 455 | 44 | 13.78 | 670.63 | 24 | 1.51 | 444 | 45 | 9.97 | 1238.22 | 47 | 1.60 | 426 | 46 | 10.01 | 1238.82 | 49 | 1.57 | 425 | 47 | 10.37 | 1239.55 | 29 | 1.53 | 425 | 48 | 11.25 | 1240.15 | 43 | 1.52 | 417 | 49 | 10.50 | 1240.80 | 55 | 1.59 | 435 | 50 | 12.24 | 1241.30 | 24 | 1.54 | 452 |
|
|
|
|

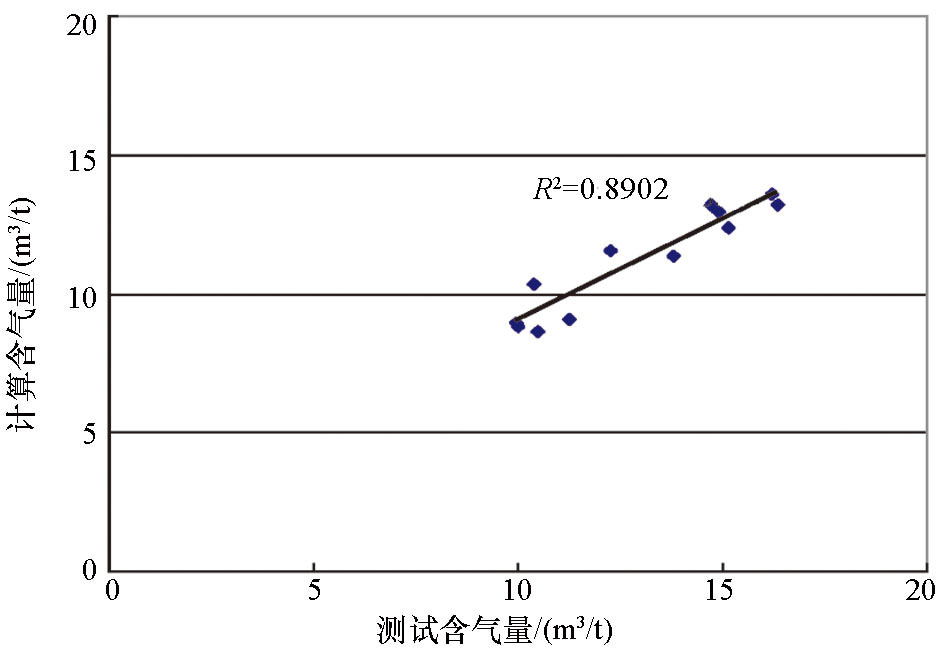

样品号 | 测试含气量 /(m3/t) | 计算含气量 /(m3/t) | 绝对误差 /(m3/t) | 相对误差 /% | 39 | 15.14 | 12.41 | 2.73 | 18 | 40 | 14.72 | 13.18 | 1.54 | 10 | 41 | 16.20 | 13.57 | 2.63 | 16 | 42 | 16.37 | 13.18 | 3.19 | 19 | 43 | 14.91 | 12.98 | 1.93 | 13 | 44 | 13.78 | 11.38 | 2.4 | 17 | 45 | 9.97 | 8.94 | 1.03 | 10 | 46 | 10.01 | 8.82 | 1.19 | 12 | 47 | 10.37 | 10.36 | 0.01 | 0 | 48 | 11.25 | 9.09 | 2.16 | 19 | 49 | 10.50 | 8.66 | 1.84 | 18 | 50 | 12.24 | 11.58 | 0.66 | 5 | 平均值 | | | 1.78 | 13 |
|
|
|
|
|
|
|
|
[1] |
刘荣芳, 王建功, 刘文华 , 等. 基于煤岩结构的煤层含气量测井评价方法[J]. 中国煤层气, 2014,11(4):22-25.
|
[2] |
孟召平, 郭彦省, 张纪星 , 等. 基于测井参数的煤层含气量预测模型与应用[J]. 煤炭科学技术, 2014,42(6):25-30.
|
[3] |
金泽亮, 薛海飞, 高海滨 , 等. 煤层气储层测井评价技术及应用[J]. 煤田地质与勘探, 2013,41(2):42-45.
|
[4] |
潘和平, 黄智辉 . 煤层含气量测井解释方法探讨[J]. 煤田地质与勘探, 1998,26(5):58-60.
|
[5] |
李春辉, 陈日辉, 苏恒瑜 , 等. BP神经网络在预测煤与瓦斯突出中的应用[J]. 矿冶, 2010,19(3):21-23.
|
[6] |
夏宏泉, 刘之的, 朱猛 , 等. 随钻电阻率测井的环境影响校正主次因素分析[J]. 测井技术, 2008,32(2):160-161.
|
[7] |
张文博, 宋晓莉 . 测井曲线常见影响因素分析[J]. 石油管材与仪器, 2015,1(2):93-95.
|
[8] |
长春地质学院. 水文地质工程地质物探教程[M]. 北京: 地质出版社, 1979: 336-340.
|
[9] |
刘效贤, 李承华 . 测井评价煤层气储层的方法探讨[J]. 中国煤炭地质, 2008,20(12):1-3.
|
[10] |
高绪晨 . 煤层气测井资料解释初探[J]. 中国煤田地质, 2003,15(4):54-57.
|
[11] |
贾承造 . 煤层气资源储量评估方法[M]. 北京: 石油工业出版社, 2007, 47-48.
|
[12] |
赵庆波, 李五忠 . 中国煤层气勘探开发技术研究[M]. 北京: 石油工业出版社, 2007, 106-109.
|
[13] |
潘和平 . 煤层气储层测井评价[J]. 天然气工业, 2005,25(3):48-51.
|
[14] |
陆国桢, 张凤威, 傅雪海 , 等. 测井解释煤层甲烷含量与煤层结构的研究[J]. 煤田地质与勘探, 1997,25(3):54-56.
|
[15] |
陈江峰, 刘保民, 别玉平 , 等. 测井在煤层气储层评价中的应用[J].煤炭技术, 1997(4):36-40.
|
