0 引言
天然气水合物是由水分子笼和客体分子结合构成的类冰状晶体化合物,在低温、高压以及孔隙水充足的环境下形成,一般赋存于水深超过300 m的海域和距地表130 m以下的陆域冻土区中。鉴于其高能量、高密度、清洁无污染和分布广等特点,天然气水合物在全球能源利用和环境保护中发挥着重要作用,是未来人类开发和利用的主要新型能源[1-2]。针对不同含水合物储层介质的特性差异,研究其所含天然气水合物的赋存状态对水合物的勘探具有深远意义。现有的探测手段主要为地球物理探测和地球化学探测。近年来,超声波探测技术、时域反射(TDR)技术和阻抗勘测在实验领域不断被深入研究,同时X-CT射线扫描、激光拉曼光谱法、核磁共振等探测技术也在更新,但仍需细化和改进。
电阻率法探测技术作为储层测井响应方法之一,不仅可以确定水合物赋存位置,还能够探测水合物的成核、生成以及饱和度,在天然气水合物勘探和开采方面具有不可替代的作用[3]。阿尔奇(Archie)公式作为评价水合物饱和度的重要方式,其岩性附加导电系数(a)、岩性比例系数(b)、孔隙度指数(m)和饱和度指数(n)的选取,对Archie公式能否准确计算饱和度具有决定性作用,且m、n的影响程度远大于a和b[4]。目前,Archie公式在计算天然气水合物饱和度时更多地依赖于固定的m、n值,很少采用双对数坐标下的非线性计算;另外,在不同地区天然气水合物饱和度的研究中,对不同形成条件下m、n的影响因素分析较少。考虑到m、n的物理意义以及它们的取值对水合物饱和度计算精度的影响,Archie公式在天然气水合物饱和度评价中的应用范围还有待进一步扩大。
1 含水合物沉积物的电阻率演化规律
1.1 电阻率法探测的基本原理
1.2 影响因素
1.2.1 气源与沉积物性质
气源与含水合物沉积物的数量和种类同样影响水合物的电学性质。研究人员利用四氢呋喃水合物作为水合物的勘测模拟物进行室内模拟实验,结果表明:随着温度和盐度的递增,电阻率逐渐降低,相比之下,声速的变化并不显著[8]。不同粒径的多孔介质中(砂、黏土、泥砂),不同浓度四氢呋喃体系下的含水饱和度和电性参数是不同的,电阻率会随着压力增加而略有上升,其孔隙流体的导电性与流体体积分数密切相关[9]。此外,采用电阻率分析二氧化碳水合物的生成过程,不仅能够对气体在溶液中的溶解度做计算,还可以通过具有类似晶体结构或者物理性质的水合物相变化图分析甲烷水合物的性质[10]。由于四氢呋喃和二氧化碳不能代表所有的水合物结构,且不同影响因素下导致的电学性质变化不同,考虑到甲烷水合物最接近天然气水合物,因此后期更多以甲烷为水合物的主要气体来源。
测井数据显示,近年来在南海水合物钻探区,以水合物富集为主的混合层中粉砂岩的比例逐渐增加[11-12]。Chen和Kim等[13-14]的研究成果表明,多数情况下水合物分布于细粒、粗砂或粉砂的沉积物混合层中。水合物在不同形成阶段具有不同的孔隙充填模式,主要分为接触、悬浮和胶结模式,且随水合物饱和度的增加,电阻率的上升趋势变得更陡[15]。考虑沉积物粒径效应对水合物储层环境中孔径分布的影响,Dufrane等[16]以砂子或玻璃珠模拟多孔介质,研究甲烷水合物的动力学过程和稳定性,发现玻璃珠对甲烷水合物电学性能的影响小于砂,且随着砂浓度的增加,活化能降低,电导性增加,符合阿伦尼乌斯(Arrhenius)表达式。但在实际储层中,杂质的种类以及不同的沉积物含量对电阻率的影响可能不同[17],从而导致水合物分布与电阻率的测试结果有所差异。
1.2.2 温度、压力
一定的气体含量、适宜的温度和压力是形成水合物的主要条件。依据水合物在生成和分解过程中的温压曲线和电导性分布实验结果,认为电阻率能够作为水合物定性分析的一项指标[18]。实验证明,粒径为1~2 mm的粗砂中水合物的饱和度在10 ℃温度梯度下率先达到最大值,且更高的温度梯度增加了电阻率的上升时间[19]。而在分散型沉积物孔隙中,水和冰均能生成水合物,随着温度周期次数的增加电阻率仍有递增趋势[20-21]。在甲烷、水溶液和多孔介质形成的多成分混合系统中,离子浓度和电阻率随时间和温度的变化而变化,且温度与电导率在形成和解离时均呈指数关系,适用于Arrhenius表达式:σ(Τ)=σ0
1.3 演化规律
这些基本因素和规律可为复杂储层中水合物非均质分布和运移的分析提供理论依据和定量信息,而对于整体的天然气水合物或沉积物中电阻率的探究,还需更多的理论和实践分析。
2 电阻率法探测技术在天然气水合物勘探中的应用进展

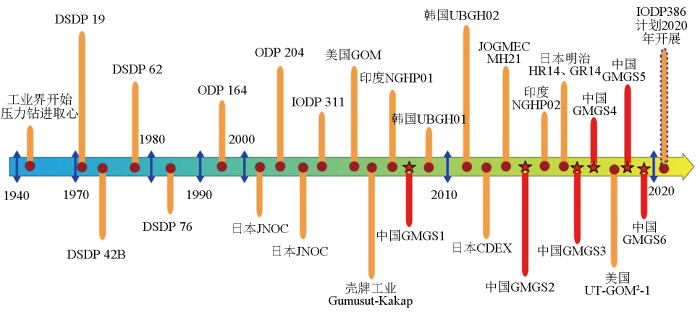

图1

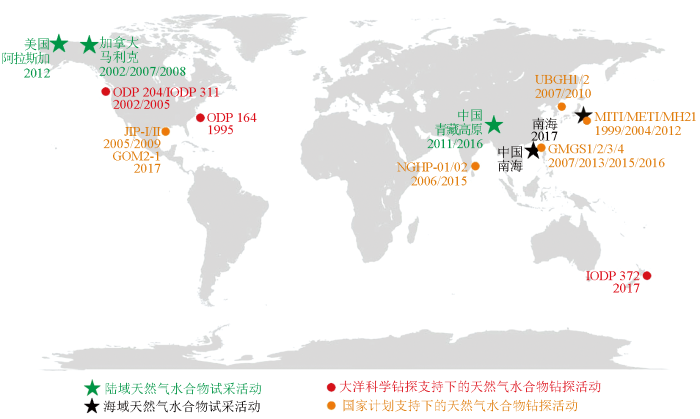

图2
2.1 含天然气水合物沉积物的电学特性
Nobes等[31]采用海洋水合物区域内粉土和黏土为多孔介质建立了热导率和电阻率二个关系式,指出电阻率对水合物的存在反应比沉积物性质的变化更灵敏,因此认为电阻率法在评估水合物的分布上有一定的潜在价值。到目前为止,几乎所有已知的勘探或开采区域都采用过电阻率法探测技术,这代表了电阻率法在识别含天然气水合物储层及估算水合物饱和度中具有不可替代的作用。
Waite和Yousif等[32-33]利用Berea固结岩心进行了天然气水合物合成分解模拟实验研究,该装置不仅能测量系统压力的变化,还可以通过四电极系统来测量体系电阻率参数,并通过电阻率的变化来识别水合物合成分解的速率,从而确定天然气水合物合成的数量及生成方式。Zatsepina、Yama、Buffet等[34⇓-36]通过测量水合物合成分解过程中的电阻率变化,分析了在没有游离气体的多孔介质中水合物的动力学和热力学机理,并建立了溶解气体生成水合物模型,发现对电阻率变化速度规律的研究可量化水合物的成核规模。陈强等[37]考虑孔隙流体的影响,以二氧化碳、甲烷水合物作对比,发现在垂向上甲烷水合物会受到排盐效应的影响,导致离子分布、盐水浓度和孔隙中水合物的分布模式发生区域性变化,电阻率总体会呈现出某一处的降低随后逐渐升高。为增加孔隙流体的多种可能性,Lech等[38]分别测量黏性和非黏性土壤在不同盐浓度溶液中的电阻率变化,结合孔隙度与弯曲度的函数关系[39],指出依据孔隙水电阻率,可以分析孔隙度、含水饱和度和相关背景下的水合物饱和度。金学彬等[40]证实在电容和电阻均存在阻抗系统中,阻抗在高频率下呈现单调增高趋势,低频率下相对现象不明显。对于相角—频率的规律分析,曲线的整体趋势相同,与水合物饱和度关联性较小。由于复电阻率在不同频率下的频散特性不同,利用Archie公式进行天然气水合物饱和度的计算后,发现水合物饱和度在不同频率下的变化不同,原因是电性数据提供不够广泛,导致水合物在高饱和度范围内的分析并不充分。该方法仍有待进一步研究,目前不具有普适性[41]。牛佳乐等[42]结合对称电极和多频率点(5~400 Hz)发现:阻抗幅值、流体和孔隙壁界面的极化反应均与频率呈反比,且在一定范围内,水合物饱和度指数与频率为线性关系。
Chen等[43]利用岩心数据分析孔隙流体对电阻率反演数据的影响,发现当水合物饱和度较低时(≤15%),孔隙水矿化度增大,电阻率逐渐减小。当饱和度在50%左右时,沉积物电阻率和孔隙度指数m均增加了2倍,此时矿化度不再是主导因素。Pandey等[44]结合地震反射成像和纵波速度方程就第二次印度远征勘探的富砂层进行深度分析,对比了井下水合物的电阻率测井曲线与压力岩心的饱和度数据的误差,而后以孔隙填充型和裂缝型二种填充方式对水合物—电阻率关系进行孔隙度的细化分析,认为孔隙度密度误差通过影响Archie公式的岩性参数间接影响水合物饱和度的评价。但该结论存在一定缺陷,首先设定了储层性质为各向同性,导致成像中的水合物几乎垂直填充高电阻率裂缝;其次,方程中取黏土和砂的体积为具体比例,从而限制了地层条件。为进一步研究含水合物沉积物中孔隙度对岩电参数及电阻率检测的影响,Feng等[45]将Archie公式与核磁共振T2时间分布相结合提出了一种修改模型,预测低渗透砂岩中含水饱和度和电阻率指数的变化,将实际测井获得的岩心数据与修改后的Archie公式计算结果对比,发现其符合度高且相关性较强,而岩性比例系数b和饱和度指数n与实验测量相比,相对误差在5%以内,表明模型具有较高的可靠性。
2.2 电阻率法测量实验装置的发展
“电极法”经常被用来测量室内砂土的电阻率,其测量电极和供电电极一般布置在一个水平面上。其中,四电极法具有可操作性强、便捷等优点[46]。赵仕俊等[47]利用早期的一维装置(图3a),得到了水合物区域内的电阻率演化规律,验证了电阻率法在一维电极装置下探测水合物动态变化的可行性。杜燕等[48]围绕电容法对二维模拟装置进行优化(图3b),发现水合物饱和度增加后,电容量会逐渐减小。而在电极材料的选择上,除恒压恒流的环、点和片状铜电极外,Birkedal等[49]利用银滤纸材料结合核磁共振,观察水合物生成中三维空间和微观上的电阻率特征,发现电阻率随频率值的增加而减小,在水合物饱和度接近20%时,水合物的形成对沉积物内部的电阻率变化影响不大。由于水合物钻探装置的室内研究对反应釜的要求仅在一维、二维会有所局限,李小森等[50]引进了一个三维空间反应釜系统(图3c),是天然气水合物电阻率反演的一大进步。三维反应釜实验揭示了水合物的形成在空间上分布不均匀,在传热效应的影响下,水合物主要沿壁分布,并由于孔隙堵塞、连通性不好等原因,电阻率和水合物饱和度的线性关系有待探究,并指出孔隙流体的流动对于水合物的开采有重要影响。

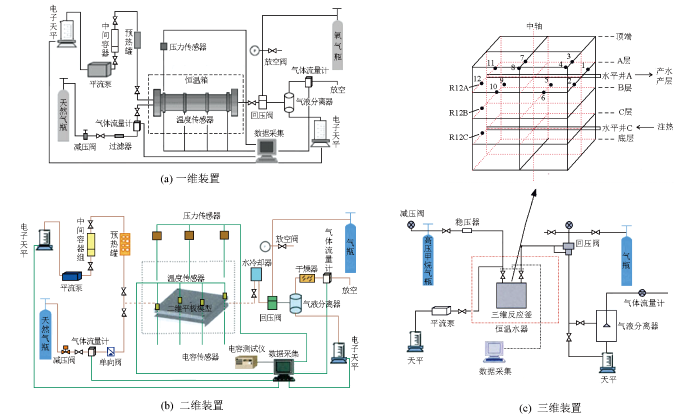

图3
考虑到电极与砂子之间接触电阻和接触面积的影响,为了减少误差,逐渐引申至小范围内测试水合物的电阻率[51],尽量采用多接触点、短距离的电极探针和环状电极探测水合物的电阻率,这样不仅能够提高精准度,还可以准确测量水合物的生成特性和盐分变化[52]。Wu等[53]在阐述环电极和点电极二种体系对不同粒径砂砾间接触电阻的影响时,指出环形电极可以监测气体运移的能力和类型,点状电极对于测量气体饱和度更适用,另外,还可通过提高压力密度来保证样品与电极之间的良好接触。陈玉凤等[54]通过数字交流电桥组成的电阻系统,以降温速率为变化点,指出孔隙水的电阻率基本不变,水合物饱和度在不同含量界限区间内呈非均匀性,且与饱和度指数n有关。
2.3 数值模拟

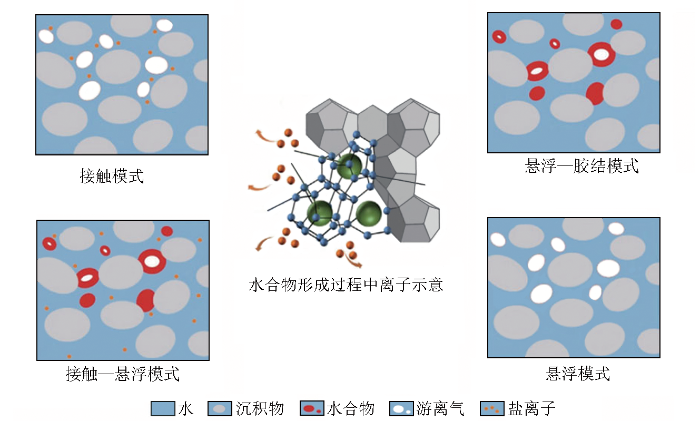

图4
对于松散的含水合物沉积物模型,考虑到毛细管力、粒度、湿润性和孔隙度的影响,认为水合物饱和度指数和模型的尺寸呈正相关,与水合物饱和度具有强依赖性[56]。为研究Archie经验公式计算模型对电阻率计算的影响, Dong等[57]利用CT分别扫描黏附型、胶结式和分散型这3种不同的含水合物沉积物,将得到的水合物饱和度与校准岩电参数后的 Archie 公式计算结果进行对比,结果表明,修正后的Archie公式比传统Archie模型在水合物饱和度计算精度上提高了20%。若使用纳米聚焦X—CT在微观层面探讨3种填充模式下的不同边界水合物薄膜变化,不仅可以观察到不同水合物饱和度下孔喉的迁移变化,还得到了砂砾—水合物—水之间的有效孔隙度、孔数以及最大孔径等参数随水合物饱和度变化对应的动态图像,这加速了水合物饱和度分析的研究进展[58]。用分形维数分析各部分电导性的细节变化时,孔隙水电导率和孔隙率的变化趋势相同,而沉积物骨架的电导率在水合物饱和度Sh≤80%时为平稳状态,在Sh>80%时呈指数突增[59]。结合电极探针,发现不同多孔介质背景下水合物的生成模式、饱和度存在一个与孔隙相关的临界水合物饱和度值,在孔隙堵塞之前电阻率会随水合物饱和度的升高而持续增长[60]。
基于上述讨论,电阻率不仅受沉积物本身、外在因素(温压条件)、水合物的赋存状态以及孔隙流体的影响,还与外界的传热效应和储层性质各向分布计算等因素有关。目前,电性数据提供不够广泛,基于水合物高饱和度范围内的分析不够充分,应根据电极装置、电极体系以及电性参数进一步优化,从而更好地反演地层水合物的确切状态及储量。对于复杂的砂岩储层,细化含水合物沉积物中天然气水合物的分子运移路径模型,可使得饱和度的定量评价更加明确。微观动力学和可视成像分析应更多结合饱和度评价公式(如Archie公式),对多元化储层提供可变的计算拓展式。
3 Archie公式的应用进展
3.1 Archie公式研究背景
电阻率测井作为一种探测碳氢化合物的重要手段,早期广泛应用于油气储层中液体和化合物的性质识别,并在储层响应特征的定性评价中占有一席之地。直至Archie公式出现,人们逐渐将电阻率法测井技术作为水合物储层探测手段,同时结合饱和度计算模型对天然气水合物进行定量分析。利用Archie公式[64]计算水合物饱和度由地层因子和电阻率增大指数二部分组成,即
据此可得出电阻率与含油气饱和度之间的关联式:
式中:F为地层因子;R0为饱含水时的地层电阻率,Ω·m;Rt为地层电阻率,Ω·m;Rw为孔隙水电阻率,Ω·m;Φ为储层岩石孔隙度,%;Sw为含水饱和度,%;a、b、m和n均为Archie经验参数。
3.2 岩电参数m、n的研究现状
近年来,人们常以堆放的纯净散沙孔隙度指数(m=1.3)作为水合物饱和度计算值[67]。饱和度指数(n)也早在很久之前就被认为与含水量具有一定关联,在过去几十年中,大部分以n=1.938 6计算砂岩储层中的水合物饱和度[68]。然而,多年冻土区和海域中的含水合物沉积物内部结构随地质孔隙空间移动路径的多变而呈现出复杂化,外界附加导电因素、有效孔径分布、渗透率和粒度等的影响也导致水合物的分布表现出随机性、不均匀性[69⇓-71],同时,受温度、盐度变化的影响,沉积物孔隙内部流体流动路径发生变化也将引起含水合物沉积物电阻的变化[8,72];从m、n本身的物理意义来看,这些变量因素都会间接影响m、n的取值。但目前,大多数实验仍采用固定值计算天然气水合物的饱和度,只有少量通过测井或实验模拟数据拟合得出胶结指数和水合物饱和度指数。
针对日益复杂的含水合物沉积物储层,目前正在不断探索适用于泥质砂岩、低渗透砂岩以及复杂孔隙储层等不同地质环境的m、n值。Shankar等[73]认为在沉积物以黏土为主时,m的取值在0.8~1之间。此外,颗粒圆润度的降低、孔隙结构连续分形的不断减小等也会使岩层渗透率、电导率等发生变化,间接影响m的取值。Jackson等[74]拟合了8种球度为0.8的天然海沙曲线,发现m在1.39~1.58之间,约为1.49,而人工样品砂砾的m在1.2~1.9,且球度为0.78时约为1.5,因此指出孔隙度指数受砂粒形状的影响大于砂粒本身的大小和分布。可见降低球形度是增加m的一种方式。Anderson等[75]通过研究发现,当含水饱和度(Sw)在30%左右变化时,受孔隙连通性或粘度改变的影响,n值的取值范围将增大到2~3.5之间。Spangenberg等[56]通过观察水合物在储层内的形成方式,验证了n值可在0.5~4之间变化。然而,当水合物饱和度(Sh)较高时(Sh>70%),水合物作为沉积物基质起到承载作用,此时n值最高可达6[76]。Bahuguna等[77]认为同一介质中不同层段内的m、n值也不同,上部为1.89和1.46,中部为1.88和1.4,计算精度提高了近10%。Li等[78]进一步对孔隙水溶液的影响做了补充,利用5组不同初始盐水饱和度(12%、20%、30%、40%和50%)形成的甲烷水合物样品进行水合物饱和度—电阻率曲线的岩电参数拟合,选取水合物饱和度膨胀系数(Kh)为1.25,确定了m=0.167 7、n=1.601 9,其中水合物膨胀系数随不同储层环境和变量条件而变化,间接影响m、n的拟合取值。Moahamad等[79]在通过传统的Archie公式、三维标准化回归方程和CAPE三种方式对砂岩和碳酸盐进行岩电参数的拟合时,得出传统方法计算中n值在0.84~3.4之间变化且幅度较大,CPAE技术由于样本分布的各向异性,碳酸盐的m值在1.49~2.19范围内不稳定变化。
综合以上结论,3D空间技术最适合实际参考使用,能够在三维空间上对非均质分布的储层进行水合物饱和度准确计算。对于Archie公式的模型架构,除了孔隙填充、周围胶合和接触胶合模式,Cook等[80]采取承载架构结合纵波探讨了适用于粗砂储层的n值,指出n=2.5±0.5在粗颗粒储层中是可行的,此时参考数据m=1.7±0.1。依据天然气水合物自身对电阻率的影响,Jin等[81]对比原始多孔介质模型(OPM)和演化多孔介质理论模型(EPM),非线性回归了地层电阻率、孔隙水电阻率和含水饱和度,得出OPM模型m=1.5、n=2.6,EPM模型m=2.0、n=0.9,证实了天然气水合物会在实验中部分堵塞通道且增加孔隙弯曲度的观点。
3.3 岩电参数m、n的影响因素
除有效孔径外,Rosales[84]提出了一个残余孔隙度(φr)概念:当孔隙度趋于极限但不等于零时,取极值为残余孔隙度,并把孔隙分成有效区域和停滞区域。当残余孔隙度应用到分散或接触的水合物填充模式时,取φr=0.02、M=1.64(M为几何参数,其值随着颗粒球度变小而变大)、m=1.3(为固定参数值),总体变化趋势为0.02<φr<0.1时M=1.85。在后期,人们更多地研究了岩石骨架对孔隙度的影响。解茜草等[85]通过变换三维空间上岩石的排列和数量,发现孔隙的复杂程度和弯曲度越大则电阻率越高;考虑到弯曲度,对X-CT扫描图像进行微观分形切割,指出孔隙结构的分形不断减小时,弯曲度增加幅度不等,导致水合物饱和度指数(n)在不同程度上产生差异[86]。目前,在研究孔隙影响方面,关注岩石结构本身变化的模拟较多,对于含天然气水合物沉积物中随水合物生成孔隙结构与m、n之间变化的模拟较少,且一般在实验模拟时均采用定性水膨胀系数计算水合物饱和度。但是,m、n的物理意义分别与孔隙弯曲度和流通性有关;而随着天然气水合物在孔隙中无规则形成,孔隙中的水不同程度膨胀成水合物,多孔介质有效孔隙度将被不同程度地减小、分形,这些因素间接影响了m、n值的适用性。
实验数据证实,与常温、常压相比,温度、压力升高后,岩石的孔隙度减小,通道曲折度变大,孔隙中的流体因传热温差会重新分布,m、b值增加,a、n值减小,但变化幅度不等[87]。熊学川等[88]探究了围压对岩电参数的影响,得出a=0.961 5、m=1.832、b≈1.16、n≈1.156,并发现随着围压的增加,a、b基本不变,m增加幅度明显,n则缓慢下降。另外,矿化度也是重要影响因素之一,若矿化度增加,导电离子会增多,电阻率逐渐减小,此时水合物饱和度逐渐减小,孔隙流体连通性增强,n值逐渐增加,而m值对于矿化度的改变会呈现出不规律变化。以频率衡量岩电参数时,同一砂岩颗粒在不同频率变化下,m、n的变化程度不同,且频散现象在低饱和度时更明显[89-90]。
综上所述,不同方法和影响因素下的岩电参数m、n的误差程度存在差异,这不仅涉及到孔隙结构、水合物的胶结方式和岩石中含水程度等因素,还与温度、压力及矿化度有关。目前,针对天然气水合物不同形成条件设置的变量较少,对天然气水合物领域中m、n值的拟合和影响因素研究范围不够。
4 结语
目前,电阻率测井法已经大量应用于天然气水合物领域,Archie公式的应用范围也变得更加广泛,且围绕水合物饱和度的计算正在向成熟阶段过渡。建议下一步的研究重点在以下几个方面:
1)电阻率随含天然气水合物饱和度的增加而单调递增,这不仅与沉积物组成和性质有关,还会受到体系温压、孔隙中流体导电性以及测量频率、储层各向电性分布等因素的影响。针对高水合物饱和度沉积物中电阻率测量数据的短缺和误差,未来需提供更多高水合物饱和度范围内的电性数据,从而为分析不同形成条件下含水合物沉积物的电阻率特性提供支撑。
2)在现有的电阻率钻探装置和工艺上,进一步优化电学装置、数值模拟软件、可视化装置等测量方式,以便更好地反演地层水合物的确切状态及储量。
3)应对复杂储层的岩性多样化,需要更多的测井数据、实际案例以及水合物变化分析的模拟软件,为含天然气水合物储层的动态响应分析提供理论依据。从而实现天然气水合物与地层参数的实时关联,进一步提高天然气水合物饱和度的计算精度。
4)岩电参数需进行细化和完善,特别是m、n值的选取。应采用不同水合物形成条件下非线性参数的优化值代替定值,通过与实际耗气量计算和直接估算法的天然气水合物饱和度进行对比,从而验证参数的可靠性。这将更准确地反映天然气水合物相应的电学特性,为Archie方程在天然气水合物饱和度评估中提供理论数据。
5)岩电参数m、n影响因素的优化。由于孔隙度、温度、压力以及多孔介质等不同因素引起的水合物饱和度的变化都间接影响m、n的取值。因此,建议在非线性计算时选取计算水膨胀系数不要单一,应尽量模拟不同水合物形成条件下多孔介质中水合物的微观填充形态和实时孔隙度变化;另外,应考虑更多天然气水合形成过程中的变量条件,如不同降温过程、砂土配比含量等条件下m、n值的拟合和影响。
