Regularized joint inversion based on Gramian constraints is a hot research topic in the field of geophysical joint inversion. Given the difficulty in selecting weighted factors of the regularization and constraint items, it is necessary to introduce inequality constraints into the regularized joint inversion. To investigate the regularized joint inversion of magnetotelluric (MT) and gravity data based on Gramian constraints, this study compared the application effects of the penalty function method and the transform function method in the joint inversion and processed the measured data of a survey line in Xiangshan, Jiangxi Province. According to the results from model experiments, both methods can effectively constrain petrophysical parameters, and the penalty function method has higher flexibility but requires the artificial setting of the weighted factors. Moreover, the processing of the measured data shows that the joint inversion based on inequality and Gramian constraints is highly practical and can improve the precision of geophysical interpretation.
CHEN Xiao, ZENG Zhi-Wen, DENG Ju-Zhi, ZHANG Zhi-Yong, CHEN Hui, YU Hui, WANG Yan-Guo. Regularized joint inversion of magnetotelluric and gravity data based on inequality and Gramian constraints[J]. Geophysical and Geochemical Exploration, 2023, 47(3): 575-583 doi:10.11720/wtyht.2023.1474
Fig.1
Joint inversed results of different projects for the model test 1

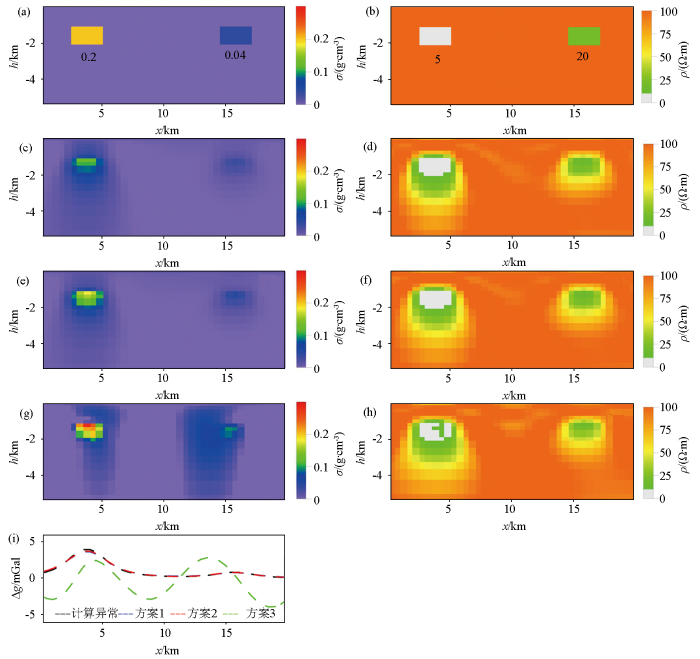

a—designed residual density model;b—designed resistivity model;c—residual density result of project 1;d—resistivity result of project 1; e—residual density result of project 2;f—resistivity result of project 2;g—residual density result of project 3 ;h—resistivity result of project 3;i—fitting curves of gravity anomalies
Fig.2
Joint inversed results of different projects for the model test 2

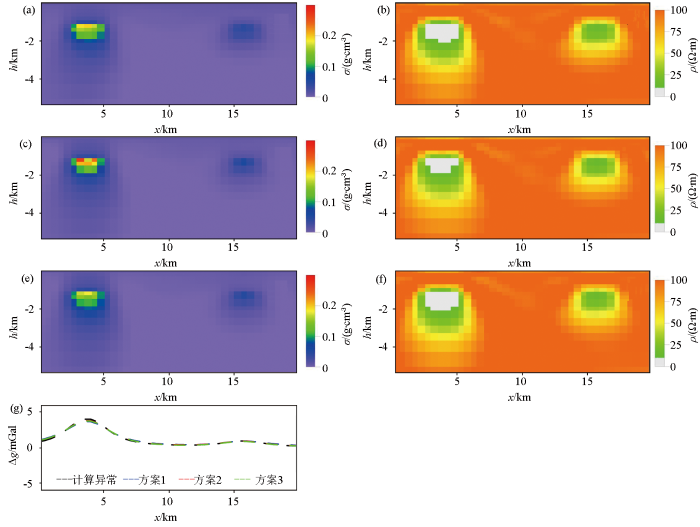

a—residual density result of project 1;b—resistivity result of project 1; c—residual density result of project 2;d—resistivity result of project 2;e—residual density result of project 3;f—resistivity result of project 3;g—fitting curves of gravity anomalies
Fig.5
Joint inversed results of different projects

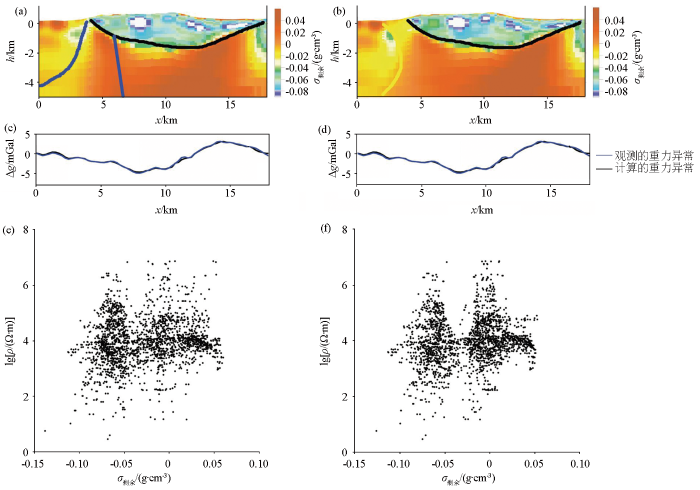

a—joint inversed residual density result of project 1;b—joint inversed residual density result of project 2; c—gravity anomaly fitting curves of project 1;d—gravity anomaly fitting curves of project 2;e—coupling relationship for joint inversed results of project 1;f—coupling relationship for joint inversed results of project 2
