面向地球化学异常识别的深度学习算法对比研究

doi:10.11720/wtyht.2023.2667

Abstract
Figure/Table
References
Related Citation (6)

Download: PDF (6584 KB) HTML (1 KB)
Export: BibTeX | EndNote (RIS)

Abstract

There is a lack of selection bases in the geochemical anomaly identification and the reconstruction of the geochemical background conforming to the metallogenic distribution using deep learning algorithms with different network structures. Given this, based on the 1∶200 000 stream sediment data of the copper-zinc-silver metallogenic area in southwestern Fujian Province, this study extracted the combined structural characteristics, spatial distribution characteristics, and mixed characteristics of multiple elements in the samples using three unsupervised deep learning models, i.e., AE, MCAE, and FCAE. Then, these characteristics were used to reconstruct the geochemical background and simulate the metallogenic distribution. The results show that the anomaly areas delineated by the FCAE model were the most consistent with the known copper ore occurrences, followed by the MCAE and AE models. The FCAE, MCAE, and AE models had an area under the curve (AUC) score of 0.80, 0.78, and 0.61, respectively. Moreover, the FCAE and AE models were not sensitive to the change in the convolution window size. These results indicate that when deep learning algorithms are constructed for geochemical anomaly identification, the algorithms based on the extraction of spatial distribution characteristics or mixed characteristics perform well, and those based on the extraction of combined structural characteristics or mixed characteristics have a strong anti-interference ability for the noise caused by the change or inconsistency of the spatial observation scale. This study provides some effective selection bases for constructing geochemical anomaly identification models based on deep learning algorithms.

Key words： geochemical anomaly identification convolutional autoencoder feature combination unsupervised learning feature extraction deep learning

Received: 10 December 2021 Published: 24 February 2023

ZTFLH:	TP39
	P595

Corresponding Authors: CHEN Li-Rong E-mail: 342159595@qq.com;chenlirong@mail.cgs.gov.cn

	Service

	E-mail this article
	Add to my bookshelf
	Add to citation manager
	E-mail Alert
	RSS
	Articles by authors
	Mu-Si LI
	Li-Rong CHEN
	Fei XIE
	Lan-Ding GU
	Xiao-Dong WU
	Fen MA
	Zhao-Feng YIN

Cite this article:

Mu-Si LI,Li-Rong CHEN,Fei XIE, et al. Comparison of deep learning algorithms for geochemical anomaly identification[J]. Geophysical and Geochemical Exploration, 2023, 47(1): 179-189.

URL:

https://www.wutanyuhuatan.com/EN/10.11720/wtyht.2023.2667 OR https://www.wutanyuhuatan.com/EN/Y2023/V47/I1/179

10])
">

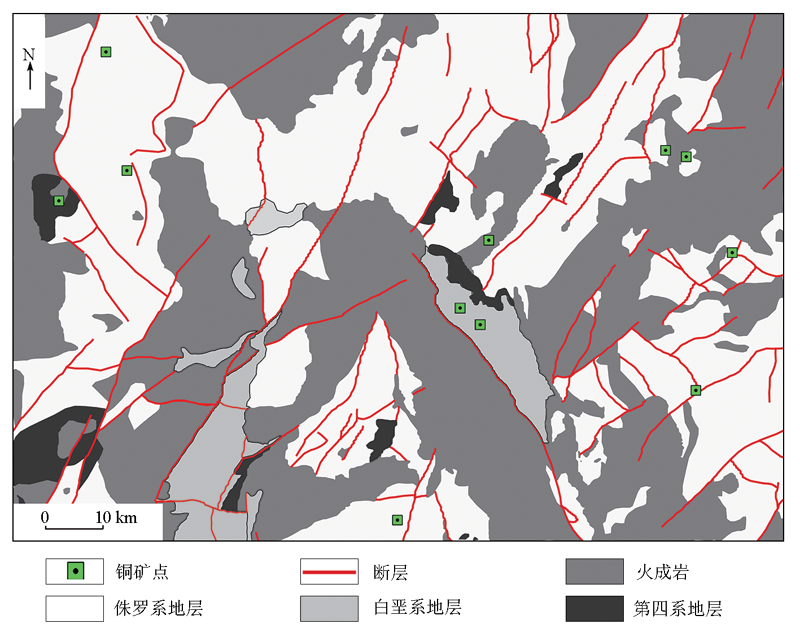

Geological schematic diagram of the study area(modified from Guan Q F, et al.^[10])

Autoencoder model (AE)

9]
">

Multi-Convolutional Autoencoder model (MCAE)^[9]

10]
">

Feature fusion convolutional autoencoder (FCAE)^[10]

Confusion matrix of model prediction results

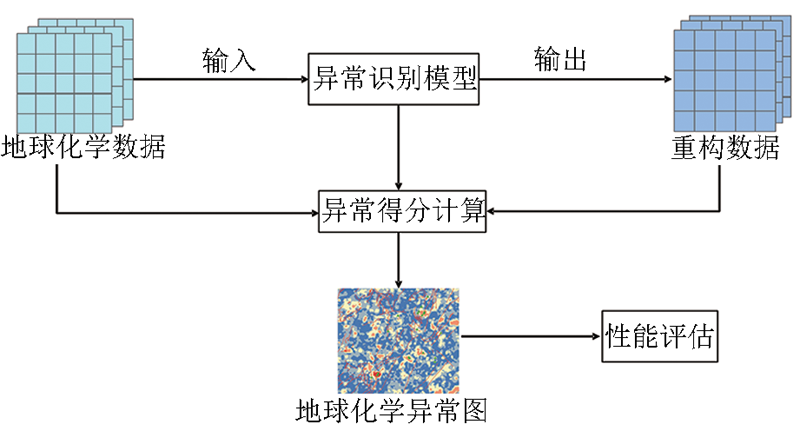

Flow chart of geochemical anomaly identification

Pearson correlation coefficient of Cu with other elements and oxides^[10]

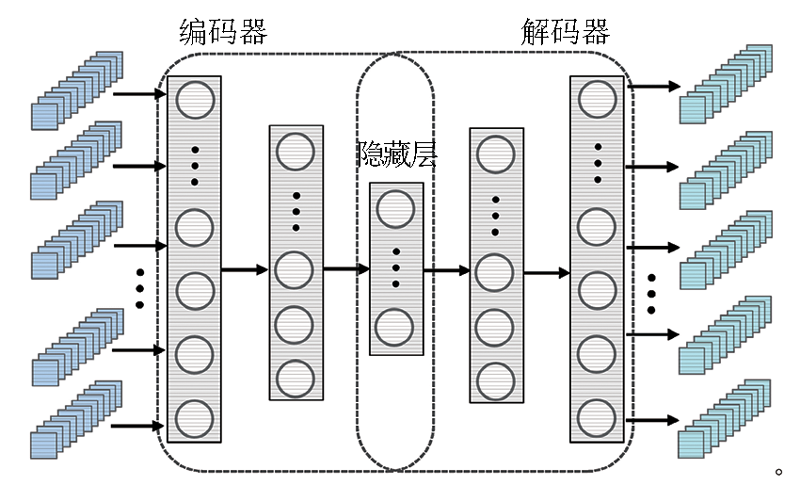

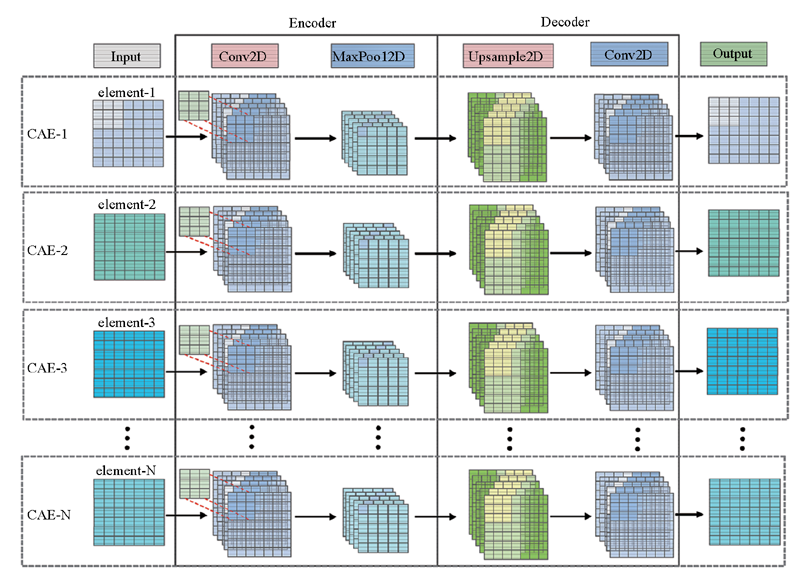

AE and MCAE network structure

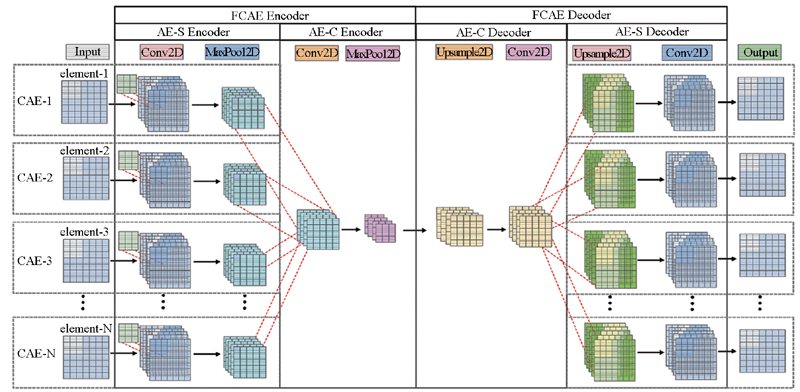

FCAE network structure

Performance comparison of three models

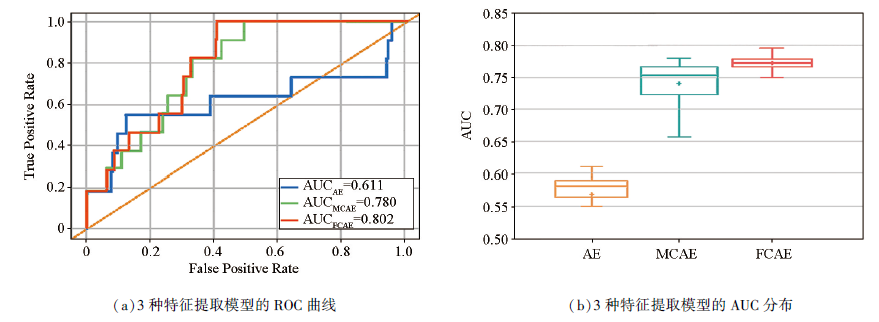

ROC curves and AUC distributions of three feature extraction models

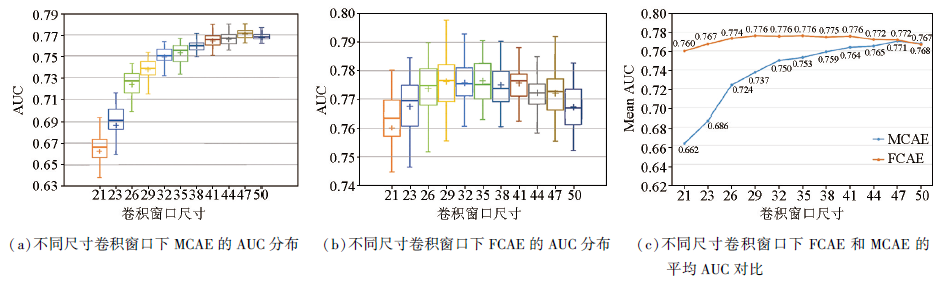

Performance comparison of MCAE and FCAE with different size convolution window

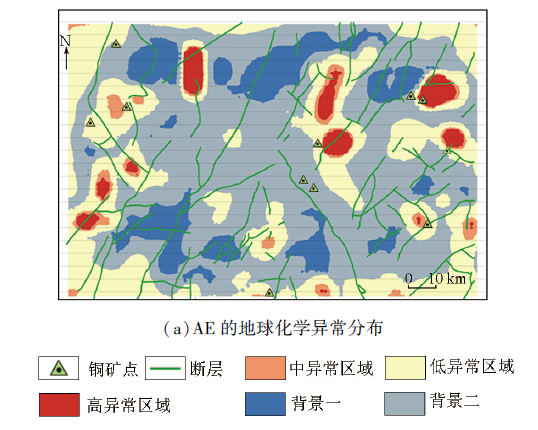

-1 Geochemical anomaly distribution map based on optimal threshold of ROC curve

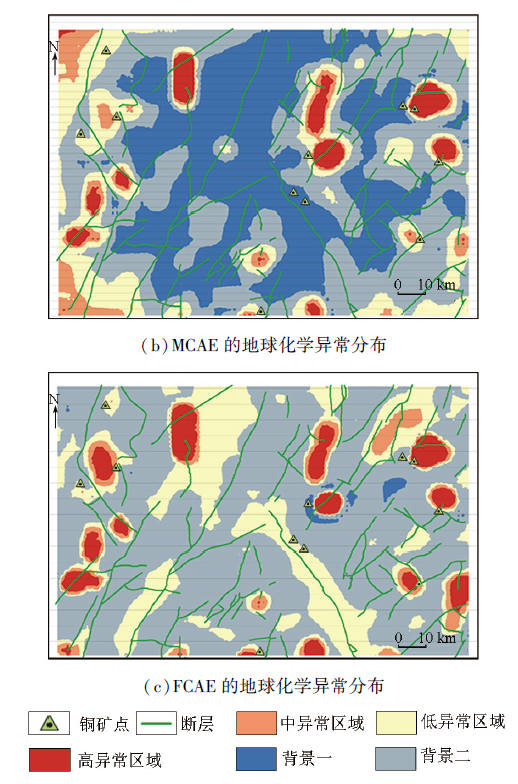

-2 Geochemical anomaly distribution map based on optimal threshold of ROC curve
