鄂尔多斯盆地北部杭锦旗地区中元古界断陷—坳陷层地层特征

doi:10.11720/wtyht.2020.1345

Abstract
Figure/Table
References
Related Citation (15)

Download: PDF (11584 KB) HTML (0 KB)
Export: BibTeX | EndNote (RIS)

Abstract

Based on the 2D seismic interpretation in the Hanggin Banner area of northern Ordos Basin,the authors found a rift sequence under Paleozoic strata.On the basis of previous studies and combined analysis of well,seismic data,outcrop and geochemical data in Hanggin Banner area,the stratigraphic framework,possible geological epochs,sedimentary features and petroleum geological conditions of the rift were analyzed.This paper provides new ideas for the exploration of oil and gas in Hanggin Banner area.The Proterozoic strata in the study area is controlled by the SN-trending normal faults of Tamuhan and Dalao,where two half graben fault depressions were formed in western and central part of the study area respectively.The fault depression layers overlie Archean strata and underlie Paleozoic strata in angular unconformities.According to the unmetamorphic terrigenous clastic rocks and tectonic sequence features,it is inferred that fault depression layers should be the middle Proterozonic Changcheng Formation.Drilling and seismic data reveal that the fault depression layer contains fan-delta coarse sandstone and fine conglomerate intercalated locally with neritic mudstones.Depression layer is widely distributed and contains fan-delta sandstone,fine conglomerate and tidal flat brown mudstone.The sandstone within fault depression layers contains coal genetic gas originating from Upper Paleozoic strata.

Key words： Hanggin Banner area fault and depression strata Mesoproterozoic petroleum and gas geological conditions

Received: 09 July 2019 Published: 26 October 2020

P631.4

Corresponding Authors: PU Ren-Hai E-mail: nqsun@chd.edu.cn;purenhai@nwu.edu.cn

	Service

	E-mail this article
	Add to my bookshelf
	Add to citation manager
	E-mail Alert
	RSS
	Articles by authors
	Nai-Quan SUN
	Liang LI
	Ren-Hai PU
	Sheng-Qin PENG

Cite this article:

Nai-Quan SUN,Liang LI,Ren-Hai PU, et al. The fault and depression characteristics of Mesoproterozoic strata in Hanggin Banner area,northern of Ordos Basin[J]. Geophysical and Geochemical Exploration, 2020, 44(5): 1144-1152.

URL:

https://www.wutanyuhuatan.com/EN/10.11720/wtyht.2020.1345 OR https://www.wutanyuhuatan.com/EN/Y2020/V44/I5/1144

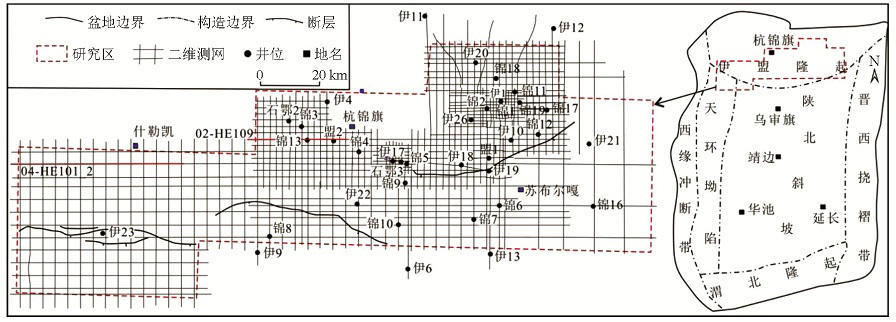

2-D seismic survey grid of study area

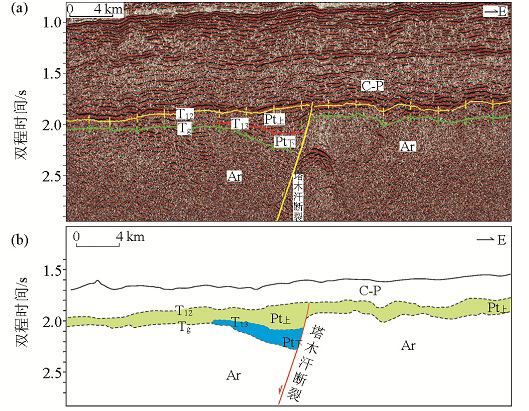

The 2D-seismic profile 04-HE101_2 of the fault (a) and geological interpretation profile (b)

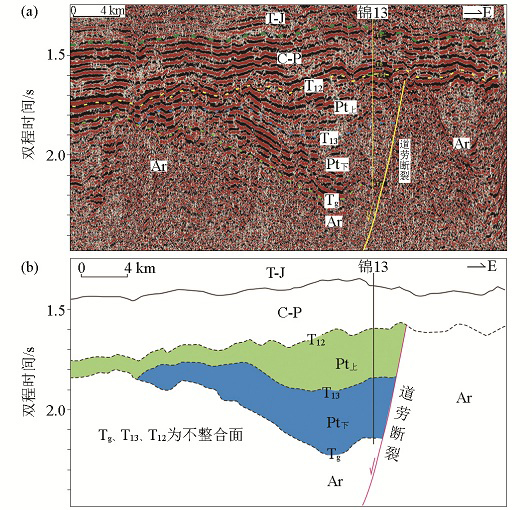

The 2D-seismic profile 02-HE109 of the fault(a) and geological interpretation profile(b)

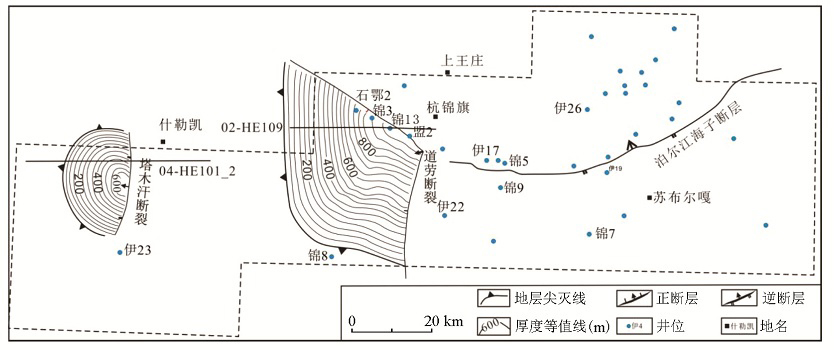

Thickness map of fault strata of Mesoproterozoic in Hangjinqi area

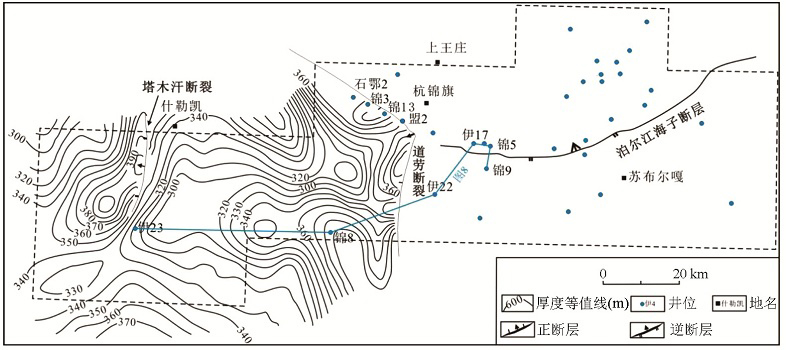

Thickness map of depression strata of Mesoproterozoic in Hangjinqi area

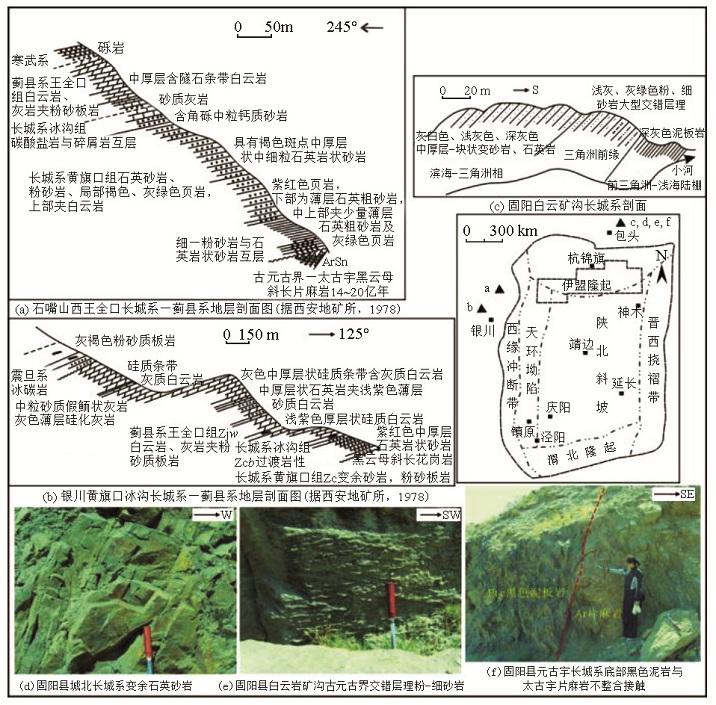

The field outcrop of Mesoproterozoic

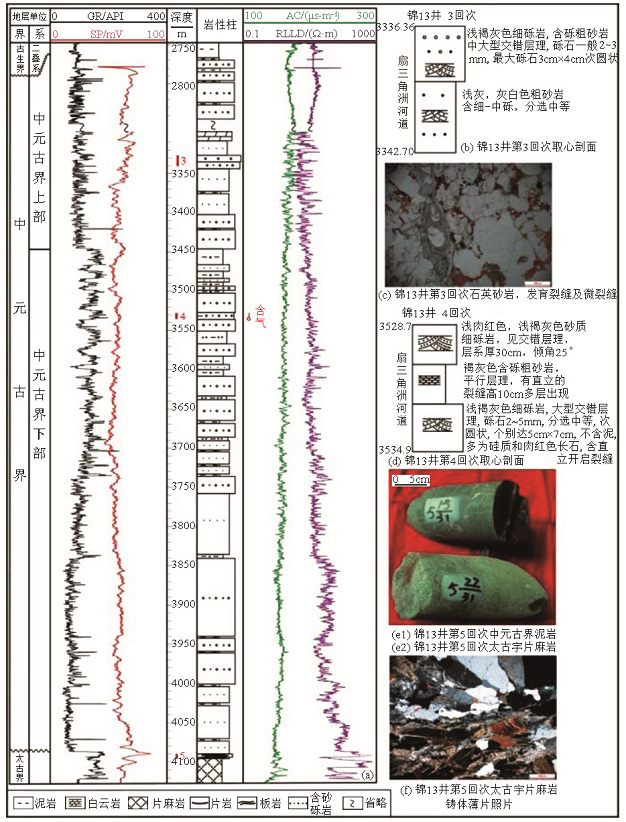

Comprehensive geological histogram of well Jin13 of Mesoproterozoic in Hangjinqi area

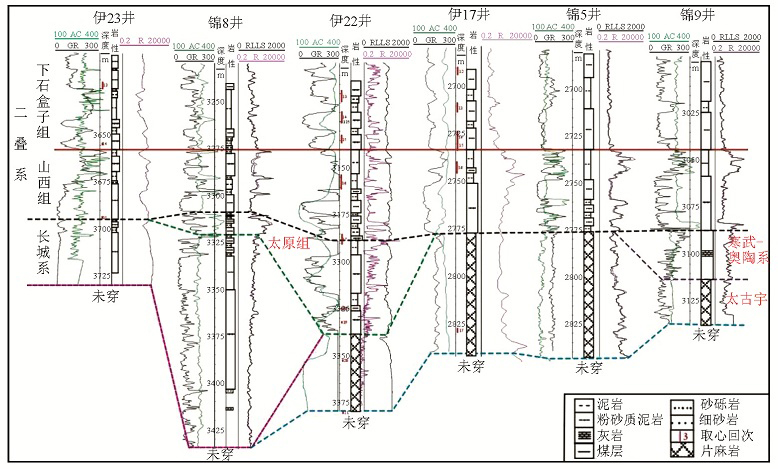

A cross-well profile of wells Yi23,Jin37,Yi22,Yi17,Jin5,and Jin9 of Mesoproterozoic-Lower Paleozoic in Hangjinqi area

15]
">

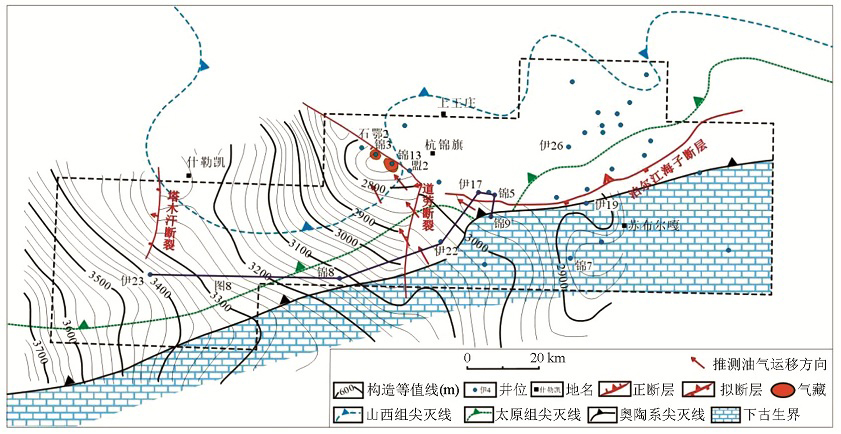

Structural and modes of gas migration and accumulation of Lower Paleozoic in Hangjinqi area^[15]

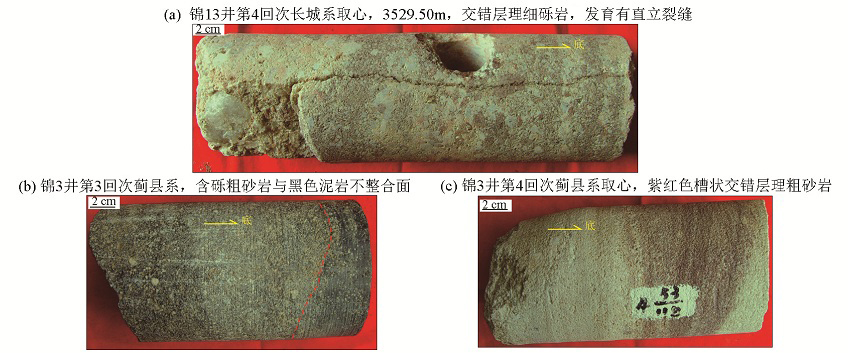

Crop and drilled core observations of Mesoproterozoic in wells Jin13 and Jin3

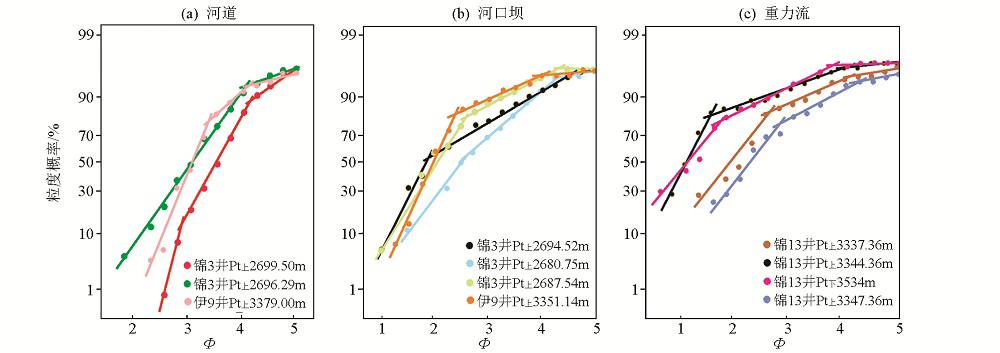

The cumulative probability curves of Mesoproterozoic core grain sizes in Hangjinqi area

Sedimentary facies map of depression strata of Mesoproterozoic in Hangjinqi area

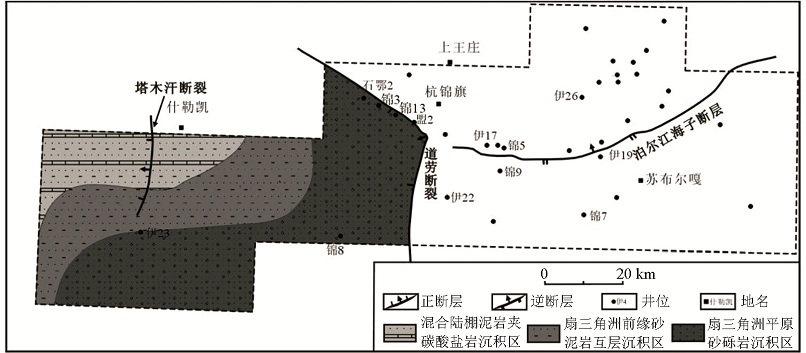

Sedimentary facies map of fault strata of Mesoproterozoic in Hangjinqi area

[1]	Zhao G C Guo J H. Precambrian geology of China:Preface[J]. Precambrian Research, 2012, 222-223:1-12.
[2]	Roberts N M W. The boring billion-Lid tectonics,continental growth and environmental change associated with the Columbia supercontinent[J]. Geoscience Frontiers, 2013,4(6):681-691.
[3]	Frolov S V, Akhmanov G G, Bakay E A, et al. Meso-Neoproterozoic petroleum systems of the Eastern Siberian sedimentary basins[J]. Precambrian Research, 2015,259:95-113.
[4]	邱啸飞, 凌文黎, 柳小明. 扬子陆核与神农架地块中元古代相互关系:来自锆石U-Pb年代学和Hf同位素的约束[J]. 地质科技情报, 2014,33(2):1-7.
[4]	Qiu X F, Ling W L, Liu X M. Correlation between the Mesoproterozoic Yangtze Continental Nucleus and the Shennongjia Area:Constraints from Zircon Geochronological and Hf Isotope[J]. Geological Science and Technology Information, 2014,33(2):1-7.
[5]	王铁冠, 韩克猷. 论中—新元古界的原生油气资源[J]. 石油学报, 2011,32(1):1-7.
[5]	Wang T G, Han K Y. On Meso-Neoproterozoic primary petroleum resources[J]. Acta Petrolei Sinica, 2011,32(1):1-7.
[6]	Kontorovich A E, Kashirtsev V A, Melenevskii V N, et al. Composition of biomarker-hydrocarbons in genetic families of Precambrian and Cambrian oils of the Siberian platform[J]. Doklady Earth Sciences, 2005,403(5):715-718.
[7]	Ding W L, Dai P, Zhu D W, et al. Fractures in continental shale reservoirs:a case study of the Upper Triassic strata in the SE Ordos Basin,Central China[J]. Geological Magazine, 2016,153(4):663-680.
[8]	Kuznetsov V G. Riphean hydrocarbon reservoirs of the Yurubchen-Tokhom Zone,Lena-Tunguska Province,NE Russia[J]. Journal of Petroleum Geology, 2007,20(4):459-474.
[9]	Murray G E, Kaczor M J, McArthur R E. Indigenous Precambrian petroleum revisited[J]. AAPG Bulletin, 1980,64(10):1681-1700.
[10]	王铁冠. 燕山地区震旦亚界油苗的原生性及其石油地质意义[J]. 石油勘探与开发, 1980(2):36-54.
[10]	Wang T G. Prototype of oil seedlings in Aurora Subboundary in Yanshan area and its petroleum geological significance[J]. Oil Exploration and Development, 1980(2):36-54.
[11]	刘树根, 马永生, 孙玮, 等. 四川盆地威远气田和资阳含气区震旦系油气成藏差异性研究[J]. 地质学报, 2008,82(3):328-337.
[11]	Liu S G, Ma Y S, Sun W, et al. Studying on the differences of Sinian natural gas pools between Weiyuan gas field and Ziyang gas-brone area,Sichuan Basin[J]. Acta Geologica Sinica, 2008,82(3):328-337.
[12]	Yang M H, Li L, Zhou J, et al. Mesozoic structural evolution of the Hangjinqi area in the northern Ordos Basin,North China[J]. Marine and Petroleum Geology, 2015,66(4):695-710.
[13]	王海然, 赵红格, 乔建新, 等. 鄂尔多斯盆地西北部早—中侏罗世延安期沉积边界恢复[J]. 地质科技情报, 2013,32(4):38-42.
[13]	Wang H R, Zhao H G, Qiao J X, et al. Restoration of the Sedimentary Boundary of the Yan'an Period of Early-Middle Jurassic,the Northwest of Ordos Basin[J]. Geological Science and Technology Information, 2013,32(4):38-42.
[14]	Yu J, Yang Y J, Du J L. Sedimentation during the transgression period in Late Triassic Yanchang Formation,Ordos Basin[J]. Petroleum Exploration and Development, 2010,37(2):181-187.
[15]	纪文明, 李潍莲, 刘震, 等. 鄂尔多斯盆地北部杭锦旗地区上古生界气源岩分析[J]. 天然气地球科学, 2013,24(5):905-914.
[15]	Ji W M, Li W L, Liu Z, et al. Research on the Upper Paleozoic gas source of the Hangjinqi Block in the Northern Ordos basin[J]. Natural Gas Geoscience, 2013,24(5):905-914.
[16]	李潍莲, 纪文明, 刘震, 等. 鄂尔多斯盆地北部泊尔江海子断裂对上古生界天然气成藏的控制[J]. 现代地质, 2015,29(3):584-590.
[16]	Li W L, Ji W M, Liu Z, et al. Control of Boerjianghaizi fault on gas accumulation of Upper Paleozoic in Northern Ordos Basin[J]. Geoscience, 2015,29(3):584-590.
[17]	国家地质总局西安地质矿产研究所前寒武纪组. 宁夏贺兰山区震旦亚界[J]. 西北地质, 1978: 6-18.
[17]	Former Cambrian Group of Xi'an Institute of Geological and Mineral Production of the National Geological Administration. Aurora sub-boundary in Helan Mountain, Ningxia[J]. Northwestern Geology, 1978: 6-18.
[18]	彭胜琴. 杭锦旗地区中晚元古界油气地质特征与勘探潜力分析[D]. 西安:西北大学, 2009.
[18]	Peng S Q. Analysis of petroleum geological characteristics and exploration potential of Mesoproterozoic strata in Hanggin Banner area[D]. Xi'an:Northwest University, 2009.
[19]	魏魁生, 徐怀大, 叶淑芬. 鄂尔多斯盆地北部奥陶系碳酸盐岩层序地层研究[J]. 地球科学-中国地质大学学报, 1996,21(1):1-10.
[19]	Wei K S, Xu H D, Ye S F. Carbonate sequence stratigraphy of Ordovician in the Northern Ordos Basin[J]. Earth Science-Journal of China University of Geosciences, 1996,21(1):1-10.
[20]	Liu D, Zhang W Z, Kong Q F, et al. Lower Paleozoic source rocks and natural gas origins in Ordos Basin,NW China[J]. Petroleum Exploration and Development, 2016,43(4):591-601.
[21]	陈友智, 付金华, 杨高印, 等. 鄂尔多斯地块中元古代长城纪盆地属性研究[J]. 岩石学报, 2016,32(3):856-864.
[21]	Chen Y Z, Fu J H, Yang G Y, et al. Researches on basin property of Ordos block during Mesoproterozoic Changcheng Period[J]. Acta Petrologica Sinica, 2016,32(3):856-864.
[22]	Goodwin A M. Principles of Precambrian Geology[M].2nd Edition. California: Academic Press, 1996: 276-277.
[23]	Zhai M G. Precambrian tectonic evolution of the North China Craton[C]// Malpas J,Fletcher C J N,Ali J R,et al,eds.Aspects of the Tectonic Evolution of China.Geological Society,London,Special Publications, 2004,226:57-72.
[24]	刘超辉, 刘福来. 华北克拉通中元古代裂解事件:以渣尔泰—白云鄂博—化德裂谷带岩浆与沉积作用研究为例[J]. 岩石学报, 2015,31(10):3107-3128.
[24]	Liu C H, Liu F L. The Mesoproterozoic rifting in the North China Craton:A case study for magmatism and sedimentation of the Zhaertai-Bayan Obo-Huade rift zone[J]. Acta Petrologica Sinica, 2015,31(10):3107-3128
