Magnetic field characteristics and geological significance of Sichuan basin |
Bing LI, Yan-Bing SONG, Qi WANG, Zhi-Bo WANG, Liang GUO, Jiu-Ming JIANG, Sheng-Bo GENG, Mao-Sheng DENG, De-Wen ZHOU |
China Aero Geophysical Survey and Remote Sensing Center for Land and Resources,Beijing 100083,China |
|
|

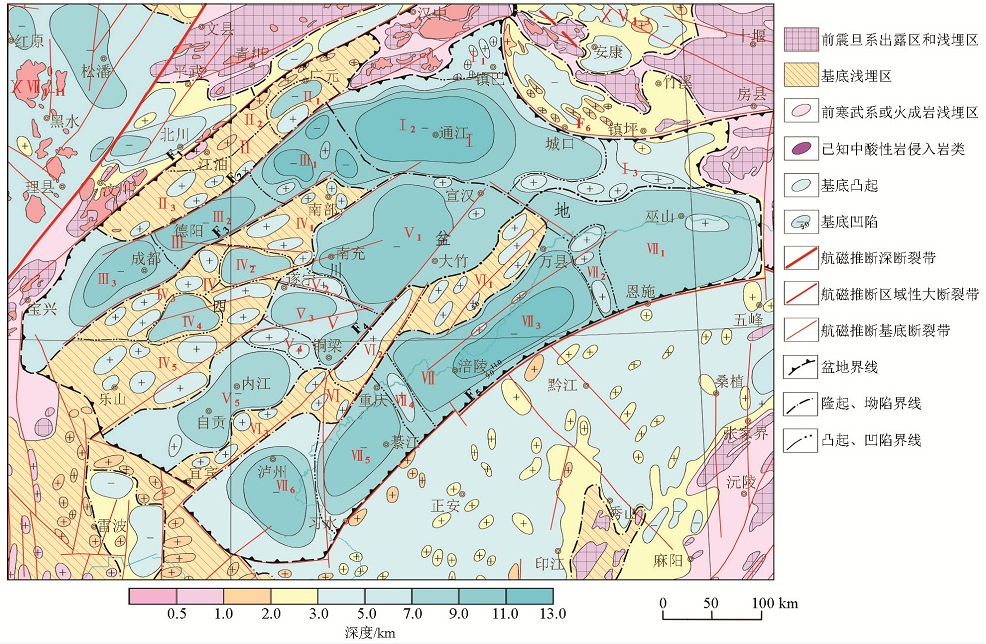

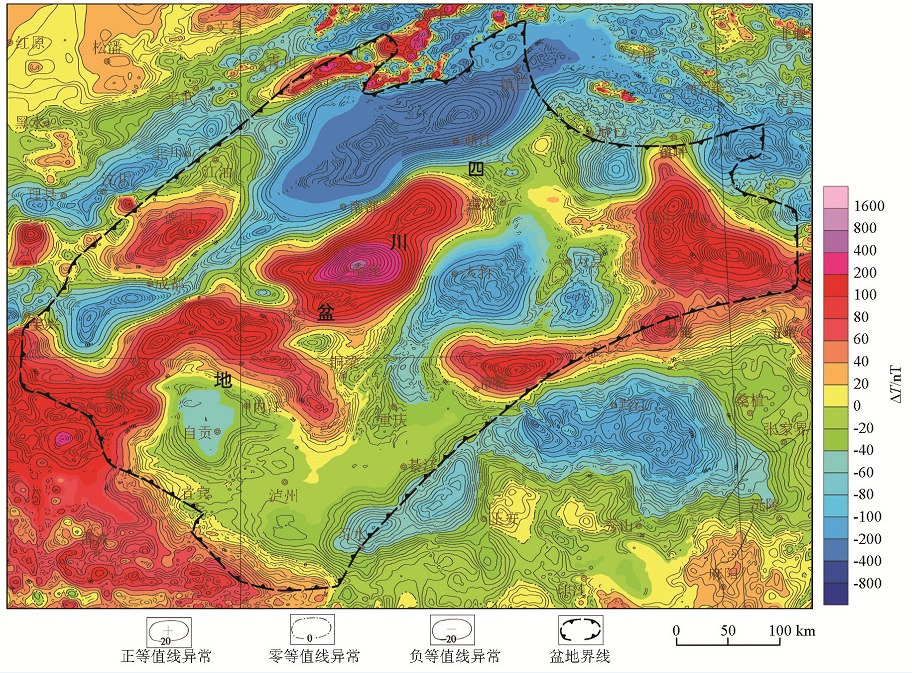

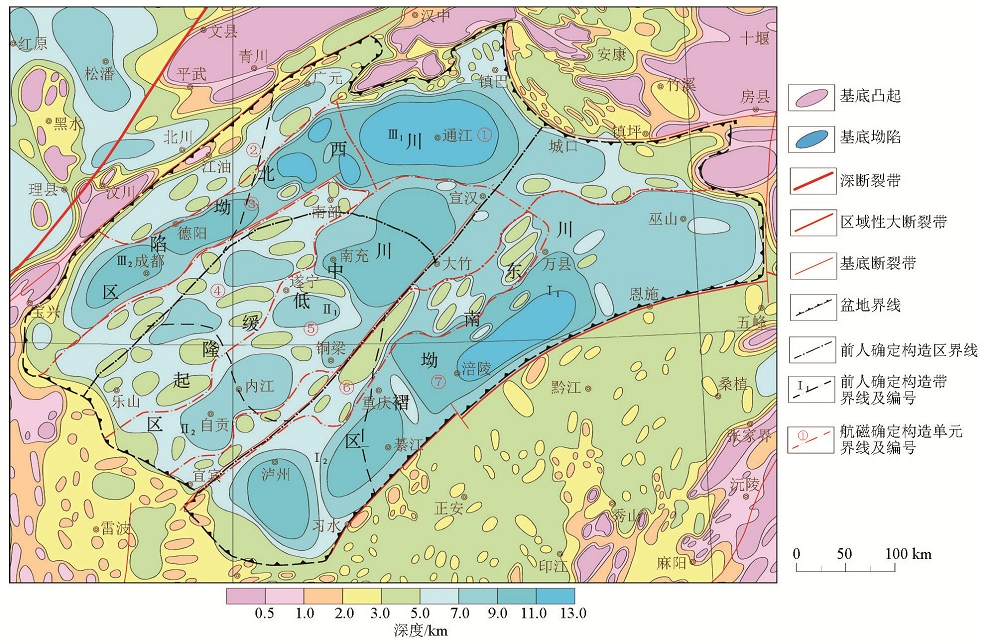

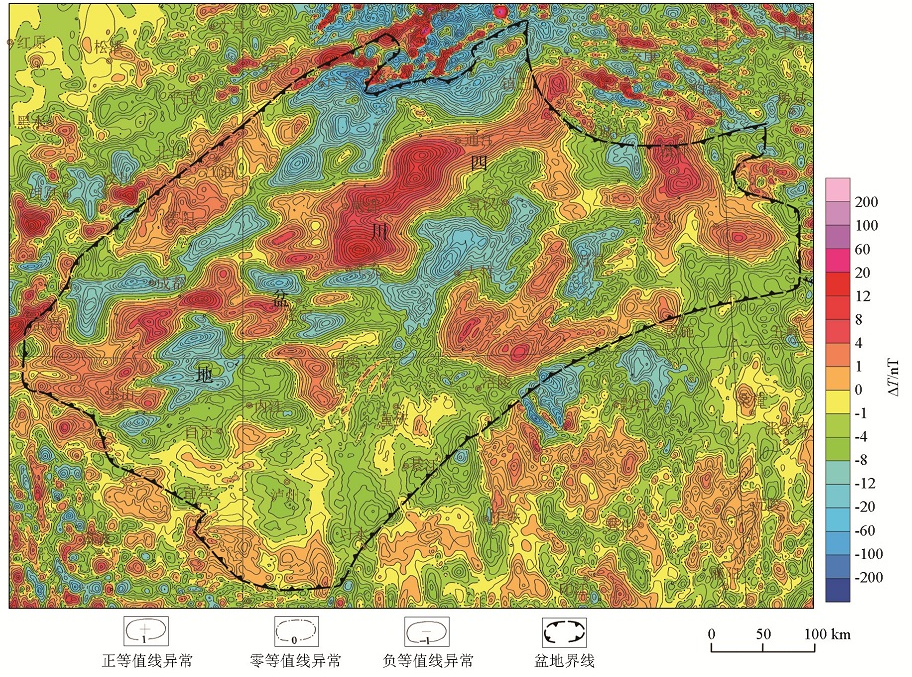

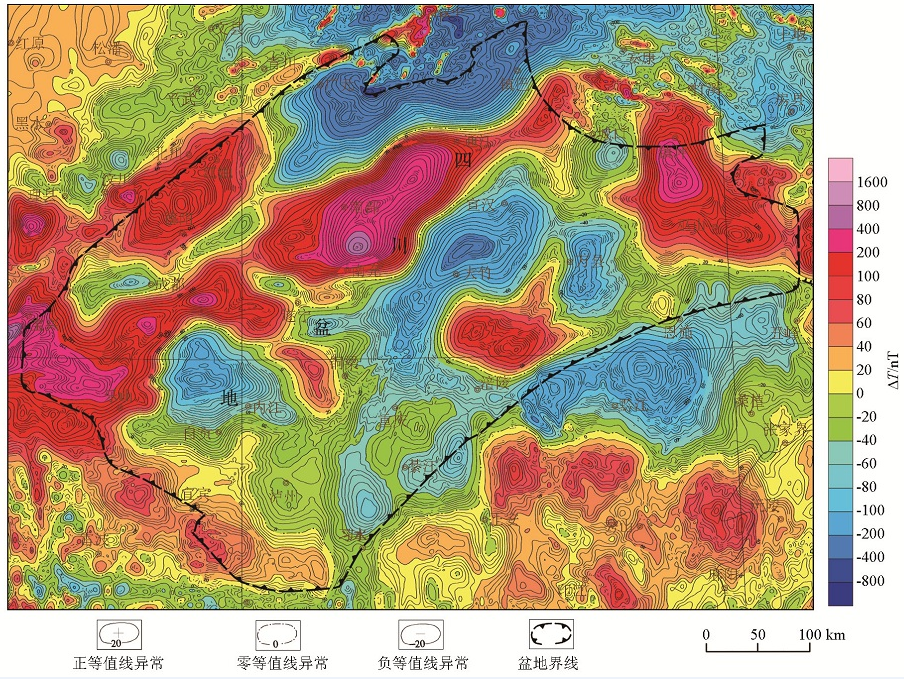

Abstract According to aeromagnetic and gravitational data,the boundary and scope of Sichuan basin were determined based on the analyses of the characteristics of gravity and magnetic fields.And on the basis of compiling depth map of the metamorphic basement and structuring zoning map,the research has been conducted on the basin's basement structure,characteristics and features of depth change,structure framework,and caprock thickness.The research indicates that the metamorphic basement is composed of Proterozoic metamorphic series,and the buried depth of crystalline basement can reach to 5 000 to 20 000 meters.The caprock is the layers of Ediacaran,Paleozoic,and Mesozoic.The occurrence and development of the basin are restricted by near-northeast and northwest-west construction,which has a pattern of four depression and three uplifts.All these new cognitions and conclusions provide a reference for further oil and gas exploration in the basin.
|
Received: 21 November 2017
Published: 24 October 2018
|
|
|
|
|
|
|
构造单元编号 | 构造单元名称 | 面积/km2 | 沉积岩厚度/m | Ⅰ | 川东南坳褶区 | 76000 | | Ⅰ1 | 川东高陡褶带 | 50000 | 10000 | Ⅰ2 | 川南低陡褶带 | 26000 | 8000 | Ⅱ | 川中低缓隆起区 | 58000 | | Ⅱ1 | 川中平缓褶带 | 37000 | 9000 | Ⅱ2 | 川西南低陡褶带 | 21000 | 7000 | Ⅲ | 川西北坳陷区 | 66000 | | Ⅲ1 | 川北低平缓褶带 | 34000 | 12000 | Ⅲ2 | 川西低陡褶带 | 32000 | 10000 |
|
|
|
|
|
|
|
|
钻井编号 | 钻遇地层 | 井深/m | 计算深度/m | 差值/m | 相对误差/% | 长5井 | 元古宇 | 8200 | 8000 | 200 | 2.5 | 太4井 | 元古宇 | 8800 | 8600 | 219 | 2.5 | 付15井 | 元古宇 | 7900 | 8000 | 100 | 1.3 | 威8井 | 震旦系顶 | 3220 | 3600 | 380 | 10.5 | 威15井 | 元古宇 | 3863 | 4100 | 237 | 5.7 | 潼南东北 | 震旦系顶 | 6011 | 6500 | 489 | 7.5 |
|
|
井位 | 钻遇地层 | 井深/m | 计算深度/m | 航磁确定构造 | 南充东 | 中三叠统 | 3002 | 9000 | 基底坳陷 | 岳池东北 | 下三叠统 | 3413 | 9000 | 基底坳陷 | 潼南东南 | 下三叠统 | 2191 | 7200 | 基底坳陷 | 遂宁西 | 震旦系 | 3200 | 7200 | 基底坳陷 |
|
|
|
|
[1] |
郭正吾, 邓康龄, 韩永辉 . 四川盆地的形成与演化[M]. 北京: 地质出版社, 1996.
|
[2] |
宋鸿彪, 罗志立 . 四川盆地基底及深部地质结构研究的进展[J]. 地学前缘, 1995,2(3-4):231-237.
|
[3] |
罗志立 . 四川盆地基地结构的新认识[J]. 成都理工学院学报, 1998,25(2):191-200.
|
[4] |
许效松, 刘宝珺, 牟传龙 , 等. 中国中西部海相盆地分析与油气资源[M]. 北京: 地质出版社, 2004.
|
[5] |
罗志立 . 川中是一个古陆核吗[J]. 成都地质学院学报, 1986,13(3):65-73.
|
[6] |
四川省地质矿产局. 四川省区域地质志[M]. 北京: 地质出版社, 1991.
|
[7] |
李国玉, 吕鸣岗, 张健 , 等. 中国含油气盆地图集[M]. 北京: 石油工业出版社, 2002: 185-194.
|
[8] |
丁金琪 . 四川盆地油气地质特征—纪念黄汲清先生百岁诞辰[J]. 石油实验地质, 2004,26(2):115-120.
|
[9] |
喻顾, 李忠权, 杨渊宇 , 等. 四川盆地威远地区构造演化特征及其对下古生界油气富集的控制作用[J]. 天然气勘探与开发, 2013,26(2):115-119.
|
[10] |
李占奎, 丁燕云 . 大巴山推覆构造特征的探讨[J]. 物探与化探, 2007,31(6):495-498.
|
[11] |
管志宁, 安玉林 . 区域磁异常定量解释[M]. 北京: 地质出版社, 1991.
|
[12] |
朱英 . 斜磁化切线法和特征点图解法[M]. 北京: 地质出版社, 2012.
|
[13] |
郭志宏, 于长春, 周坚鑫 . 低磁纬度区ΔT剖面磁异常场源深度计算的切线法[J]. 物探与化探, 2003,27(5):391-394.
|
[14] |
罗良, 漆家福, 张明正 . 四川盆地周缘冲断带构造演化及变形差异性研究[J]. 地质论评, 2015,61(3):525-533.
|
[15] |
熊盛青, 范正国, 张洪瑞 , 等. 中国陆域航磁系列图,1/250万[M]. 北京: 地质出版社, 2015.
|
[16] |
熊盛青, 丁燕云, 李占奎 , 等. 中国陆域航磁与地质构造特征[M]. 北京: 地质出版社, 2016.
|
[17] |
杨华 , 等. 四川盆地航空物探测量[R]. 1973.
|
