戈壁区效率可调动态地气法探测隐伏砂岩铀矿的试验及效果

doi:10.11720/wtyht.2025.1236

摘要
图/表
参考文献
相关文章
Metrics

全文: PDF(4513 KB) HTML
输出: BibTeX | EndNote (RIS)

摘要在戈壁覆盖区已知砂岩型铀矿床及铀矿点各部署1条测线开展地气法探测隐伏砂岩铀矿试验。结果表明,采用效率可调动态地气采样技术,在已知隐伏砂岩铀矿体上方均能捕获到以U元素为主、多种伴(共)生元素同步出现的多个相邻异常峰形成的地气异常区,这个地气异常区的宽度与矿体埋深大约从50 m起至矿体倾覆端的边界位置止的平面投影大体相一致,因此,这种地气异常区与揭示的异常区宽度是隐伏砂岩铀矿的重要地气找矿标志。研究所捕获地气异常与试验区已知矿体赋存深度、品位等因素之间的关系,证实效率可调动态地气法探测隐伏砂岩铀矿的深度至少超过756.4 m,U的地气异常幅度随矿体品位增加而增高,而剖面上砂岩铀矿的地气探测点距不宜超过50 m。试验证明了地气法在戈壁区探测隐伏砂岩铀矿是可行且有效的。

	服务

	把本文推荐给朋友
	加入引用管理器
	E-mail Alert
	RSS
	作者相关文章
	刘国安
	周四春
	刘晓辉
	李盛富
	张明正
	秦明宽
	许强
	王广西
	胡波

关键词 ：地气法探测隐伏砂岩铀矿试验, 效率可调动态地气法, 地气找矿标志

Abstract：

Experiments on prospecting for concealed sandstone-type uranium deposits using the dynamic geogas method were conducted in a gobi desert region by deploying a survey line in each known sandstone-type uranium deposit and uranium ore occurrence. The results indicate that the dynamic geogas sampling technology with adjustable efficiency detected geogas anomaly zones above all known concealed sandstone-type uranium deposits. These zones were characterized by multiple adjacent anomaly peaks composed primarily of uranium (U) and multiple associated (paragenetic) elements, with widths approaching those of the surface projections in a range from the ore bodies with a burial depth of approximately 50 m to the boundaries of the ore bodies' overturning ends. Therefore, the geogas anomaly zones and their widths serve as important ore-prospecting indicators for concealed sandstone-type uranium deposits. The relationships of captured geogas anomalies with factors such as the depths and grades of ore bodies in the experimental area confirm that the dynamic geogas method with adjustable efficiency can detect concealed sandstone-type uranium deposits at depths exceeding 756.4 m. The relationships also reveal that the amplitude of U geogas anomalies increases with the ore body grade and that the spacing between geogas detection points on the profile for sandstone-type uranium deposits should not exceed 50 m. The experiment corroborates that the geogas method is feasible and effective in detecting concealed sandstone-type uranium deposits in a gobi desert region.

Key words： experiment on prospecting for concealed sandstone-type uranium deposits using the geogas method dynamic geogas technology with adjustable efficiency ore-prospecting indicator for geogas

收稿日期: 2024-05-23 修回日期: 2024-07-17 出版日期: 2025-06-20

ZTFLH:

P632

基金资助:国防科工局核能开发项目(地HTLM2101)

通讯作者: 周四春(1954-),男,成都理工大学教授,主要从事深部找矿技术方法研究及核技术应用工作。Email:121905290@qq.com

作者简介: 刘国安(1987-),男,博士研究生,核科学与技术专业,高级工程师,主要从事深部找矿技术方法与辐射环境研究工作。Email:372092559@qq.com

引用本文:

刘国安, 周四春, 刘晓辉, 李盛富, 张明正, 秦明宽, 许强, 王广西, 胡波. 戈壁区效率可调动态地气法探测隐伏砂岩铀矿的试验及效果[J]. 物探与化探, 2025, 49(3): 538-547.
LIU Guo-An, ZHOU Si-Chun, LIU Xiao-Hui, LI Sheng-Fu, ZHANG Ming-Zheng, QIN Ming-Kuan, XU Qiang, WANG Guang-Xi, HU Bo. Experiments and effects on prospecting for concealed sandstone-type uranium deposits in a gobi desert region using the dynamic geogas method with adjustable efficiency. Geophysical and Geochemical Exploration, 2025, 49(3): 538-547.

链接本文:

https://www.wutanyuhuatan.com/CN/10.11720/wtyht.2025.1236 或 https://www.wutanyuhuatan.com/CN/Y2025/V49/I3/538

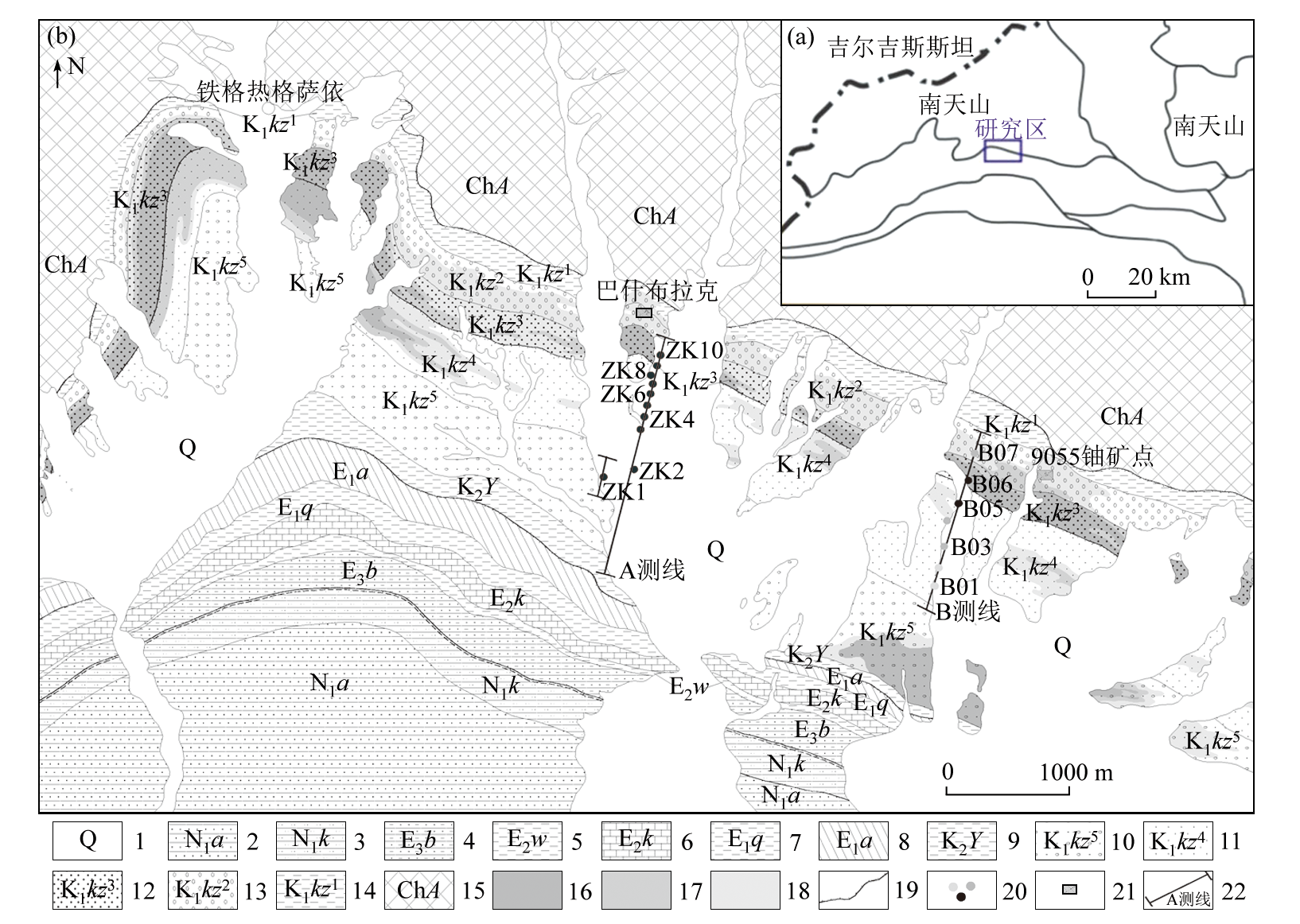

Fig.1 研究区位置(a)及地质特征示意(b)
1—第四系;2—安居安组;3—克孜洛依组;4—巴什布拉克组;5—乌拉根组;6—卡拉塔尔组;7—齐姆根组;8—阿尔塔什组;9—英吉沙群;10—克孜勒苏群第一岩性段;11—克孜勒苏群第二岩性段;12—克孜勒苏群第三岩性段;13—克孜勒苏群第四岩性段;14—克孜勒苏群第五岩性段;15—长城系阿克苏群;16—氧化带Ⅰ;17—氧化带Ⅱ;18—氧化带Ⅲ;19—地层界线;20—工业矿孔、矿化孔、无矿孔;21—铀矿床/点;22—地气试验测线

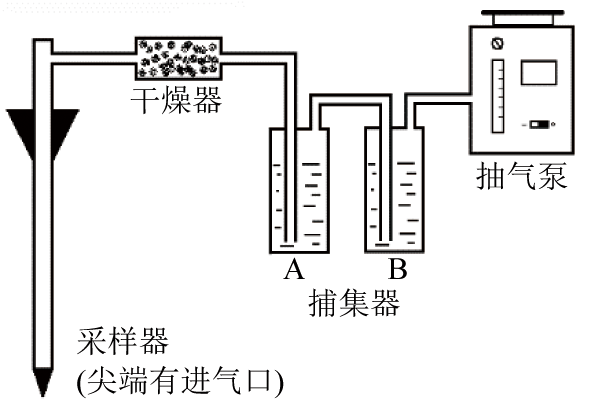

Fig.2 效率可调的双捕集器串联式动态地气采样装置结构

Table 1 可行性试验中U的基本测量与检查测量对比

Table 2 A测线、B测线地气测量U元素参数统计

Table 3 用于编制地气测量成果图的元素异常下限值统计

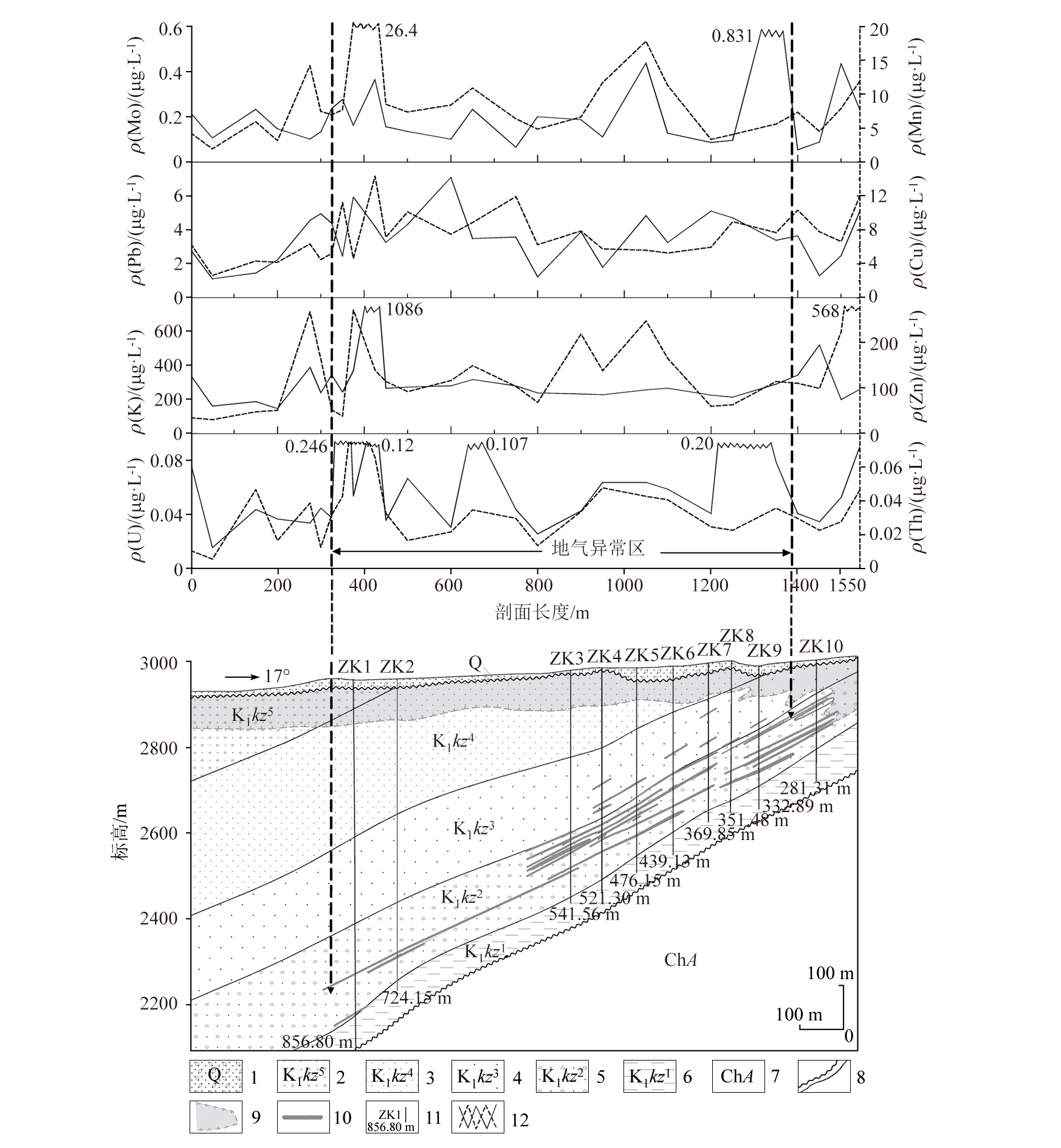

Fig.3 A测线地气试验U、Th、K、Zn、Pb、Cu、Mo、Mn元素剖面
1—第四系;2—下白垩统克孜勒苏群第五岩性段;3—下白垩统克孜勒苏群第四岩性段;4—下白垩统克孜勒苏群第三岩性段;5 —下白垩统克孜勒苏群第二岩性段;6—下白垩统克孜勒苏群第一岩性段;7—中元古界阿克苏群;8—整合界线、角度不整合界线;9—氧化带;10—工业矿体、矿化体、异常体;11—钻孔编号、深度;12—地气测量曲线

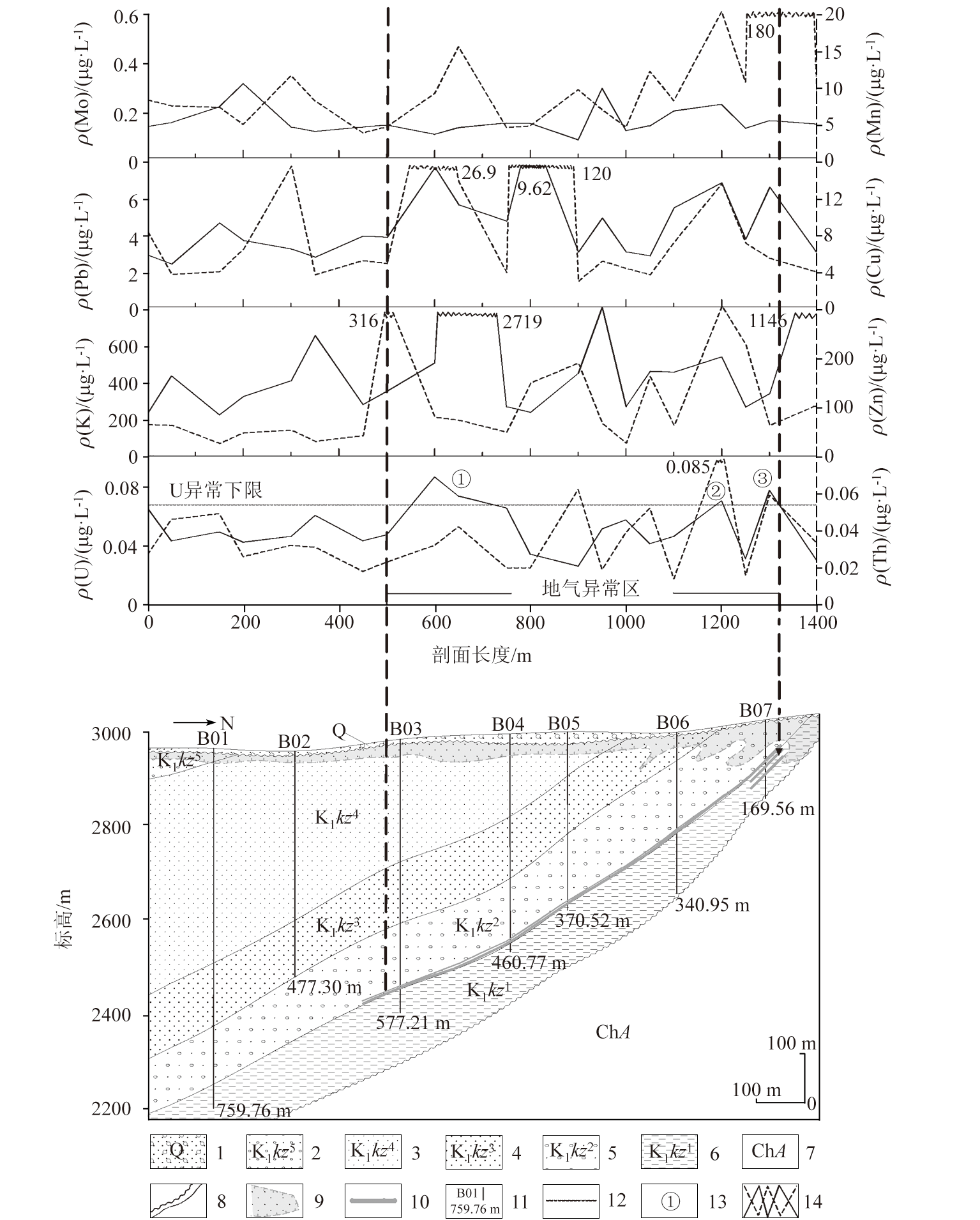

Fig.4 B测线地气试验U、Th、K、Zn、Pb、Cu、Mo、Mn元素剖面
1—第四系;2—下白垩统克孜勒苏群第五岩性段;3—下白垩统克孜勒苏群第四岩性段;4—下白垩统克孜勒苏群第三岩性段;5 —下白垩统克孜勒苏群第二岩性段;6—下白垩统克孜勒苏群第一岩性段;7—中元古界阿克苏群;8—整合界线、角度不整合界线;9—氧化带;10—工业矿体、矿化体、异常体;11—钻孔编号、深度;12—地气U异常下限;13—地气U异常编号;14—地气测量曲线

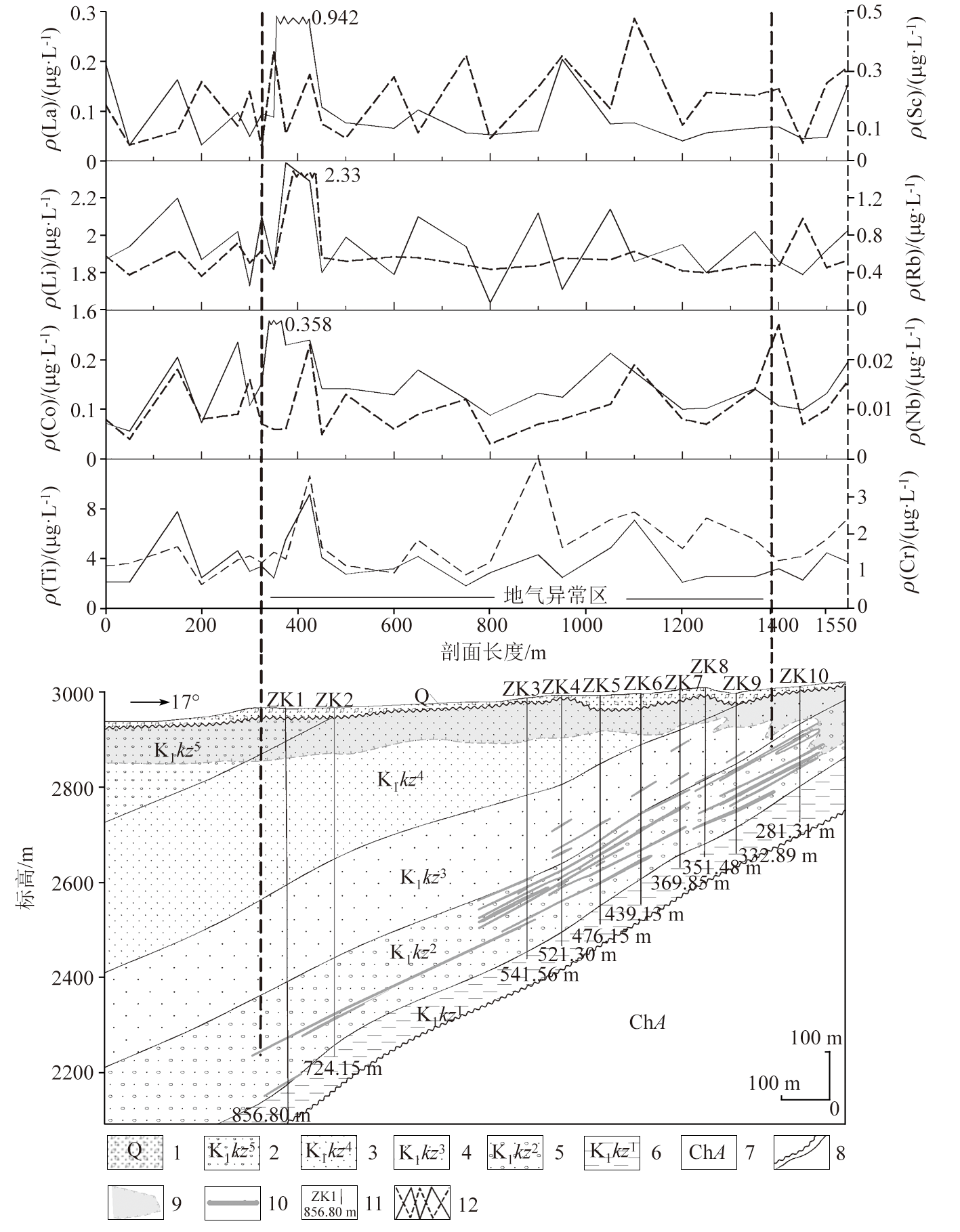

Fig.5 A测线地气试验Ti、Cr、Co、Nb、Li、Rb、La、Sc元素剖面
1—第四系; 2—下白垩统克孜勒苏群第五岩性段; 3—下白垩统克孜勒苏群第四岩性段; 4—下白垩统克孜勒苏群第三岩性段; 5—下白垩统克孜勒苏群第二岩性段; 6—下白垩统克孜勒苏群第一岩性段; 7—中元古界阿克苏群; 8—整合界线、角度不整合界线; 9—氧化带; 10—工业矿体、矿化体、异常体; 11—钻孔编号、深度; 12—地气测量曲线

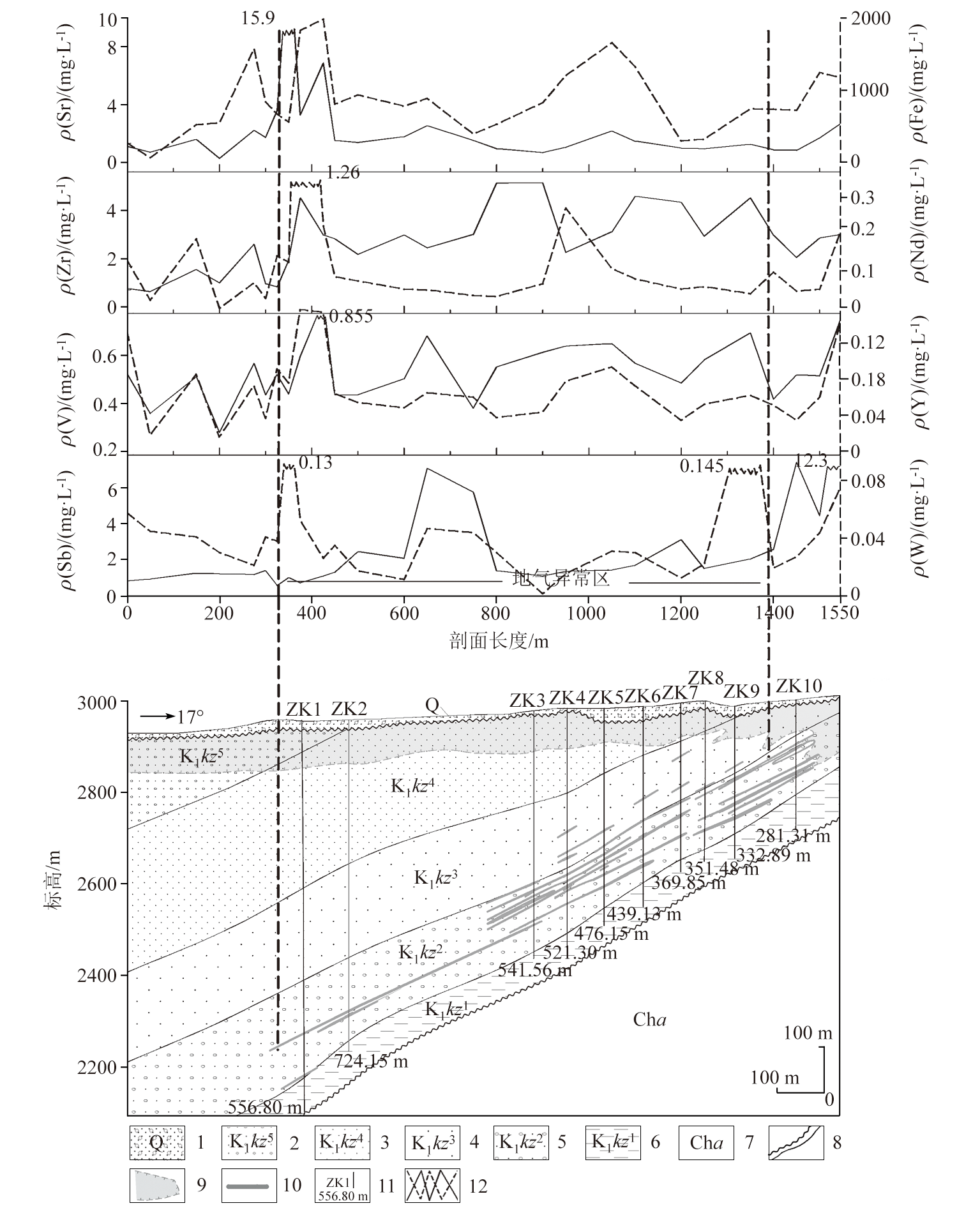

Fig.6 A测线地气试验Sb、W、V、Y、Zr、Nd、Sr、Fe元素剖面
1—第四系; 2—下白垩统克孜勒苏群第五岩性段; 3—下白垩统克孜勒苏群第四岩性段; 4—下白垩统克孜勒苏群第三岩性段; 5—下白垩统克孜勒苏群第二岩性段; 6—下白垩统克孜勒苏群第一岩性段; 7—中元古界阿克苏群; 8—整合界线、角度不整合界线; 9—氧化带; 10—工业矿体、矿化体、异常体; 11—钻孔编号、深度; 12—地气测量曲线
