近垂直反射正演模拟及其地下工程应用

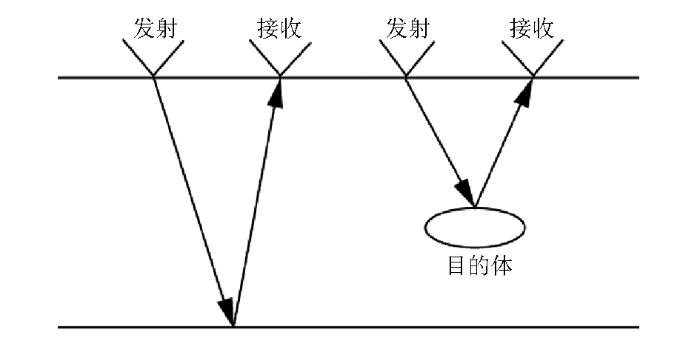

图1 垂直反射法原理示意

Fig.1 The principle sketch of vertical reflection method

1.2 地球物理条件

所有地震勘探方法的地球物理条件均为:介质之间存在波阻抗。波阻抗指岩石中的纵波速度与岩石密度的乘积。

(2)

Z = V_{p} \cdot ρ,

式中,Z为波阻抗,V_p为纵波速度,ρ为岩石密度。

只有当两种介质之间的波阻抗不相等时,即Z₁≠Z₂,地震波才能发生反射,且当Z₁和Z₂差别越大,反射波越强。典型介质的波阻抗参数见表1。

表1 典型岩石波阻抗参数

Table 1 Wave impedance parameters of typical rock

岩石	密度/ (g·cm^-3)	纵波波速/ (m·s^-1)	波阻抗/ (kg·cm^-2·s)
土壤	1.10~2.00	200~800	22~160
黏土	1.50~2.20	1800~2400	270~530
砂岩	2.40~2.70	2300~4000	550~1100
灰岩	2.60~2.90	3000~5500	780~1600
玄武岩	2.80~3.10	4500~7500	1260~2300
水	1.00	1400~1600	140~160

新窗口打开| 下载CSV

1.3 技术优势

近垂直反射法的技术优势如下:

1)地震检波器所接收到的地震波反射信号波形成分单一,不含其他的转换波。当纵波入射时,记录波形仅有反射纵波,因此,该方法的地震资料解释比较简单与直观。

2)适用于探测工作空间有限的区域,例如隧洞、巷道等地下工程。因为常规的地震反射法需选择足够大的地震偏移距,以避免先于目的层反射波到达的直达纵波、横波、声波和折射波等的干扰。

3)该技术区别于常规隧洞超前地质预报技术^[15],不仅能应用于掌子面做超前探测,而且能应用于隧洞边墙、顶拱、底板等任何位置完成多方位的探测。

2 近垂直反射法正演模拟研究

2.1 均匀介质弹性波波动方程

在二维均匀介质中,弹性波波动方程为^[16]:

(3)

\begin{array}{l} ρ \frac{\partial^{2} u}{\partial t^{2}} = (λ + 2 μ) \frac{\partial^{2} u}{\partial x^{2}} + μ \frac{\partial^{2} u}{\partial z^{2}} + (λ + 2 μ) \frac{\partial^{2} u}{\partial x \partial z}, \end{array}

(4)

ρ \frac{\partial^{2} w}{\partial t^{2}} = (λ + 2 μ) \frac{\partial^{2} w}{\partial x^{2}} + μ \frac{\partial^{2} w}{\partial z^{2}} + (λ + 2 μ) \frac{\partial^{2} w}{\partial x \partial z},

式中,u、w分别表示沿x轴、z轴方向的位移,ρ表示介质密度,λ和μ为拉梅常数。

令V_x、V_y表示沿x轴、z轴方向的速度,τ_xx、τ_zz表示沿x轴、z轴方向的正应力,τ_zx表示切应力,可将式(3)和式(4)降阶,得到弹性波一阶速度应力方程:

(5)

\begin{array}{l} \frac{\partial v_{x}}{\partial t} = \frac{1}{ρ} (\frac{\partial τ_{xx}}{\partial x} + \frac{\partial τ_{zx}}{\partial z}), \end{array}

(6)

\frac{\partial v_{z}}{\partial t} = \frac{1}{ρ} (\frac{\partial τ_{zx}}{\partial x} + \frac{\partial τ_{zz}}{\partial z}),

(7)

\frac{\partial τ_{xx}}{\partial t} = (λ + 2 μ) \frac{\partial v_{x}}{\partial x} + λ \frac{\partial v_{z}}{\partial z},

(8)

\frac{\partial τ_{zx}}{\partial t} = μ (\frac{\partial v_{z}}{\partial x} + λ \frac{\partial v_{x}}{\partial z}),

(9)

\frac{\partial τ_{zz}}{\partial t} = λ [\frac{\partial v_{x}}{\partial x} + (λ + 2 μ) \frac{\partial v_{z}}{\partial z}] 。

2.2 差分格式

建立有限差分方程步骤如下:第一步,将网格剖分为合适的大小,并将函数的定义域分解为众多相邻但不重合的子区域,网格剖分的各个交点即为节点;第二步,使用有限差分法对方程进行求解,求解的方法有两种,一种为中心差分法,一种为交错网格法,其中交错网格法具有更高的精度,所以这里采用交错网格法对方程进行离散求解^[17,18,19]。交错网格中速度和应力节点示意如图2所示。

图2

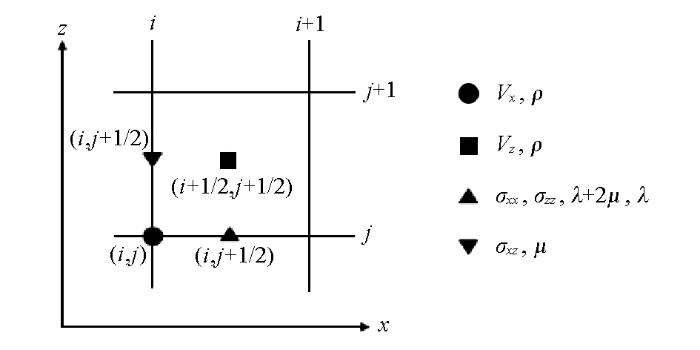

图2 交错网格差分示意

Fig.2 The sketch of staggered grids

2.3 稳定性条件

均匀介质中由谱分析法得到的稳定性条件为:

(10)

V_{P} Δt \sqrt[]{\frac{1}{Δ x^{2}} + \frac{1}{Δ z^{2}}} < 1 。

当Δx=Δz时,可化简为:

(11)

V_{P} \frac{Δ t}{Δ x} < \frac{1}{\sqrt[]{2}} 。

常规差分方程稳定性条件为:

(12)

\sqrt[]{V_{P}^{2} + V_{S}^{2}} \frac{Δ t}{Δ x} < 1 。

由于V_S<V_P,则:

(13)

\sqrt[]{V_{P}^{2} + V_{S}^{2}} \frac{Δ t}{Δ x} < \sqrt[]{2} V_{P} \frac{Δ t}{Δ x} 。

2.4 边界条件

地震波在真实地下介质中传播时,由于地下介质是一个无限大的空间,而在进行地震波有限差分正演模拟时,地震波在一个有限空间的模型中传播,所以必须人为的建立一个吸收边界来解决模型边界的反射问题,通过吸收边界使地震波最大限度的衰减吸收^[20]。

这里引入完美匹配层边界条件模型(perfectly matched layer,PML)。PML吸收边界层在二维传播方向上吸收示意如图3所示,在左、右边界(S₂、S₄)处吸收沿x方向上传播的波,在上、下部边界(S₁、S₃)处吸收沿z方向上传播的波,在四个角处(C₁、C₂、C₃、C₄)对沿x和z方向上传播的波都进行吸收。

图3

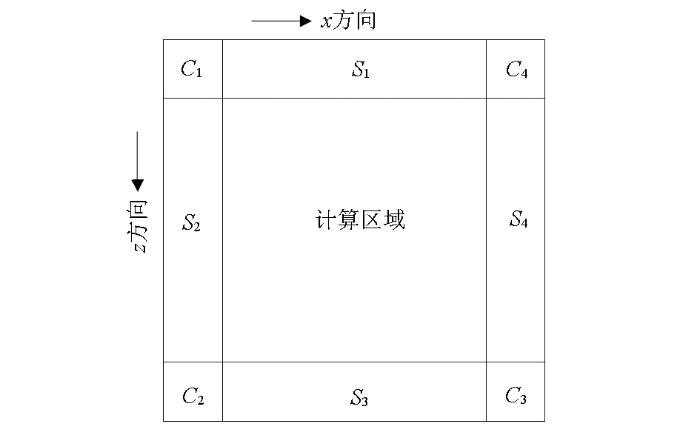

图3 PML吸收边界示意

Fig.3 The sketch of perfectly matched layer

2.5 震源

在进行地震波正演模拟时需要引入合适的震源函数,一般经常用于地震波数值模拟的震源子波函数有δ脉冲、雷克子波、指数衰减的正弦子波和高斯一阶倒数等。本文使用的是雷克子波进行正演模拟,雷克子波在时间域的表达式如式(14)所示:

(14)

R (t) = [1 - 2 (π f_{0} {t)}^{2}] \exp [- (π f_{0} {t)}^{2}] 。

图4、5是主频为400 Hz的雷克子波及其振幅谱。

图4

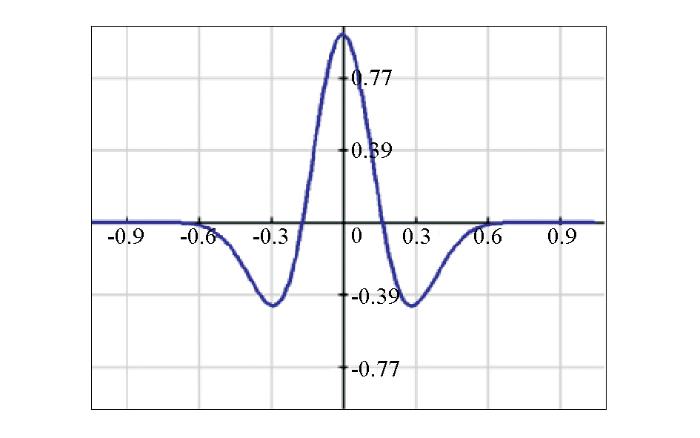

图4 主频400 Hz雷克子波示意

Fig.4 The sketch of 400 Hz ricker wavelet

图5

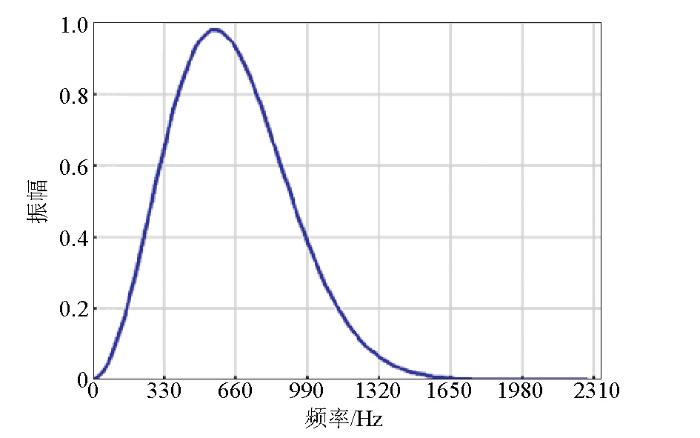

图5 主频400 Hz雷克子波振幅谱示意

Fig.5 Amplitude spectrum of 400 Hz ricker wavelet

3 工程概况与正演模拟

3.1 工程概况

在云南省某引水工程中,某主隧洞的2#施工斜井所在的山体地层岩性主要为三叠系中统下部( $T_{2}^{a}$ )绿帘石石英片岩、绿帘(泥)石片岩夹变质砂岩及三叠系中统上部( $T_{2}^{b}$ )浅变质灰岩、白云质灰岩等,支洞主要穿越 $T_{2}^{a}$ 地层。主要褶皱为槽谷西侧分布的扶仲向斜,主要断裂为龙蟠—乔后断裂带(F₁₀),二者走向近平行,均呈NNE向,交角约10°。2#施工斜井的工程地质平面图见图6。

图6

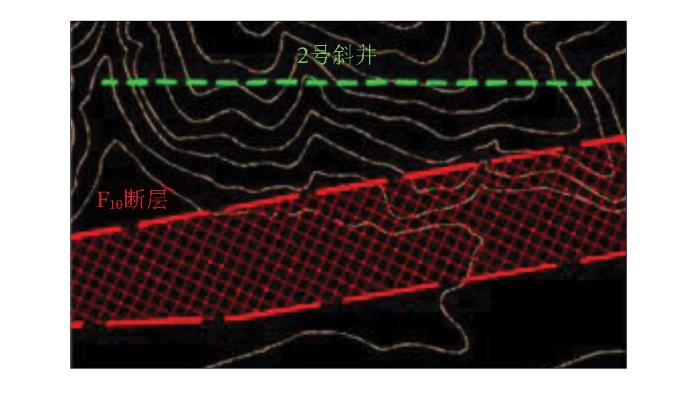

图6 2#斜井工程地质图

Fig.6 Engineering geological map of 2# inclined shaft

3.2 正演模拟

根据地质提供的工程地质图及其他地质资料,建立2#斜井与F₁₀断层测区的地球物理模型,模型的尺寸设置为1 500 m×1 500 m,网格大小设置为5 m,即网格数为300×300,模型见图7。图中,黄色色标代表隧洞,为空气模型;紫色色标代表普通围岩,根据附近桩号TSP超前地质预报测得的波速,纵波波速设置为5 500 m·s^-1;蓝色色标代表进入断层影响带的围岩,同样根据TSP探测成果,纵波波速设置为4 000 m·s^-1;绿色色标代表F₁₀断层,根据前期地面钻孔声波成果,纵波波速设置为2 800 m·s^-1。

图7

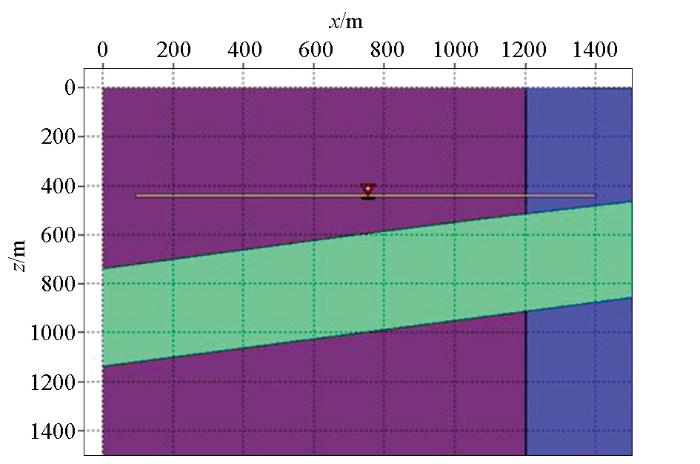

图7 正演模型示意

Fig.7 Sketch of forward modeling

分别在隧洞距离F₁₀断层距离约120、55、20 m处附近布置3个近垂直反射地震排列,地震排列共设置8道地震检波器,道间距为4 m,整个地震排列长度为28 m,在地震排列正中心位置深度为2 m处设置激励源,采样率设置为0.05 ms,震源采用主频为300 Hz的雷克子波。3次正演模拟结果如图8~10。

图8

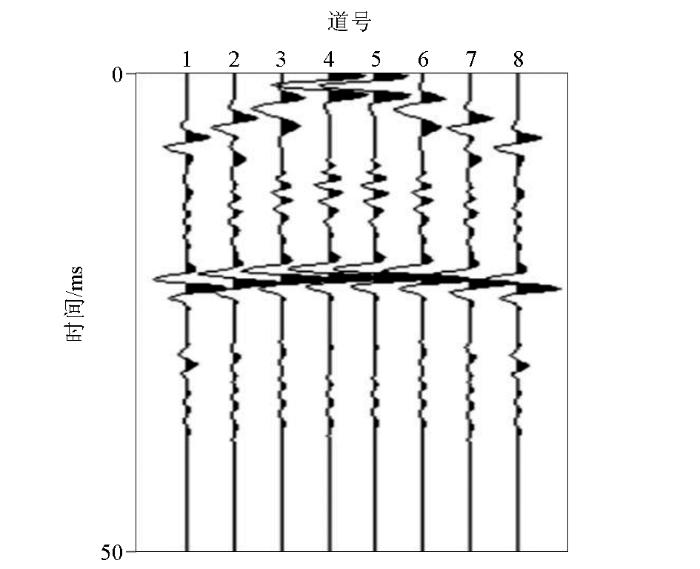

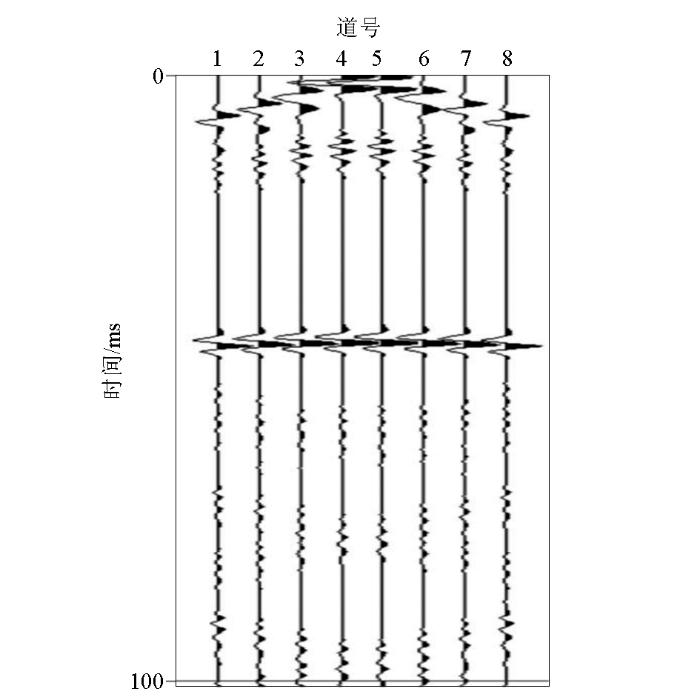

图8 第1次正演模拟成果

Fig.8 The result of the first forward simulation

图9

图9 第2次正演模拟成果

Fig.9 The result of the second forward simulation

图10

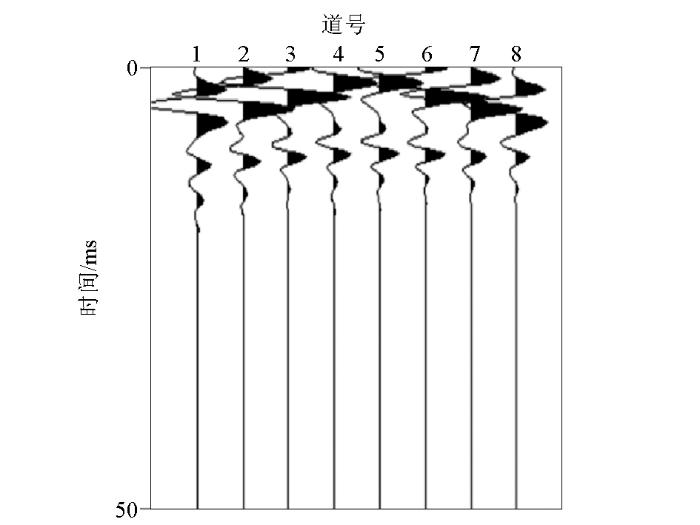

图10 第3次正演模拟成果

Fig.10 The results of the third forward simulation

3.3 正演成果分析

1)第1次正演模拟成果:由于F₁₀断层与正常围岩界面存在明显波阻抗差异,在时窗约45 ms附近地震波振幅增强发生强反射。

2)第2次正演模拟成果:由于F₁₀断层与正常围岩界面存在明显波阻抗差异,在时窗约20 ms附近地震波振幅增强发生强反射。

3)第3次正演模拟成果:由于F₁₀断层与正常围岩界面存在明显波阻抗差异,在时窗约10 ms附近地震波振幅增强发生强反射。

4 探测成果与分析

4.1 现场工作布置

在2#施工斜井开挖过程中,共进行了3次侧向断层探测工作,主要采用近垂直反射法对右边墙的F₁₀断层进行定位与追踪。

近垂直反射法的具体工作布置为:在2#斜井掌子面后方约10 m处,右侧洞壁上均匀的布置了8个地震检波器,道间距为4 m,整个地震排列长度为28 m,在地震排列正中心位置(即第4、5号检波器中间)利用风钻造了一个直径为40 mm、深度为2 m、向下倾斜约10°的钻孔,在钻孔中放置了约100 g乳化炸药,并在钻孔中充满了水,利用电雷管触发乳化炸药爆炸作为震源进行探测。工作布置示意图见图11,采集现场工作照片见图12。

图11

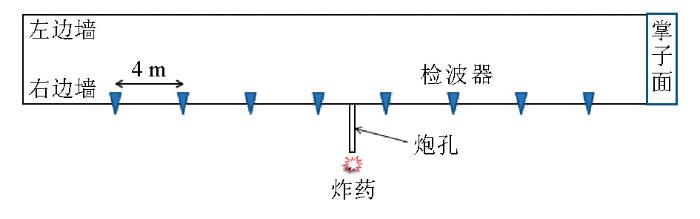

图11 近垂直反射法工作布置示意

Fig.11 Schematic layout of vertical reflection method

图12

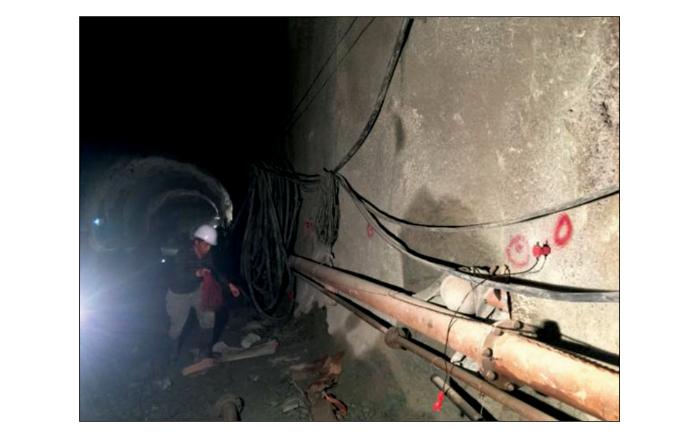

图12 现场工作照片

Fig.12 Field work photos

4.2 探测成果

2#施工斜井洞口桩号为K0+000,第1次断层探测时,地震排列的中心位置桩号约为K0+600,附近围岩的纵波波速约5 500 m·s^-1;第2次断层探测时,地震排列的中心位置桩号约为K0+980,附近围岩的纵波波速约5 500 m·s^-1;第3次断层探测时,地震排列的中心位置桩号约为K1+200,由于隧洞已进入断层影响带,附近围岩的纵波波速约4 000 m·s^-1。3次近垂直反射探测断层成果图见图13~15。

图13

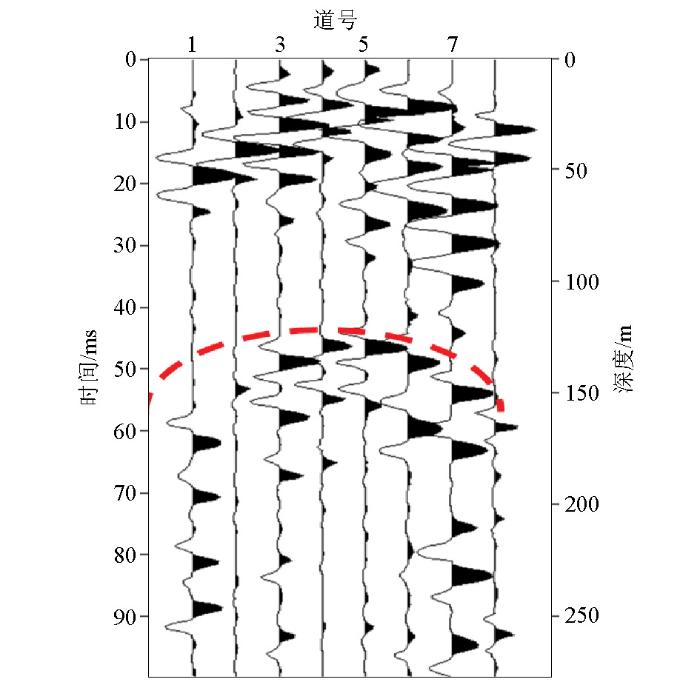

图13 第1次探测成果

Fig.13 First detection result

图14

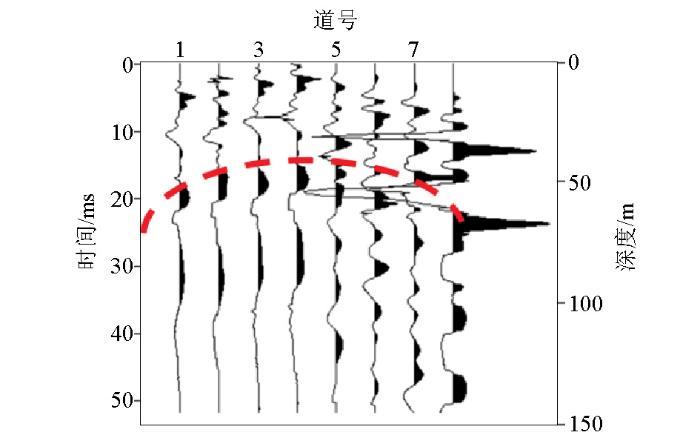

图14 第2次探测成果

Fig.14 Second detection result

图15

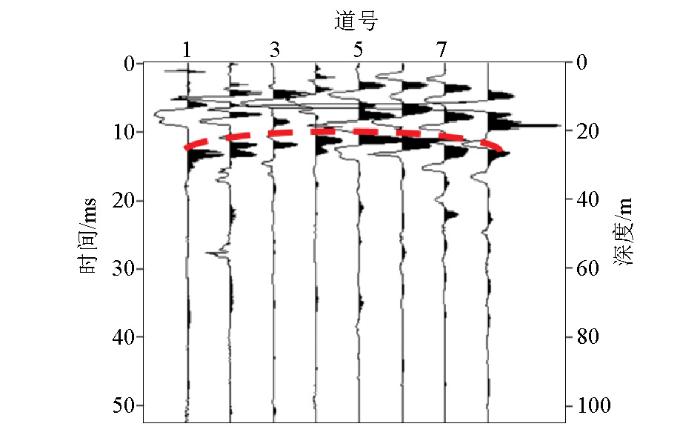

图15 第3次探测成果

Fig.15 Third detection result

4.3 探测成果分析

1)第1次探测成果:在时窗约44 ms附近开始出现地震波强反射界面,利用附近桩号TSP超前地质预报测得的平均围岩纵波波速5 500 m·s^-1计算,推测F₁₀断层距离隧洞右边墙最近的距离约120 m。

2)第2次探测成果:在时窗约16 ms附近开始出现地震波强反射界面,利用附近桩号TSP超前地质预报测得的平均围岩纵波波速5 500 m·s^-1计算,推测F₁₀断层距离隧洞右边墙最近的距离约45 m。

3)第3次探测成果:在时窗约10 ms附近开始出现地震波强反射界面,利用附近桩号TSP超前地质预报测得的平均围岩纵波波速4 000 m·s^-1计算,推测F₁₀断层距离隧洞右边墙最近的距离约20 m。

3次近垂直反射法断层探测工作均对2#斜井右侧的F₁₀断层进行了深度定位,并通过在不同隧洞桩号的多次探测工作,对F₁₀的发育趋势进行了追踪,3次探测成果对F₁₀断层的定位追踪综合分析见图16。综合分析图显示综合探测成果与F₁₀发育趋势基本一致。

图16

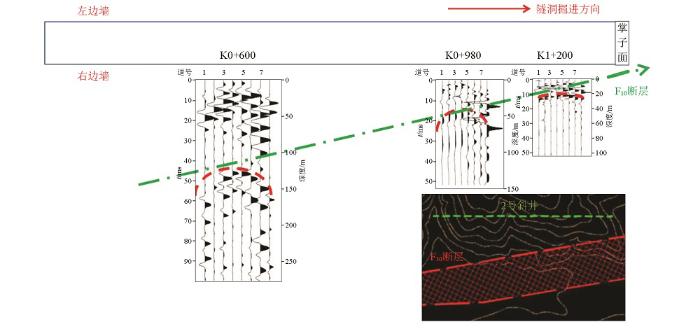

图16 3次探测成果综合分析

Fig.16 Comprehensive analysis chart of the three survey results

4.4 开挖验证

斜井开挖至桩号K1+300附近,隧洞正式进入F₁₀断层,围岩破碎,裂隙与节理发育,稳定性差,围岩用手即可轻轻剥落,围岩波速约2 800 m·s^-1。隧洞右侧边墙围岩照片见图17。

图17

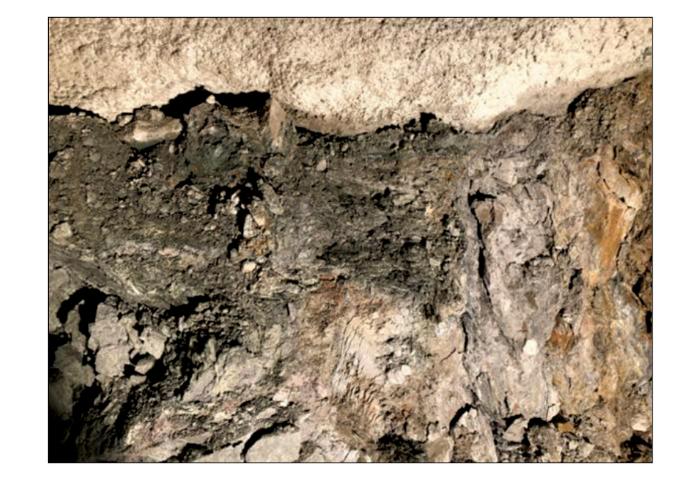

图17 右侧边墙围岩照片

Fig.17 Right side wall rock photos

5 结论

近垂直反射法是一种以垂直反射法为基础的地震探勘技术,不需要足够大的偏移距,适用于隧洞、巷道等空间较狭小的地下工程。该技术区别于常规超前地质预报技术,不仅能应用于隧洞掌子面,而且能应用于隧洞边墙、顶拱、底板等任何位置,能够对中大型地质构造(例如:断层、溶蚀带等)进行定位与追踪,能够较好地弥补前期地面勘探的“盲点”,有效保障地下工程施工安全。

在地下工程应用过程中,可根据工程现场地质情况进行正演模拟建模与模拟,结合正演模拟结果能够极大地帮助相关技术人员进行近垂直反射法的资料分析与解释。
