高山峡谷区地球化学普查采样点协同优化布设与现场微调方法

曾亮, 杨明龙, 庞咏, 黄加忠, 白平雁, 王炳军

Synergistic optimization and on-site fine-tuning methods for sampling point arrangement for geochemical survey in an alpine gorge area, Southwest China

ZENG Liang, YANG Ming-Long, PANG Yong, HUANG Jia-Zhong, BAI Ping-Yan, WANG Bing-Jun

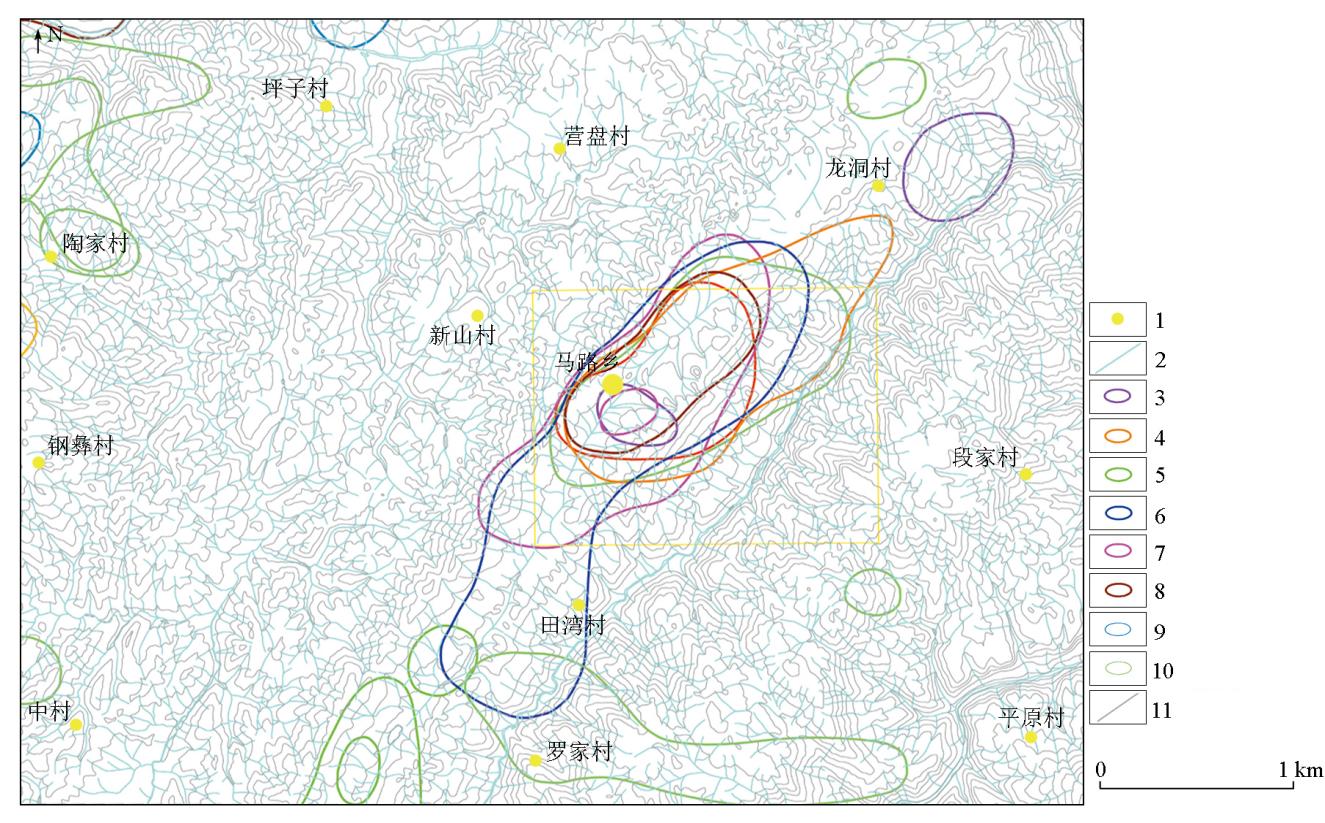

图2 翻身村地区水系分布 1—村庄;2—水系线;3—F异常下限(1000×10-6)圈定范围;4—Ba异常下限(600×10-6)圈定范围;5—Cd异常下限(1×10-6)圈定范围;6—Pb异常下限(60×10-6)圈定范围;7—Ag异常下限(0.12×10-6)圈定范围;8—Zn异常下限(200×10-6)圈定范围;9—Mo异常下限(3×10-6)圈定范围;10—Sb异常下限(2×10-6)圈定范围;11—高程线

Fig.2 Water system distribution in the Fenshen Village area 1—village; 2—watercourse line; 3—lower limit of F anomaly (1000×10-6) delineation range; 4—lower limit of Ba anomaly (600×10-6) delineation range; 5—lower limit of Cd anomaly (1×10-6) delineation range; 6—lower limit of Pb anomaly (60×10-6) delineation range; 7—lower limit of Ag anomaly (0.12×10-6) delineation range; 8—lower limit of Zn anomaly (200×10-6) delineation range; 9—lower limit of Mo anomaly (3×10-6) delineation range; 10—lower limit of Sb anomaly (2×10-6) delineation range; 11—elevation contour line
