大功率—超大功率电(磁)探测技术进展与展望

王珺璐, 陈辉, 罗先中, 张晓飞, 林品荣, 俞炳, 庞振山

High-power-ultrahigh-power electromagnetic exploration technology: Progress and outlook

WANG Jun-Lu, CHEN Hui, LUO Xian-Zhong, ZHANG Xiao-Fei, LIN Pin-Rong, YU Bing, PANG Zhen-Shan

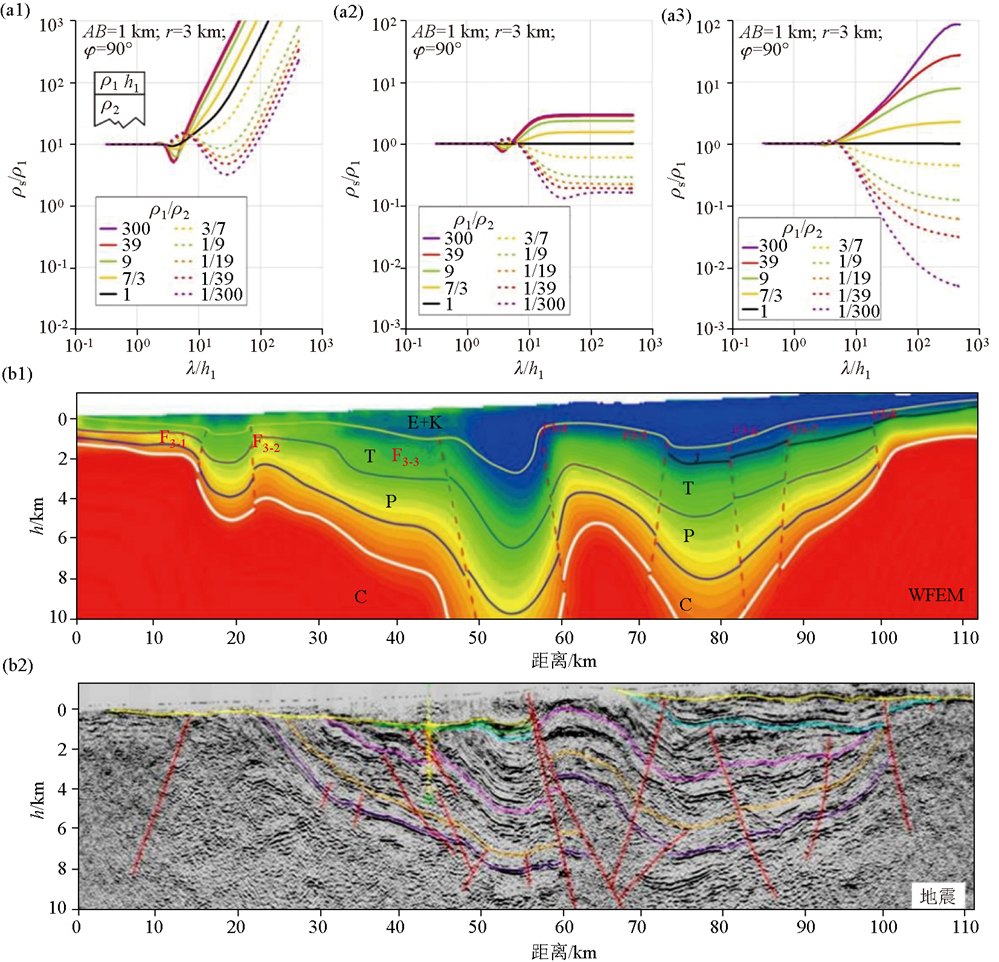

图6 WFEM与CSAMT一维数值模拟(a)及地震勘探应用效果(b)的对比^[5,29]
a1—CSAMT一维数值模拟结果;a2—WFEM的E_x分量一维数值模拟结果;a3—WFEM的H_y分量一维数值模拟结果;b1—为WFEM应用效果;b2—地震成像结果

Fig.6 Comparison of 1D numerical simulations between WFEM and CSAMT (a), and comparison of application effects with seismic exploration (b)^[5,29]
a1—1D numerical simulation result of CSAMT; a2—1D numerical simulation results of E_x components of WFEM; a3—1D numerical simulation results of H_y components of WFEM; b1—application effect of WFEM; b2—seismic imaging result
