基于大地电磁的南宫地热田地热资源赋存特征

卢星辰, 邢倩, 许勇, 吕国森, 陈祥忠, 王瑞兴, 黄申硕

Exploring the occurrence characteristics of geothermal resources in the Nangong geothermal field based on the magnetotelluric method

LU Xing-Chen, XING Qian, XU Yong, LYU Guo-Sen, CHEN Xiang-Zhong, WANG Rui-Xing, HUANG Shen-Shuo

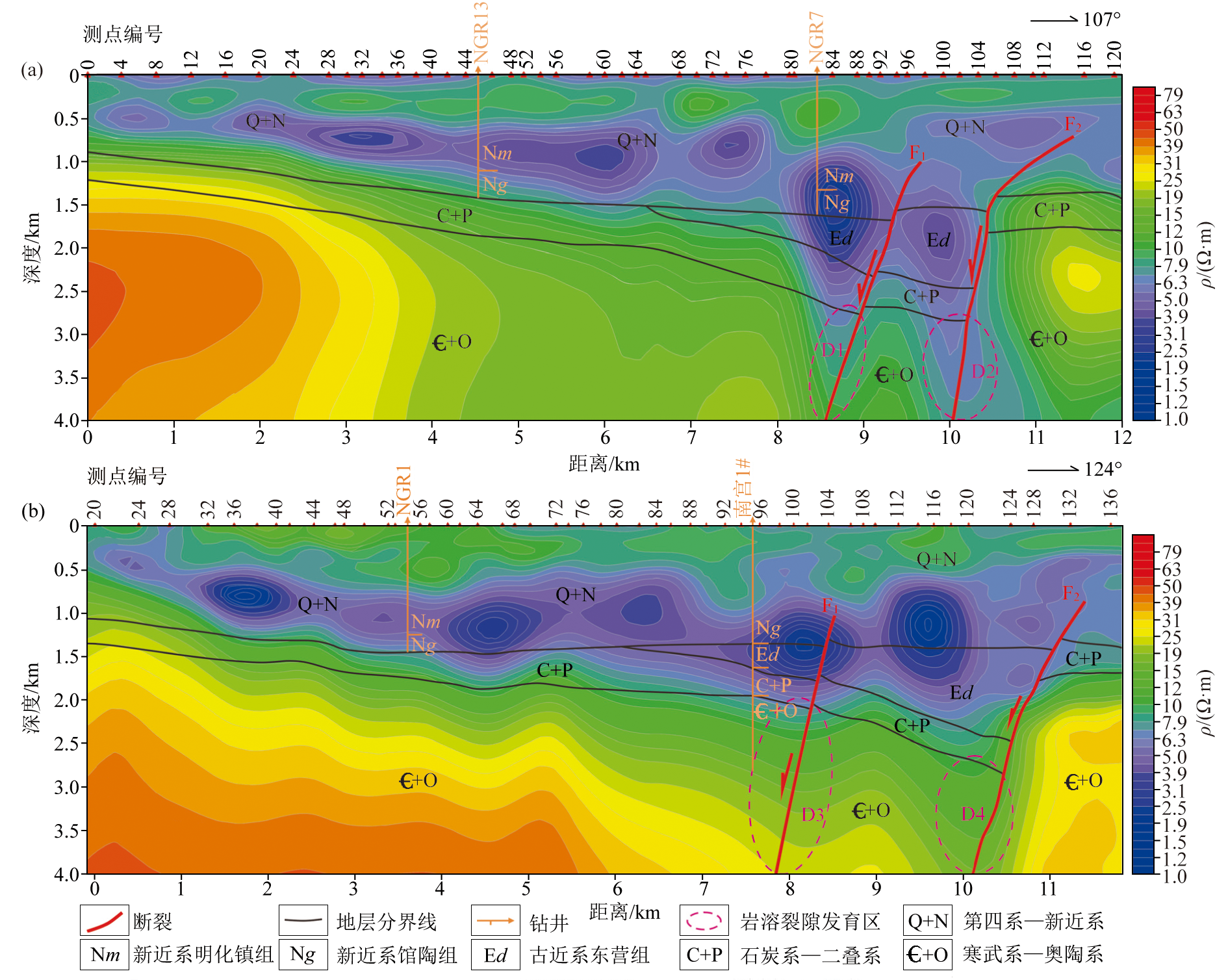

图4 MT1线(a)和MT2线(b)电阻率等值线断面与推断成果

Fig.4 MT1 line (a) and MT2 line (b) resistivity contour section and inferred result diagram
