三维断层模型的MT倾子响应数值模拟
Numerical simulation of MT tipper response based on 3D fault models
a—Hz分量的实部曲线;b—Hz分量的虚部曲线
a—plot of the real part of the Hz component;b—imaginary plot of the Hz component
三维断层模型的MT倾子响应数值模拟 |
| 林兴龙, 顾观文, 牛兴国, 武晔, 王顺吉, 王英杰, 曹来 |
|
Numerical simulation of MT tipper response based on 3D fault models |
| LIN Xing-Long, GU Guan-Wen, NIU Xing-Guo, WU Ye, WANG Shun-Ji, WANG Ying-Jie, CAO Lai |

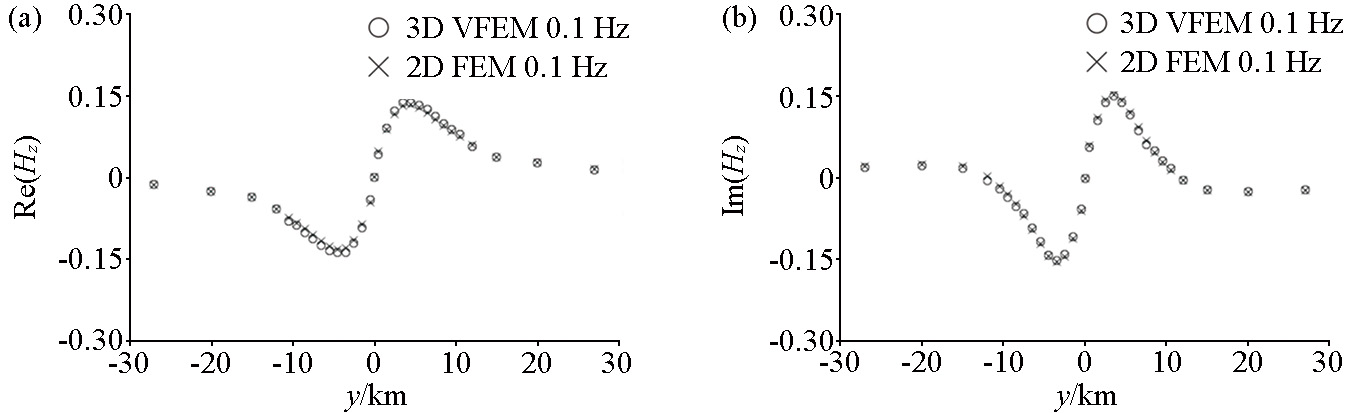

| 图9 二维棱柱体模型垂直磁场分量的二维有限元数值解和三维矢量有限元数值解的对比(0.1 Hz) a—Hz分量的实部曲线;b—Hz分量的虚部曲线 |
| Fig.9 Comparison of the 2D finite element numerical solution and the 3D vector finite element numerical solution of the perpendicular magnetic field component of the 2D prism model (0.1 Hz) a—plot of the real part of the Hz component;b—imaginary plot of the Hz component |
|
|
