三维断层模型的MT倾子响应数值模拟

林兴龙, 顾观文, 牛兴国, 武晔, 王顺吉, 王英杰, 曹来

Numerical simulation of MT tipper response based on 3D fault models

LIN Xing-Long, GU Guan-Wen, NIU Xing-Guo, WU Ye, WANG Shun-Ji, WANG Ying-Jie, CAO Lai

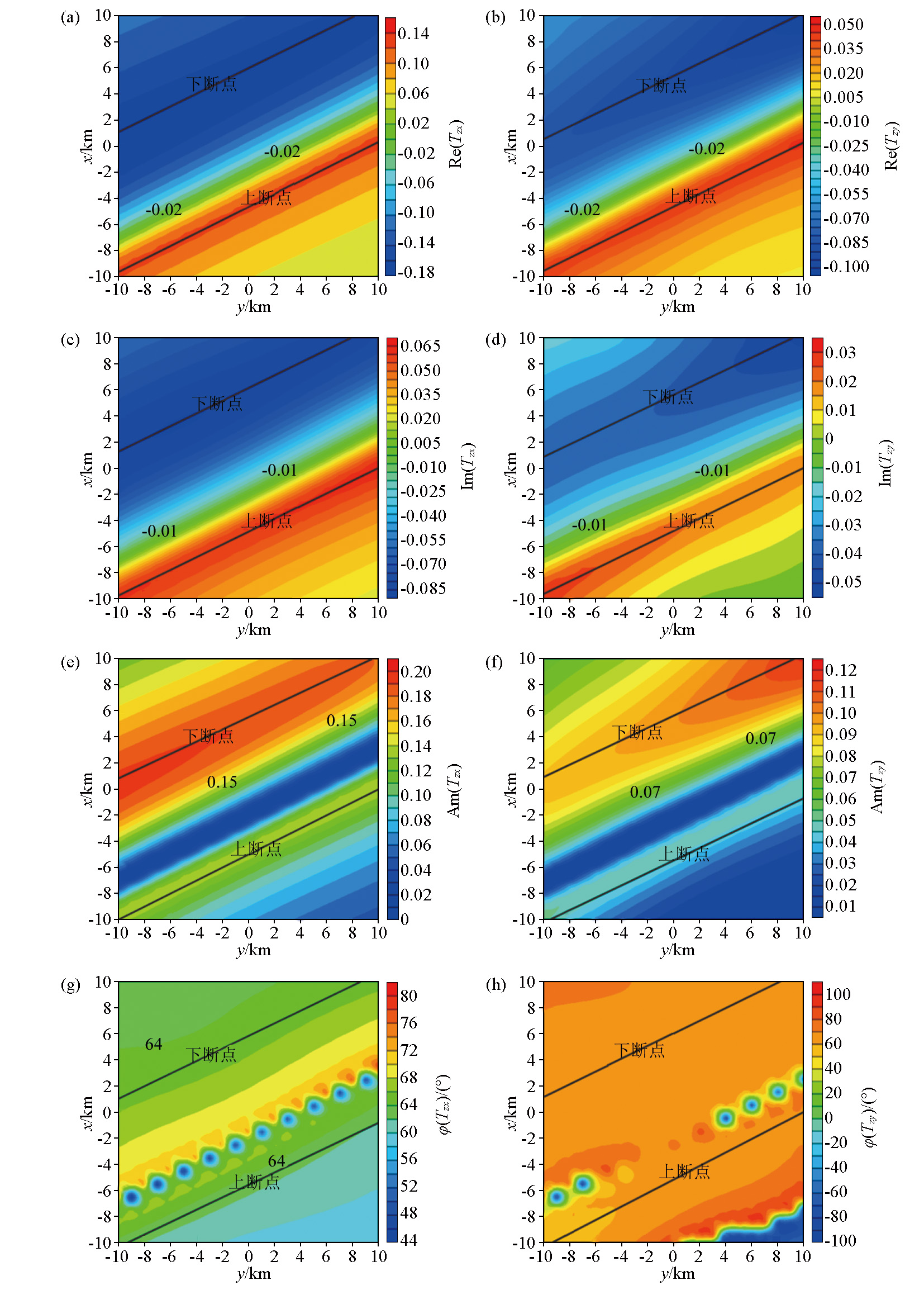

图20 频率为0.1 Hz时沿北偏东60°方向延伸的逆断层倾子平面等值线 a—Tzx倾子实部平面等值线;b—Tzy倾子实部平面等值线;c—Tzx倾子虚部平面等值线;d—Tzy倾子虚部平面等值线;e—Tzx倾子振幅平面等值线;f—Tzy倾子振幅平面等值线;g—Tzx倾子相位平面等值线;h—Tzy倾子相位平面等值线

Fig.20 Contour map of the tipper plane of a reverse fault extending in the direction of north-northeast at 60° at a frequency of 0.1 Hz a—contour map of the real part of the Tzx tipper plane;b—contour map of the real part of the Tzy tipper plane;c—contour map of the imaginary part of the Tzx tipper plane;d—contour map of the imaginary part of the Tzy tipper plane;e—contour map of the amplitude part of the Tzx tipper plane;f—contour map of the amplitude part of the Tzy tipper plane;g—contour map of the phase part of the Tzx tipper plane;h—contour map of the phase part of the Tzy tipper plane
