三维断层模型的MT倾子响应数值模拟

林兴龙, 顾观文, 牛兴国, 武晔, 王顺吉, 王英杰, 曹来

Numerical simulation of MT tipper response based on 3D fault models

LIN Xing-Long, GU Guan-Wen, NIU Xing-Guo, WU Ye, WANG Shun-Ji, WANG Ying-Jie, CAO Lai

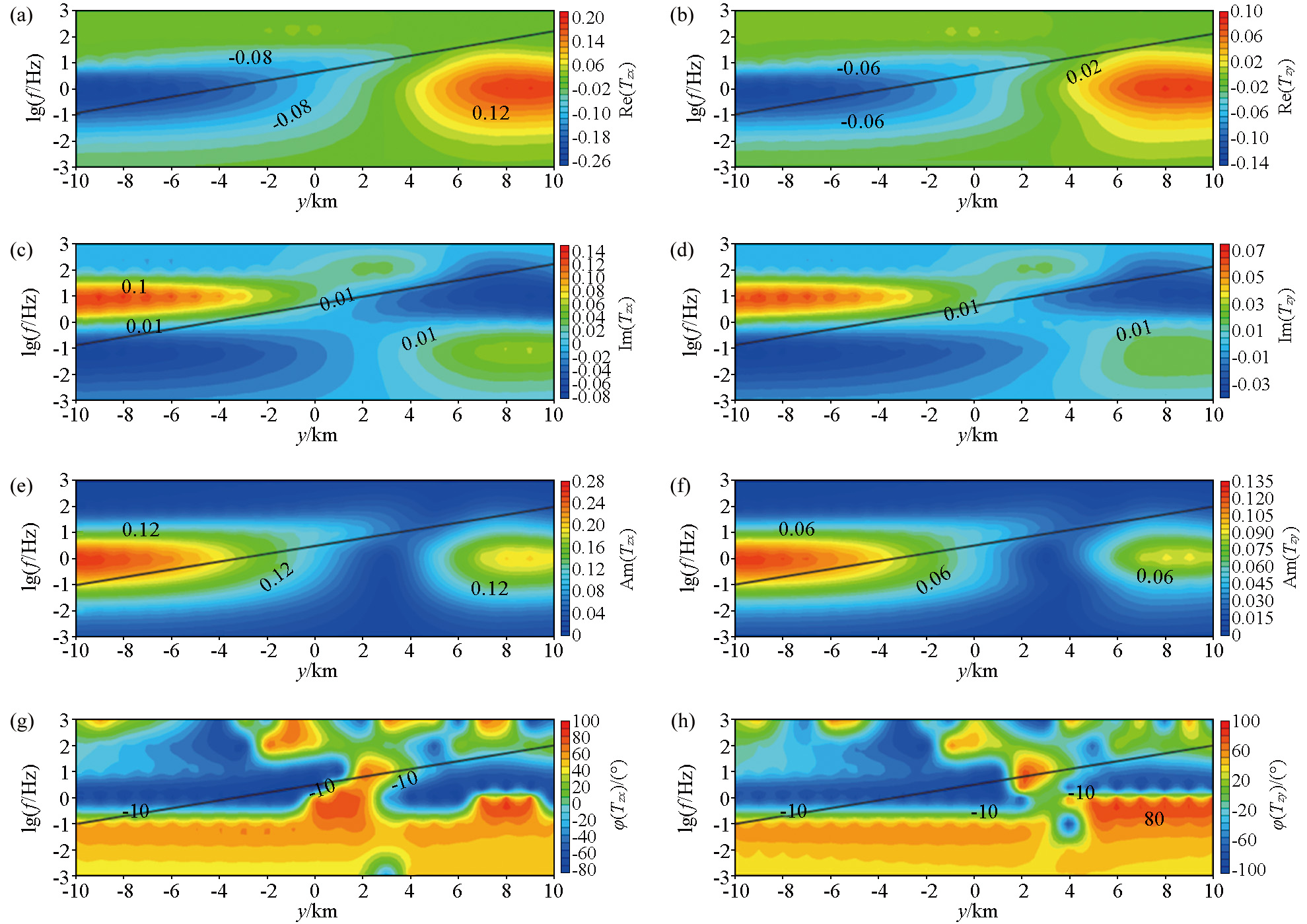

图19 沿北偏东60°方向延伸的逆断层倾子拟断面 a—Tzx倾子实部拟断面;b—Tzy倾子实部拟断面;c—Tzx倾子虚部拟断面;d—Tzy倾子虚部拟断面;e—Tzx倾子振幅拟断面;f—Tzy倾子振幅拟断面;g—Tzx倾子相位拟断面;h—Tzy倾子相位拟断面

Fig.19 Pseudo-section diagram of a reverse fault dip extending in the direction of north-northeast at 60° a—Tzx tipper real part pseudo-section diagram;b—Tzy tipper real part pseudo-section diagram;c—Tzx tipper imaginary part pseudo-section diagram;d—Tzy tipper imaginary part pseudo-section diagram;e—pseudo-section diagram of the amplitude of the Tzx tipper;f—pseudo-section diagram of the amplitude of the Tzy tipper;g—pseudo-section diagram of the phase of the Tzx tipper;h—pseudo-section diagram of the phase of the Tzy tipper
