三维断层模型的MT倾子响应数值模拟
Numerical simulation of MT tipper response based on 3D fault models
a—x-y平面示意;b—垂直于断层走向的剖面示意
a—schematic diagram of the x-y plane;b—schematic diagram of a profile perpendicular to the fault trend
三维断层模型的MT倾子响应数值模拟 |
| 林兴龙, 顾观文, 牛兴国, 武晔, 王顺吉, 王英杰, 曹来 |
|
Numerical simulation of MT tipper response based on 3D fault models |
| LIN Xing-Long, GU Guan-Wen, NIU Xing-Guo, WU Ye, WANG Shun-Ji, WANG Ying-Jie, CAO Lai |

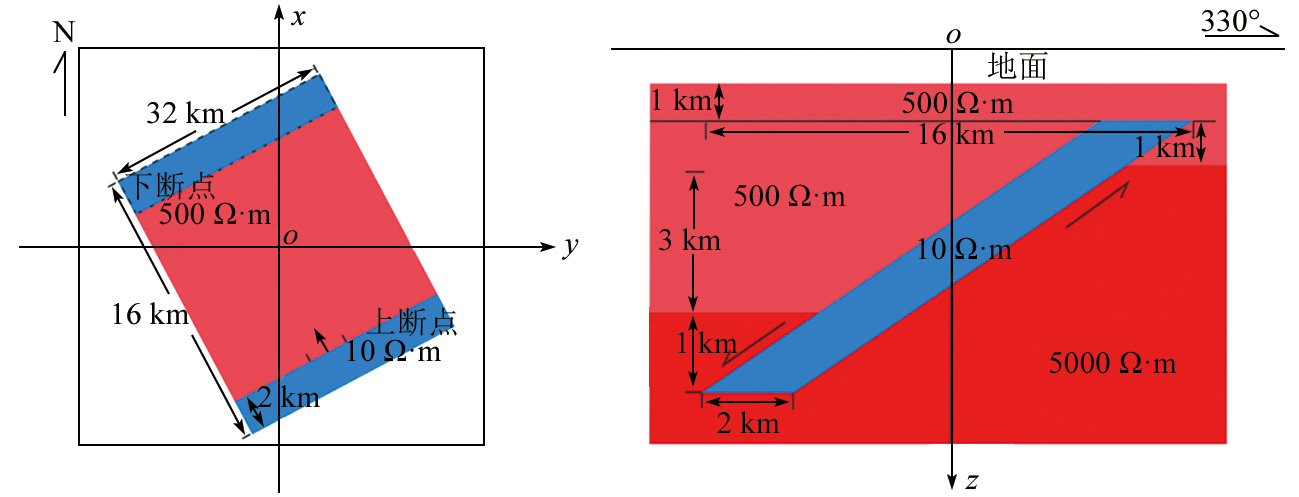

| 图15 沿北偏东60°方向延伸的正断层模型示意 a—x-y平面示意;b—垂直于断层走向的剖面示意 |
| Fig.15 Schematic diagram of normal fault model extending in the direction of north-northeast at 60° a—schematic diagram of the x-y plane;b—schematic diagram of a profile perpendicular to the fault trend |
|
|
