基于聚类分析的ModEM三维反演复杂地形网格剖分

胡士晖, 闵刚, 孙浥钦, 陈春江, 李春婷, 张志豪

Gridding of complex terrains based on cluster analysis for ModEM 3D inversion

HU Shi-Hui, MIN Gang, SUN Yi-Qin, CHEN Chun-Jiang, LI Chun-Ting, ZHANG Zhi-Hao

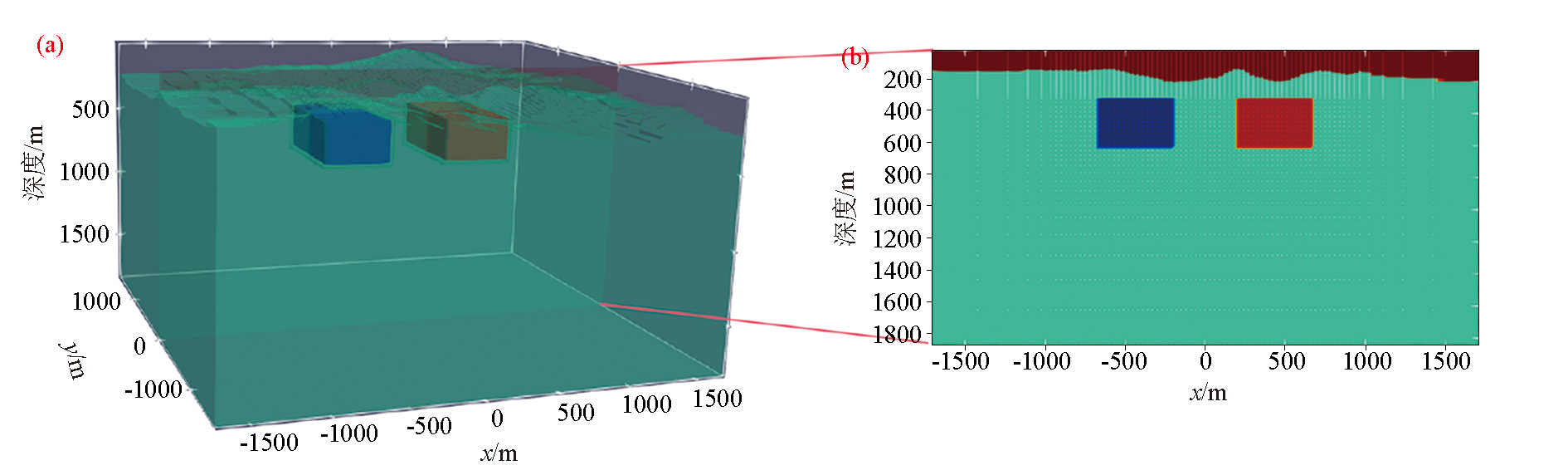

图10 正演模型 a—三维模型;b—模型切片(其中上方红色区域代表空气地形,蓝色块为低阻体,红色块为高阻体,图中点代表网格中心分布位置)

Fig.10 Forward Model a—3D modeling figure;b—model slice figure(where the upper red area represents the air topography, the blue block is a low resistor, the red block is a high resistor, and the dots in the plot represent the locations of the grid center distributions)
