煤矿富水体SOTEM响应三维数值模拟研究

常江浩, 薛俊杰, 孟庆鑫, 赵鹏

Three-dimensional numerical simulation of short-offset transient electromagnetic responses to water-rich bodies in coal mines

CHANG Jiang-Hao, XUE Jun-Jie, MENG Qing-Xin, ZHAO Peng

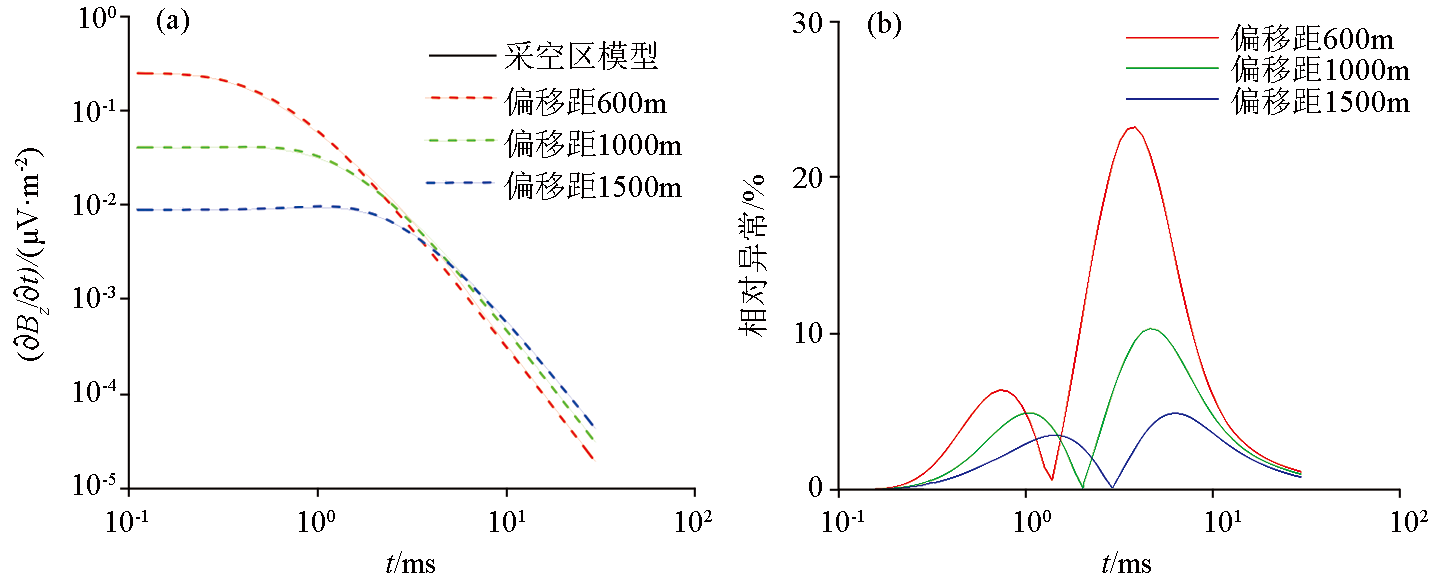

图9 不同偏移距下SOTEM瞬变电磁响应(a)及相对异常衰减曲线(b)

Fig.9 SOTEM response curves(a) and relative anomalous response(b) for different offsets
