煤矿富水体SOTEM响应三维数值模拟研究

常江浩, 薛俊杰, 孟庆鑫, 赵鹏

Three-dimensional numerical simulation of short-offset transient electromagnetic responses to water-rich bodies in coal mines

CHANG Jiang-Hao, XUE Jun-Jie, MENG Qing-Xin, ZHAO Peng

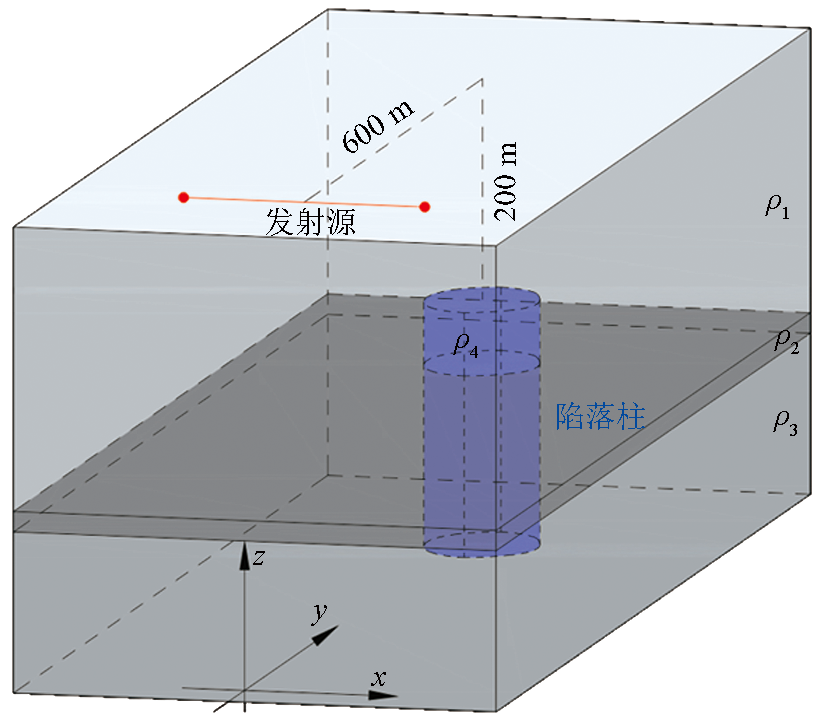

图4 含水陷落柱模型

Fig.4 Water-bearing collapse column model
