CSRMT正交水平发射源电磁场分布规律研究

陈兴朋, 王亮, 龙霞, 席振铢, 亓庆新, 薛军平, 戴云峰, 胡子君

Distribution patterns of the electromagnetic fields of orthogonal horizontal magnetic dipoles as sources in CSRMT

CHEN Xing-Peng, WANG Liang, LONG Xia, XI Zhen-Zhu, QI Qing-Xin, XUE Jun-Ping, DAI Yun-Feng, HU Zi-Jun

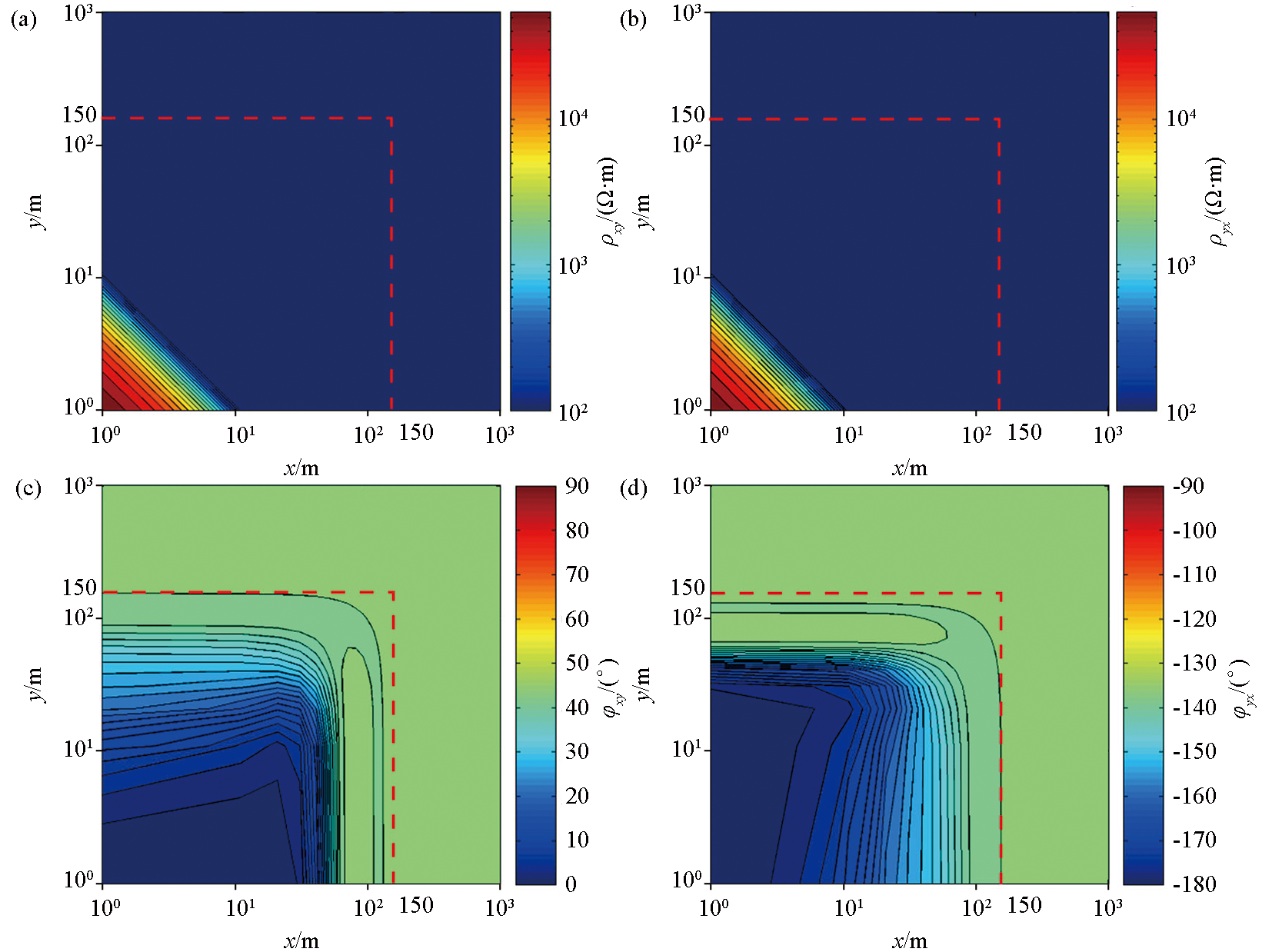

图7 100 kHz正交水平电偶源的张量视电阻率和相位空间分布 a—x方向的视电阻率空间分布;b—y方向的视电阻率空间分布;c—x方向的相位空间分布;d—y方向的相位空间分布

Fig.7 Tensor apparent resistivity and phase distribution diagram from the orthogonal horizontal electric dipole source with the frequency of 100 kHz a—the distribution diagram of apparent resistivity in the x-direction; b—the distribution diagram of apparent resistivity in the y-direction; c—the distribution diagram of phase in the x-direction; d—the distribution diagram of phase in the y-direction
