CSRMT正交水平发射源电磁场分布规律研究

陈兴朋, 王亮, 龙霞, 席振铢, 亓庆新, 薛军平, 戴云峰, 胡子君

Distribution patterns of the electromagnetic fields of orthogonal horizontal magnetic dipoles as sources in CSRMT

CHEN Xing-Peng, WANG Liang, LONG Xia, XI Zhen-Zhu, QI Qing-Xin, XUE Jun-Ping, DAI Yun-Feng, HU Zi-Jun

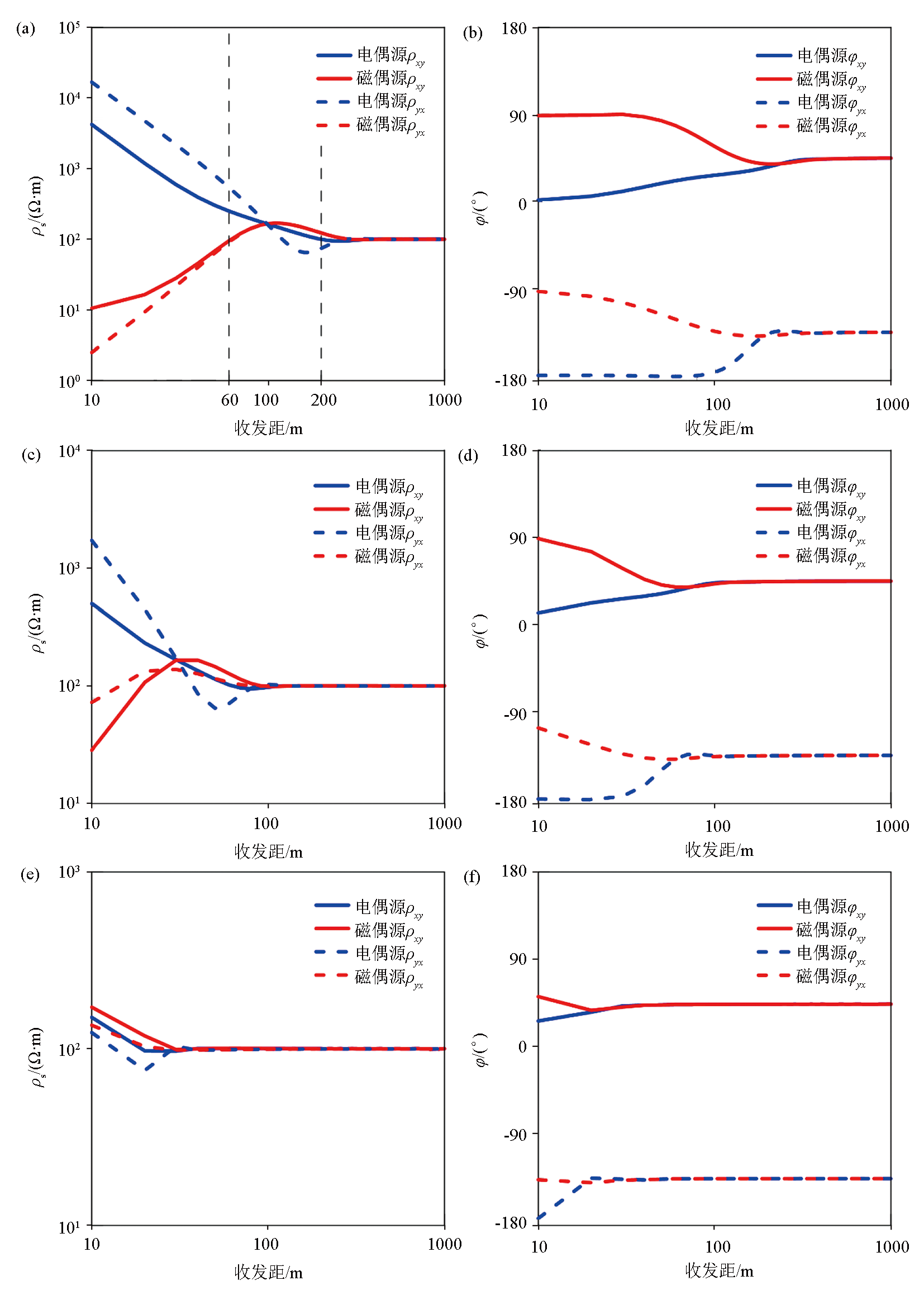

图10 收发距变化对正交水平电偶源和磁偶源张量视电阻率和相位的影响 a—发送频率10 kHz 对电阻率的影响;b—发送频率10 kHz 对相位的影响;c—发送频率100 kHz对电阻率的影响;d—发送频率100 kHz对相位的影响;e—发送频率1 000 kHz对电阻率的影响;f—发送频率1 000 kHz对相位的影响

Fig.10 Effect of transceiver distance variation on the tensor apparent resistivity and phase of the orthogonal horizontal electric and magnetic dipole sources a—10 kHz frequency transmit effect on resistivity;b—10 kHz frequency transmit effect on phase;c—100 kHz frequency transmit effect on resistivity;d—100 kHz frequency transmit effect on phase;e—1 000 kHz frequency transmit effect on resistivity;f—1 000 kHz frequency transmit effect on phase
