井—电联合勘探与三维地质建模在某填埋场环境调查中的应用

宋涛, 包怡, 赵松, 吴建峰, 许元顺, 涂海峰

Application of logging-resistivity joint exploration to 3D geological modeling for environmental investigation of a certain landfill site

SONG Tao, BAO Yi, ZHAO Song, WU Jian-Feng, XU Yuan-Shun, TU Hai-Feng

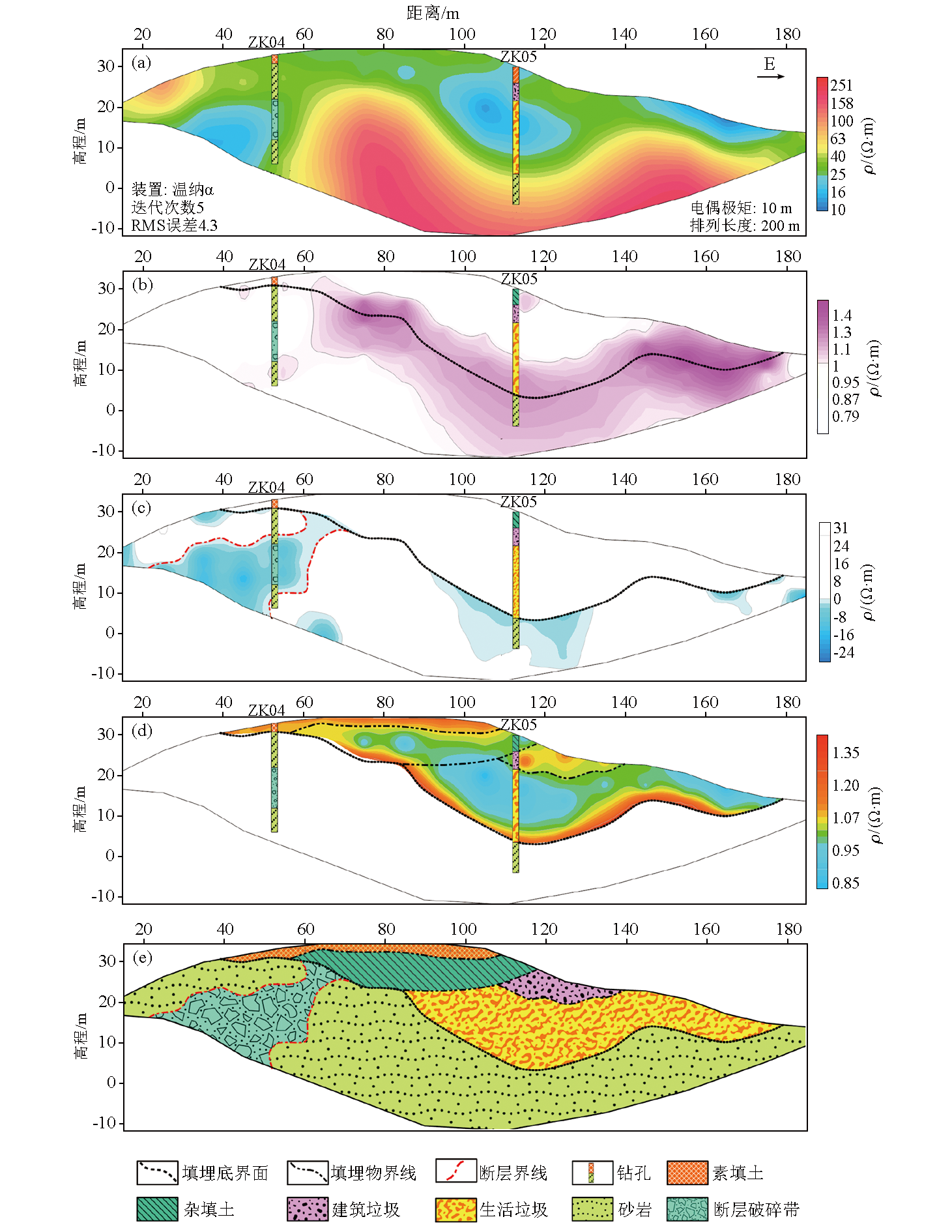

图4 L4线反演处理解释断面 a—带地形二维反演电阻率;b—反演电阻率梯度;c—基岩电阻率小波细节;d—填埋层电阻率值残差;e—解释剖面

Fig.4 Interpretation section of L4 line inversion processing a—2D resistivity inversion with terrain;b—gradient of inversion resistivity;c—wavelet detail calculation of bedrock resistivity;d—residual calculation of resistivity value of buried layer;e—interpretation profile
