东方1-1构造底辟模糊区OBN资料关键处理技术及应用

张敏, 邓盾, 李三福, 史文英, 张兴岩, 支玲

Critical processing techniques for ocean bottom node data of the diapir fuzzy zone of the Dongfang 1-1 structure and their application

ZHANG Min, DENG Dun, LI San-Fu, SHI Wen-Ying, ZHANG Xing-Yan, ZHI Ling

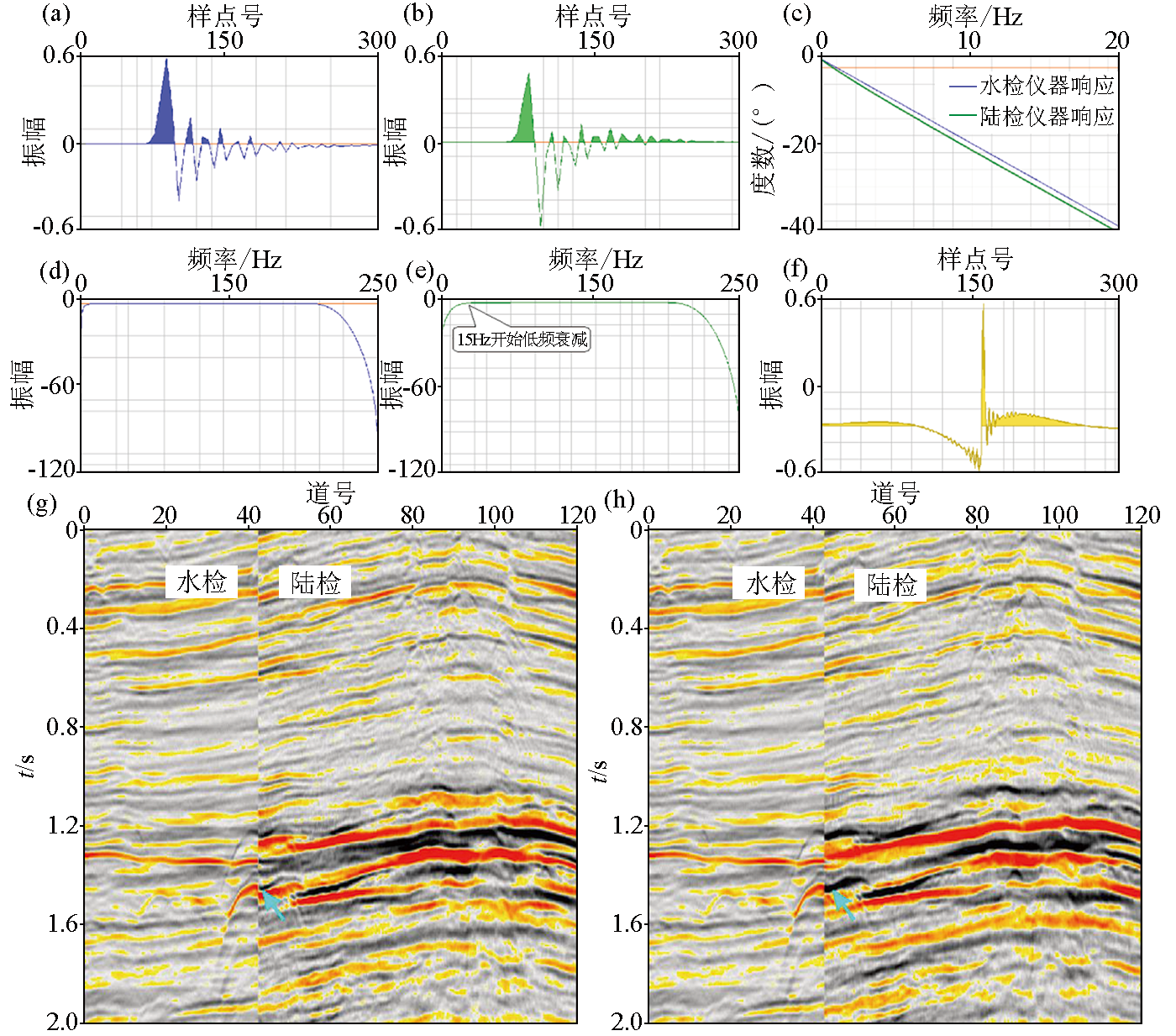

图7 水陆检仪器响应效果分析 a—水检仪器响应;b—陆检仪器响应;c—水、陆检仪器响应相位谱;d—水检仪器响应频谱;e—陆检仪器响应频谱;f—匹配算子;g—仪器响应校正前水陆检左右对比;h—仪器响应校正后水陆检左右对比

Fig.7 Effect analysis of dual-sensor instrument response a—hydrophone instrument response;b—geophone instrument response;c—the phase spectrum of hydrophone and geophone instrument response;d—the frequency spectrum of hydrophone instrument response;e—the frequency spectrum of geophone instrument response;f—the matching operator;g—the left and right comparison diagram of hydrophone and geophone before instrument response correction;h—the left and right comparison diagram of hydrophone and geophone after instrument response correction
