二连盆地宽频大地电磁法数据精细反演处理研究——以满都拉图地区的数据为例

许第桥, 李茂

Fine inversion of the broadband magnetotelluric data of the Erlian Basin: A case study of the Mandulatu area

XU Di-Qiao, LI Mao

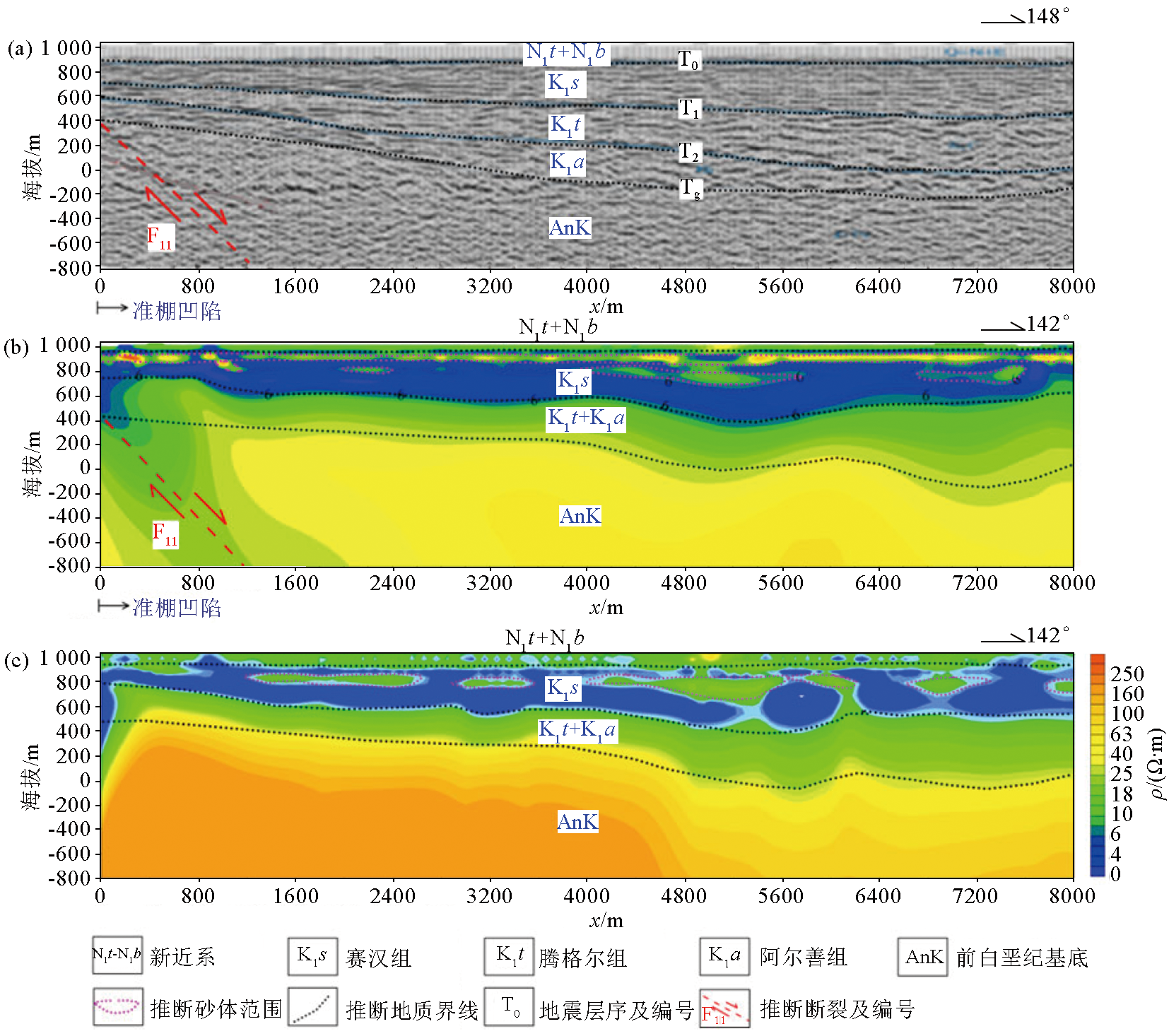

图2 L18-15剖面反演方法对比 a—D01线地震勘探叠加深度剖面;b—L18-15线OCCAM二维反演电阻率断面;c—L18-15线NLCG二维反演电阻率断面

Fig.2 Comparison of inversion method for L18-5 section a—seismic exploration stacking depth profile of line D01;b—OCCAM 2D inversion resistirity section of L18-15 line;c—two dimensional inversion resistivity section of NLCG on L18-15 line
