地下供水管线渗漏的探地雷达模拟探测试验分析

王欲成, 王洪华, 苏鹏锦, 龚俊波, 席宇何

Simulated detection experiments of underground water supply pipeline leakage based on ground penetrating radar

WANG Yu-Cheng, WANG Hong-Hua, SU Peng-Jin, GONG Jun-Bo, XI Yu-He

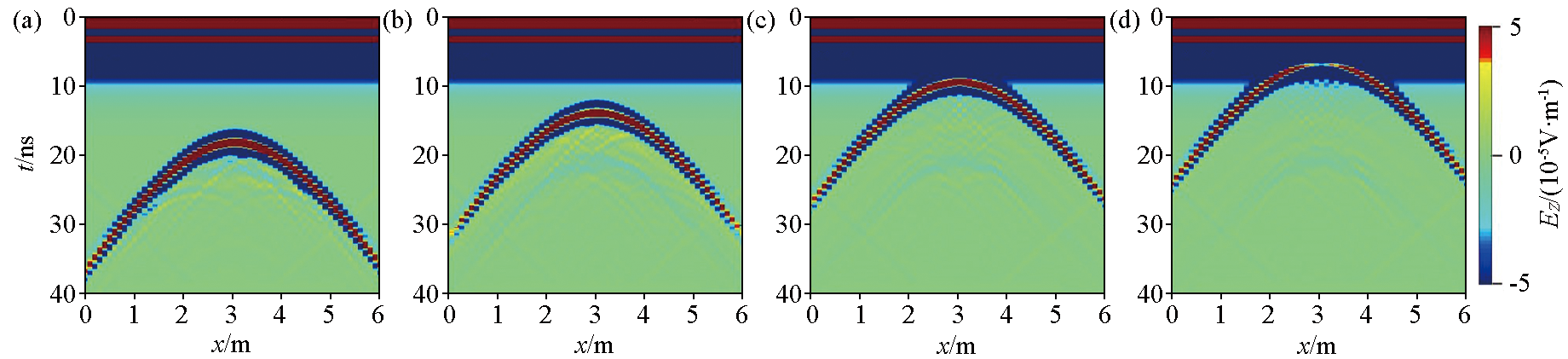

图6 供水管线上侧渗漏 0.5 h(a)、1.0 h(b)、2.0 h (c)、3.0 h(d)后的GPR模拟剖面

Fig.6 GPR simulated profile of water supply line after upper side leakage 0.5 h(a),1.0 h(b),2.0 h(c) and 3.0 h(d)
