地下供水管线渗漏的探地雷达模拟探测试验分析

王欲成, 王洪华, 苏鹏锦, 龚俊波, 席宇何

Simulated detection experiments of underground water supply pipeline leakage based on ground penetrating radar

WANG Yu-Cheng, WANG Hong-Hua, SU Peng-Jin, GONG Jun-Bo, XI Yu-He

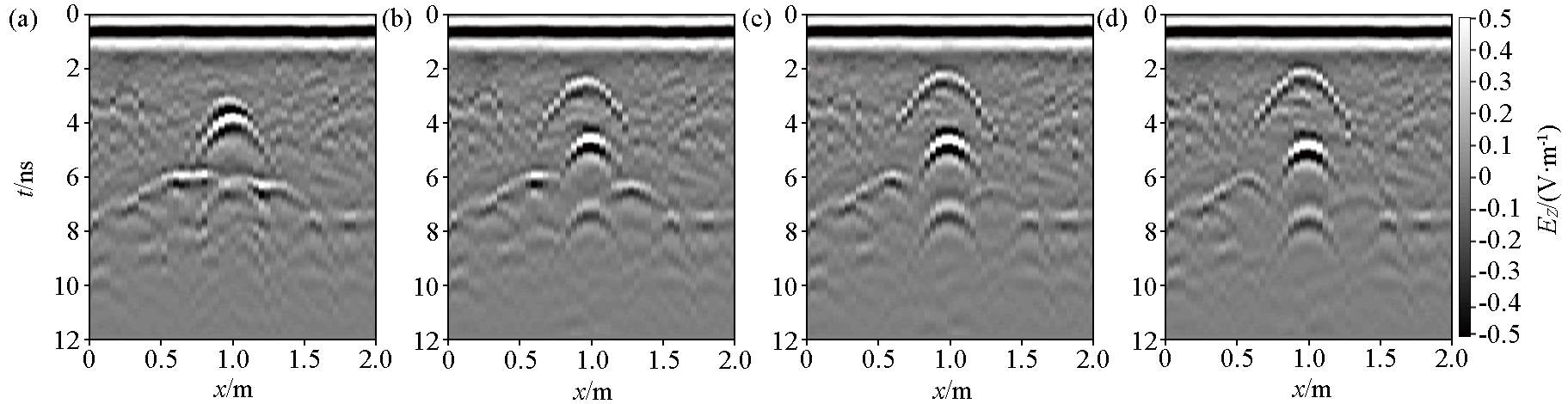

图19 供水管线左侧渗漏 0 min(a)、20.0 min(b)、40.0 min(c)、60.0 min(d)后的GPR物理模拟剖面

Fig.19 GPR physical simulation profile of water supply line after left leakage 0 min(a), 20.0 min(b), 40.0 min(c) and 60.0 min(d)
