顺北地区碳酸盐岩断控缝洞体油气产能定量化估算技术

刘军, 黄超, 杨林, 张永升, 查明

Quantitative prediction technology for the hydrocarbon production capacity of fractures and vugs in fault-controlled carbonate reservoirs in the Shunbei area

LIU Jun, HUANG Chao, YANG Lin, ZHANG Yong-Sheng, ZHA Ming

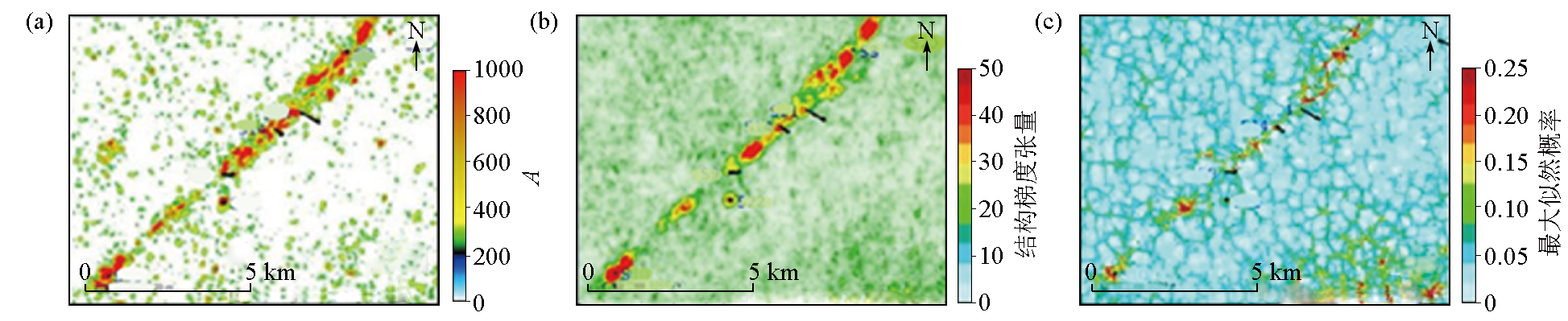

图4 不同层位异常体振幅、结构梯度张量和最大似然概率3种属性平面
a—

{T_{7}}^{6}

{T_{7}}^{8}

异常体振幅属性;b—

{T_{7}}^{6}

{T_{7}}^{8}

结构梯度张量属性;c—

{T_{7}}^{6}

{T_{7}}^{8}

最大似然概率属性

Fig.4 Plans of attributes of abnormal body amplitude,structural gradient tensor and maximum likelihood probability at different horizons
a—

{T_{7}}^{6}

{T_{7}}^{8}

abnormal body amplitude attribute;b—

{T_{7}}^{6}

{T_{7}}^{8}

structural gradient tensor attribute;c—

{T_{7}}^{6}

{T_{7}}^{8}

maximum likelihood probability attribute
