碳储深孔超声成像测井系统设计与应用

张建伟, 杨卓静, 王新杰, 李胜涛, 赵玉军

Design and application of the ultrasonic imaging logging system for deep carbonate geothermal reservoirs

ZHANG Jian-Wei, YANG Zhuo-Jing, WANG Xin-Jie, LI Sheng-Tao, ZHAO Yu-Jun

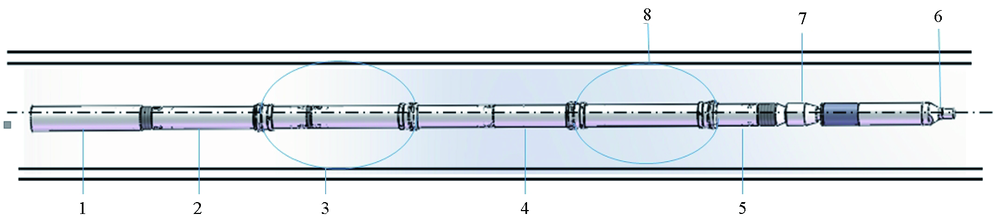

图2 超声成像测井探头示意 1—声像总成单元;2—方位监测单元;3—信息采集与处理单元;4—数据传输单元;5—DC电源单元;6—电连接器;7—不锈钢壳体;8—扶正器

Fig.2 Schematic diagram of the ultrasound imaging logging sensor 1—sound image assembly unit;2—position monitoring unit;3—information acquisition and processing unit;4—data transmission unit; 5—DC power unit;6—electric connector;7—stainless steel housing;8—casing centralizer
