碳储深孔超声成像测井系统设计与应用

张建伟, 杨卓静, 王新杰, 李胜涛, 赵玉军

Design and application of the ultrasonic imaging logging system for deep carbonate geothermal reservoirs

ZHANG Jian-Wei, YANG Zhuo-Jing, WANG Xin-Jie, LI Sheng-Tao, ZHAO Yu-Jun

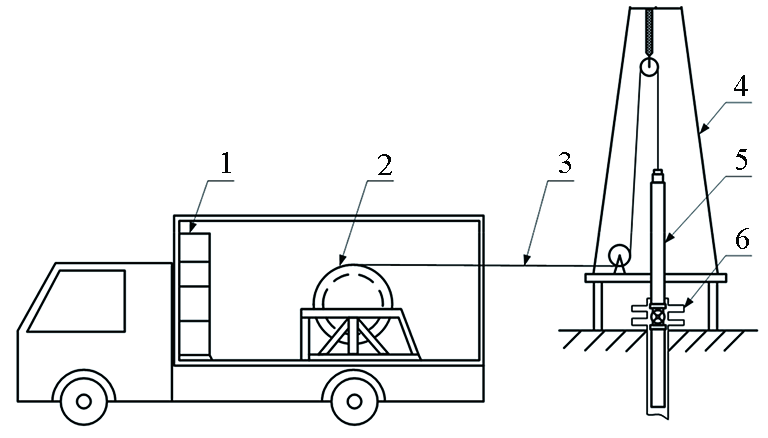

图1 测井系统组成示意 1—测井车;2—测井地面控制系统;3—测井铠装电缆;4—井架;5—超声成像测井探头;6—井口

Fig.1 Schematic diagram of the logging system 1—technical vehicle for logging; 2—well logging ground control system;3—well logging armoured cable; 4—derrick; 5—ultrasonic imaging logging sensor; 6—wellhead
