地震多属性技术组合在泸州页岩气区块构造解释中的综合应用

陈更生, 谢清惠, 吴建发, 赵春段, 徐尔斯, 潘元炜

Comprehensive application of the seismic multi-attribute technique combination in the tectonic interpretation of the Luzhou shale gas block

CHEN Geng-Sheng, XIE Qing-Hui, WU Jian-Fa, ZHAO Chun-Duan, XU Er-Si, PAN Yuan-Wei

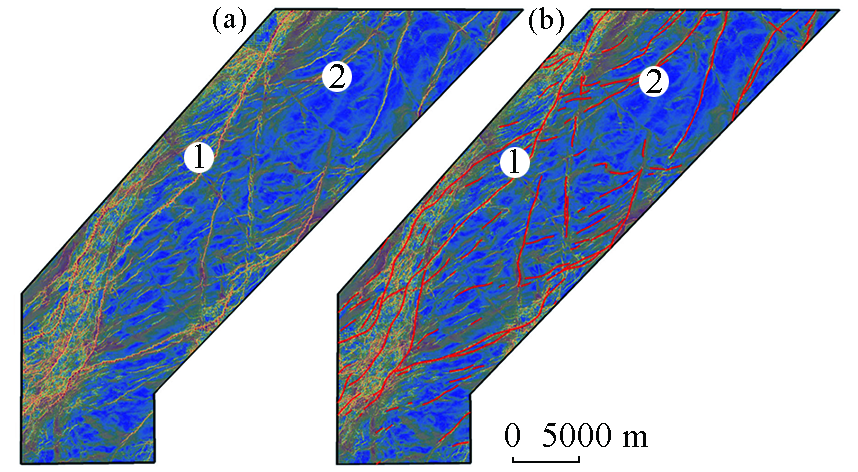

图3 沿目的层提取的地震多属性融合切片 a—最大曲率属性与边缘检测属性融合属性切片;b—断层多边形与融合属性切片叠合;①—1号断层;②—2号断层

Fig.3 Seismic multi-attribute fusion slices extracted along the target surface a—fusion attribute slice by maximum curvature attribute and edge detection attribute;b—superimposed map by fault polygons and fusion attribute slice;①—fault No.1;②—fault No.2
