新疆维权银铜多金属矿地质—地球物理找矿模式及成矿模型

冯军, 蒋文, 张征

Geophysical prospecting mode and metallogenic model of the Weiquan silver-copper polymetallic deposit in Xinjiang

Feng Jun, Jiang Wen, Zhang Zheng

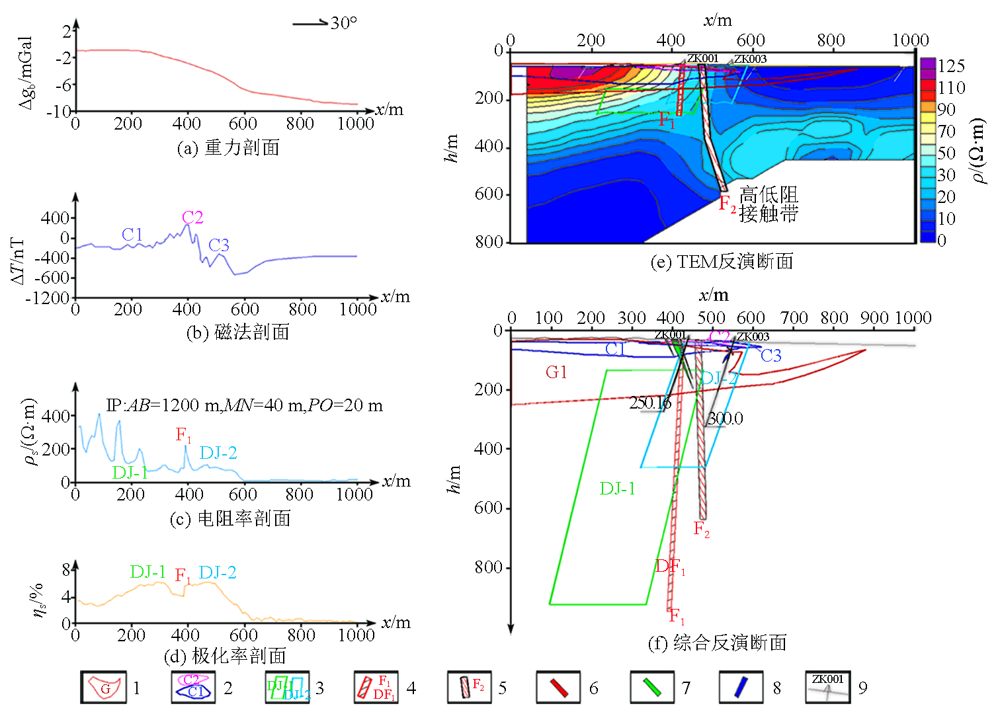

图5 阅兵矿区0线综合物探剖面异常及模型 1—重力反演的高密度体;2—磁法反演高磁性体及编号;3—磁电反演高极化体及编号;4—激电中梯反映的高阻构造带;5—TEM反映的构造带;6—钻孔中银矿层;7—钻孔中铜矿层;8—钻孔中铅矿化层;9—钻孔孔位及编号

Fig.5 Diagram for models and profile anomalies by integrated geophysical prospecting on the Line 0 of the Yuebing mineral area 1—gravity inverse highly dense body ; 2—magnetic inverse high magnet and numbering;3—IP intermediate gradient inverse high polarization body and numbering ;4—IP intermediate gradient reflective high resistance tectonic zone(F1);5—TEM reflective tectonic zone(F2);6—silver deposits in drilled holes;7—copper deposits in drilled holes;8—lead-zinc mineralizing deposits in drilled holes;9—the position and numbering of drilled holes
