新疆维权银铜多金属矿地质—地球物理找矿模式及成矿模型

冯军, 蒋文, 张征

Geophysical prospecting mode and metallogenic model of the Weiquan silver-copper polymetallic deposit in Xinjiang

Feng Jun, Jiang Wen, Zhang Zheng

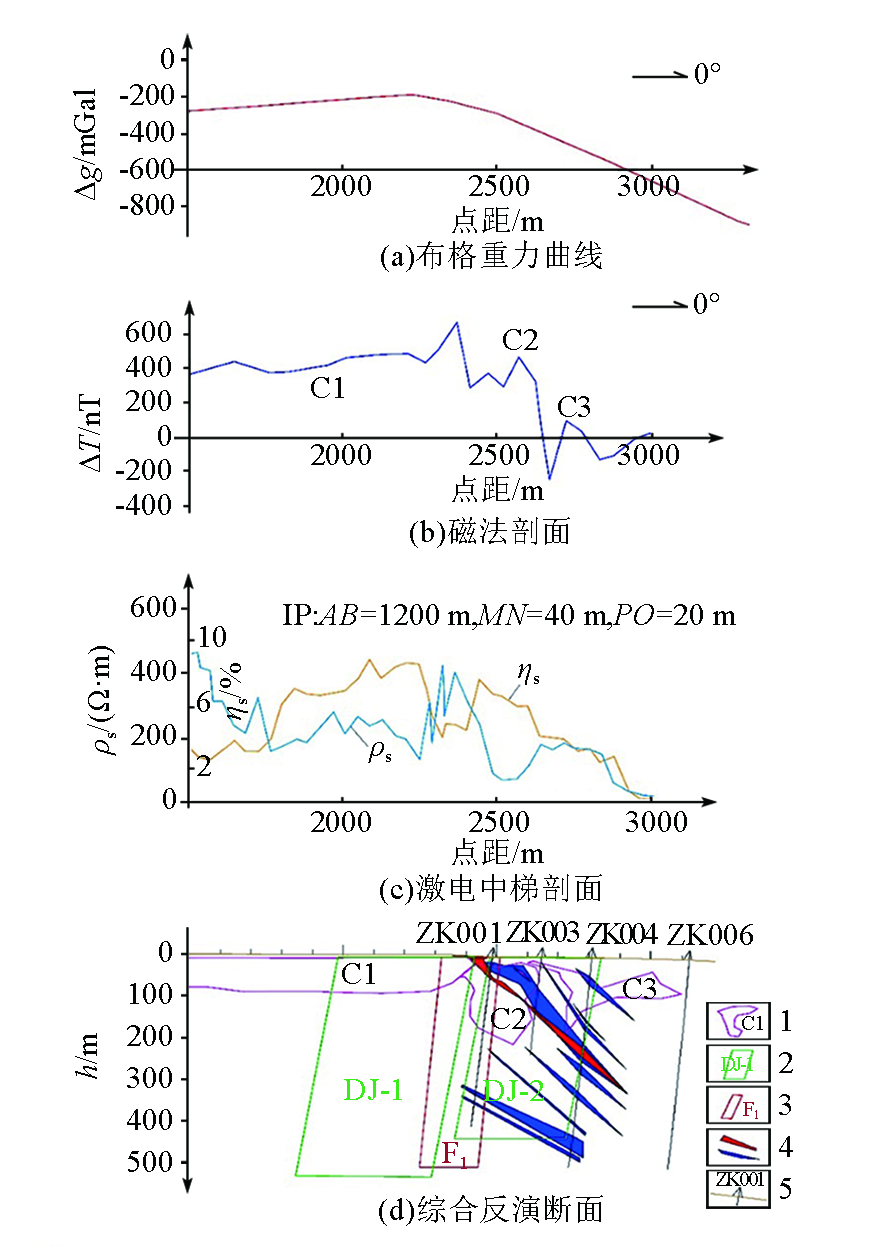

图4 维权矿区0线综合物探剖面异常及模型 1—反演高磁性体及编号;2—反演的极化体及编号;3—激电中梯反映的高阻构造带;4—钻孔中银矿层、钻孔中铅矿化层;5—钻孔孔位及编号

Fig.4 Diagram for models and profile anomalies by integrated geophysical prospecting on the Line 0 of the Weiquan mineral area 1—inverse high magnetic body and numbering;2—inverse high polarization body and numbering;3—IP intermediate gradient reflective high resistance tectonic zone;4—silver deposits in drilled holes and lead-zinc mineralizing deposits in drilled holes;5—the position and numbering of drilled holes
