新疆维权银铜多金属矿地质—地球物理找矿模式及成矿模型

冯军, 蒋文, 张征

Geophysical prospecting mode and metallogenic model of the Weiquan silver-copper polymetallic deposit in Xinjiang

Feng Jun, Jiang Wen, Zhang Zheng

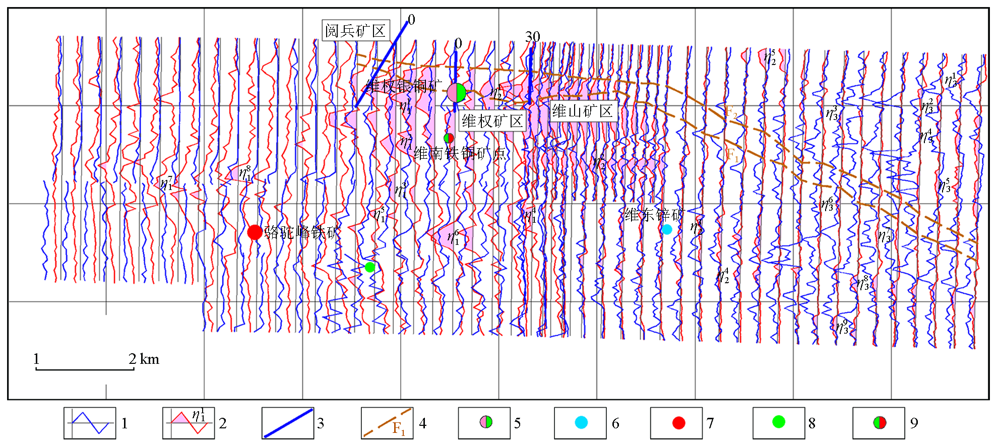

图3 维权一带激电中梯剖面平面 1—视电阻率曲线; 2—视极化率曲线及异常编号; 3—物探典型剖面; 4—推测断裂; 5—银铜矿; 6—锌矿点; 7—铁矿点; 8—铜矿点; 9—铁铜矿点

Fig.3 Sectional drawing in plane by IP method in central gradient array in the Weiquan area 1—apparent resistivity curve;2—apparent polarizability curve and code of anomaly;3—typical profiles for geophysical prospecting;4—inferred fault;5—copper-silver ore;6—zinc ore occurrence;7—iron ore occurrence;8—copper ore occurrence;9—copper-iron ore occurrence
