页岩气水力压裂分布式微弱电场监测技术初探

吴雯, 王猛, 杨迪琨, 陈默, 任林彬

Preliminary exploration into the monitoring technology for distributed weak electric field during hydraulic fracturing for shale gas extraction

WU Wen, WANG Meng, YANG Di-Kun, CHEN Mo, REN Lin-Bin

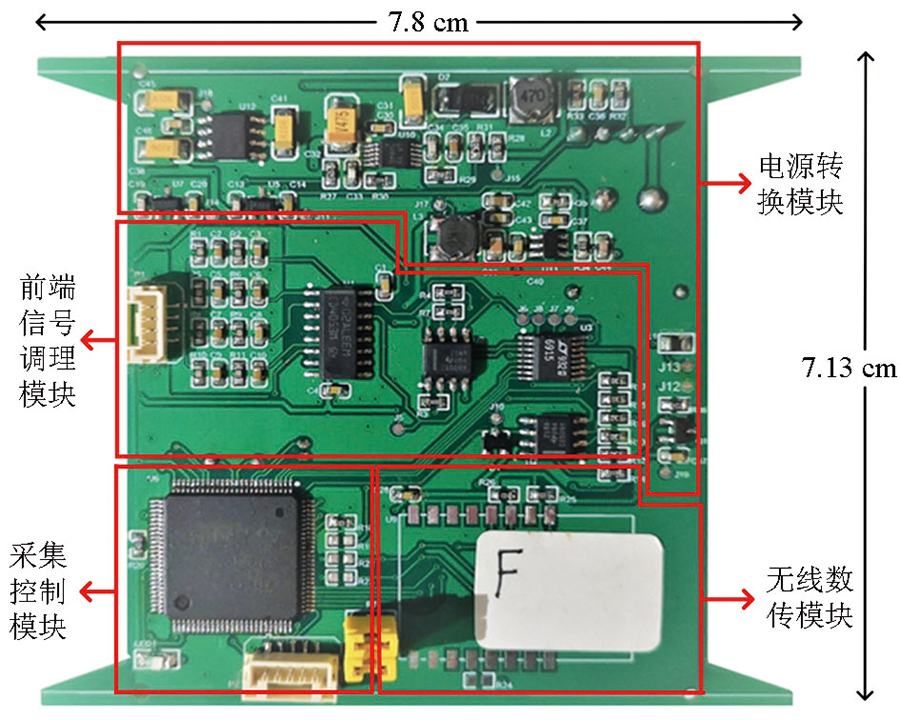

图4 核心采集电路实物

Fig.4 Physical diagram of core acquisition circuit
