回线源瞬变电磁法的一维Occam反演
One-dimensional Occam's inversion for transient electromagnetic data excited by a loop source
黑色曲线为一维模型,彩色曲线为反演结果
The black line denotes the realistic model, the color lines denote the inversion models
回线源瞬变电磁法的一维Occam反演 |
| 邢涛, 袁伟, 李建慧 |
|
One-dimensional Occam's inversion for transient electromagnetic data excited by a loop source |
| XING Tao, YUAN Wei, LI Jian-Hui |

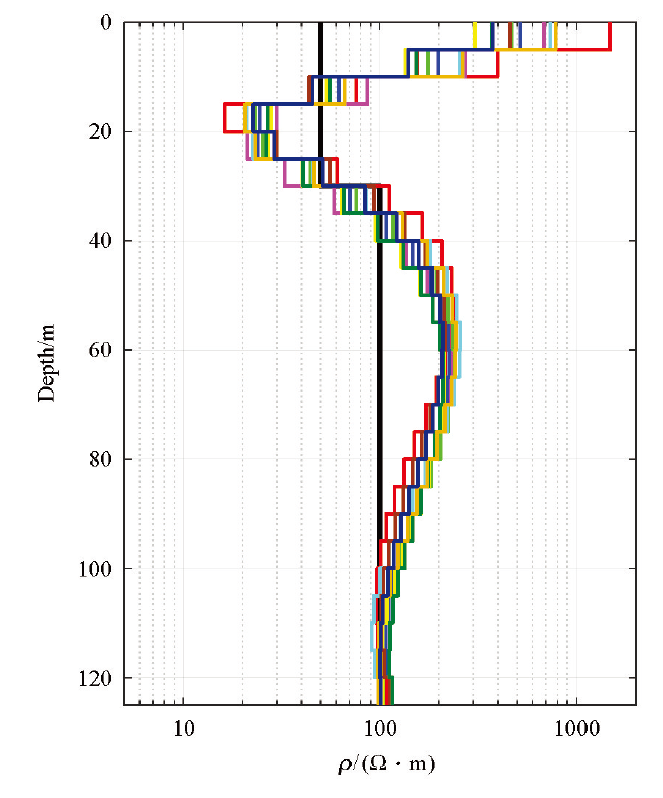

| 图7 随机噪声影响下,实际模型(Tx2发射回线)的反演地电模型 黑色曲线为一维模型,彩色曲线为反演结果 |
| Fig.7 Under the influence of random noise, the inversion geoelectric model of the actual model (Tx2 loop) The black line denotes the realistic model, the color lines denote the inversion models |
|
|
