综合物探方法在川东高陡断褶带隐伏断层勘探中的应用研究 |
彭明涛, 王磊, 曾明勇, 谢兵兵, 莫韦涛 |
The application of integrated geophysical prospecting to the exploration of buried faults in the high and steep fault-fold zone in eastern Sichuan |
PENG Ming-Tao, WANG Lei, ZENG Ming-Yong, XIE Bing-Bing, MO Wei-Tao |

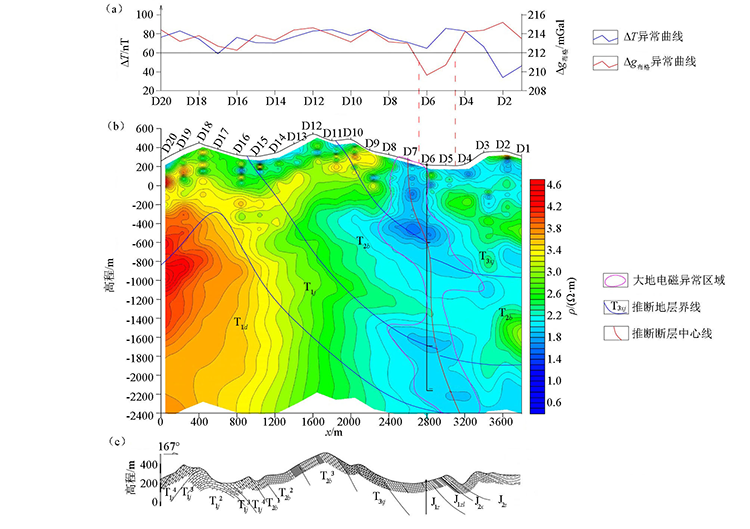

图5 WT2测线重磁电综合剖面 a—重、磁曲线;b—大地电磁电阻率等值线;c—草测地质剖面 |
Fig.5 Comprehensive section of gravity and magnetoelectricity of WT2 survey line a—gravity and magnetic curves;b—magnetotelluric resistivity isoline;c—geological profile |
