综合物探方法在广西罗城县活动断裂鉴定中的应用

吴教兵, 黎峻良, 江兰, 陆俊宏, 潘黎黎, 韦王秋

The application of comprehensive geophysical method to the identification of active faults in Luocheng County,Guangxi

WU Jiao-Bing, LI Jun-Liang, JIANG Lan, LU Jun-Hong, PAN Li-Li, WEI Wang-Qiu

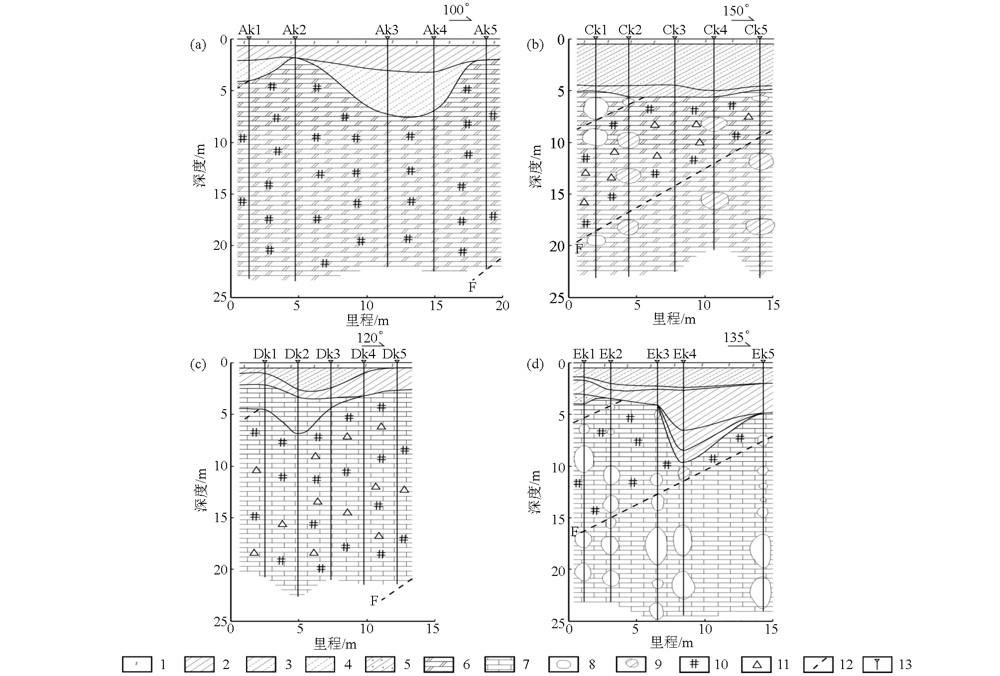

图11 各测线钻探剖面 a—A-A'测线;b—C-C'测线;c—D-D'测线;d—E-E'测线;1—耕植土;2—黏土;3—粉质黏土;4—粉土;5—含砾黏土;6—白云岩;7—灰岩;8—水充填的溶洞;9—黏土充填的溶洞;10—构造碎裂岩;11—构造角砾岩;12—断裂;13—钻孔

Fig.11 Drilling profile for each line a—A-A' line;b—C-C' line;c—D-D' line;d—E-E' line;1—arable soil;2—clay;3—silty clay;4—silt;5—gravelly clay;6—dolomite;7—limestone;8—water filled karst cave;9—clay filled karst cave;10—structural cataclastic rock;11—structural breccia;12—fracture;13—drilling hole
