综合物探方法在广西罗城县活动断裂鉴定中的应用

吴教兵, 黎峻良, 江兰, 陆俊宏, 潘黎黎, 韦王秋

The application of comprehensive geophysical method to the identification of active faults in Luocheng County,Guangxi

WU Jiao-Bing, LI Jun-Liang, JIANG Lan, LU Jun-Hong, PAN Li-Li, WEI Wang-Qiu

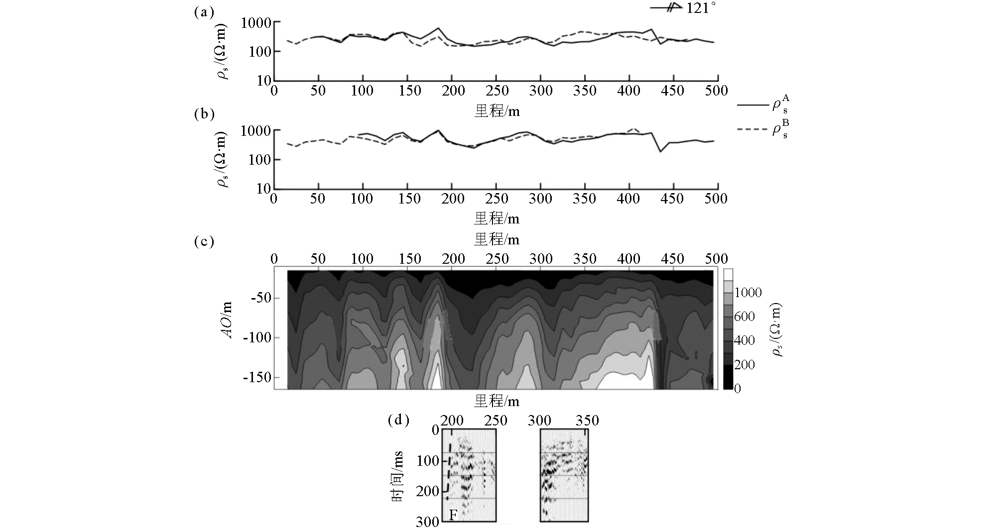

图10 E-E'测线物探成果 a—极距AO=35m的联合剖面曲线;b—极距AO=85m的联合剖面曲线;c—视电阻率等值线;d—地震映像波形

Fig.10 Geophysical prospecting results of line E-E' a—polar distance AO=35m multiple section;b—polar distance AO=85m multiple section;c—apparent resistivity contour map;d—seismic image waveforms
