CSAMT与AMT数据“拼接”处理——以湖南仁里铌钽矿床7号剖面为例

刘俊峰, 程云涛, 邓志强, 周芳春, 曹创华, 刘翔, 曾美强, 李杰, 黄志彪, 陈虎

CSAMT and AMT data "splicing" processing: A case study of No.7 profile of the Renli niobium tantalum deposit in Hunan Province

LIU Jun-Feng, CHEN Yun-Tao, DENG Zhi-Qiang, ZHOU Fang-Chun, CAO Chuang-Hua, LIU Xiang, ZENG Mei-Qiang, LI Jie, HUANG Zhi-Biao, CHEN Hu

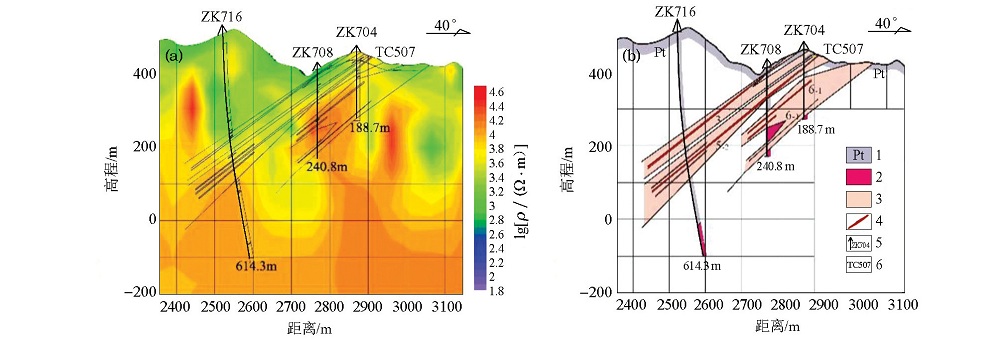

图7 7线已有钻孔段地电剖面(a)和地质勘探剖面(b)[23] 1—冷家溪群片岩;2—花岗岩;3—伟晶岩脉及其编号;4—矿体及编号;5—钻孔及编号;6—槽探及编号

Fig.7 Geoelectric profile of drilling verification section (a) and geological exploration section(b) of line 7 [23] 1—Lengjiaxi group schist; 2—granites; 3—pegmatite and its numbered; 4—ore body and its numbered; 5—drilling engineering and its numbered; 6—pit engineering and its numbered
