OBS在琼东南海域水合物矿体识别中的应用 |
徐云霞, 文鹏飞, 张宝金, 刘斌 |
The application of OBS to the identification of hydrate in Qiongdongnan (southern Hainan) sea area |
XU Yun-Xia, WEN Peng-Fei, ZHANG Bao-Jin, LIU Bin |

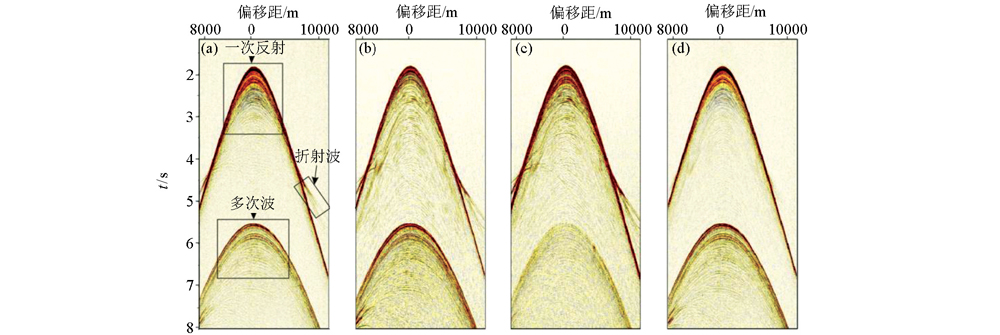

图5 波场分离效果 a—P分量;b—标定后Z分量;c—上行波;d—下行波 |
Fig.5 The result of the wave field separation a—P component;b—calibrated Z component;c—up going field;d—down going field |
