低序级断层结构导向坎尼属性边缘检测识别方法

马玉歌, 苏朝光, 张健, 刘军胜

Low-order fault structure-oriented Canny property edge detection and recognition method

Yu-Ge MA, Chao-Guang SU, Jian ZHANG, Jun-Sheng LIU

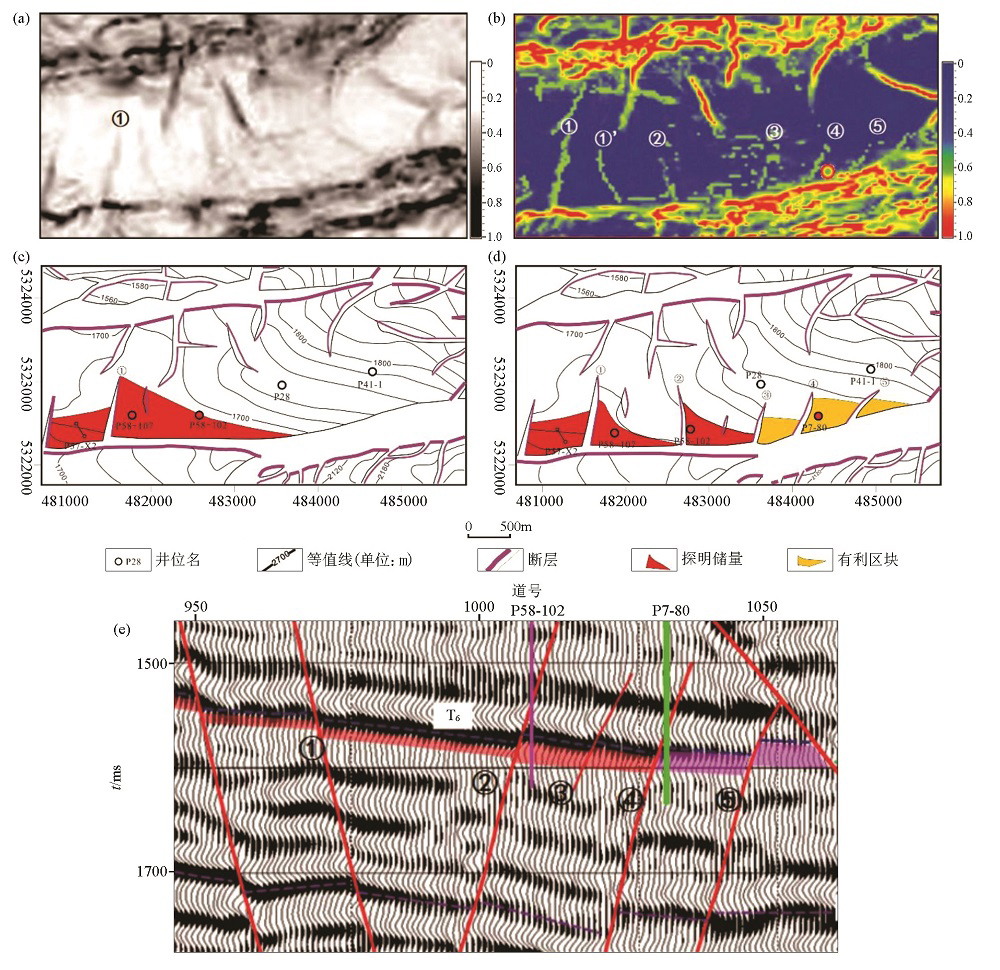

图3 P58-102井区新技术应用前后新老构造对比 a—P58-102井区沙三下相干属性;b—P58-102井区沙三下新方法属性;c—P58-102井区沙三下顶面构造图(老);d—P58-102井区沙三下顶面构造图(新);e—近东西向原始地震剖面

Fig.3 Comparison of new and old structures before and after the application of new technology in P58-102 well area a—P58-102 well area ES3x coherent properties;b—P58-102 well area ES3x new method properties;c—P58-102 well area ES3x top structure map(old);d—P58-102 well area ES3x top structure map(new);e—near east-west original seismic profile
