大地电磁测深法在滨北西部斜坡带油气地质调查评价中的应用

彭炎, 张小博, 张健, 张鹏辉, 袁永真, 姜春香

The application of magnetotelluric sounding method to oil-gas geological survey and evaluation of the western slope area of Binbei

Yan PENG, Xiao-Bo ZHANG, Jian ZHANG, Peng-Hui ZHANG, Yong-Zhen YUAN, Chun-Xiang JIANG

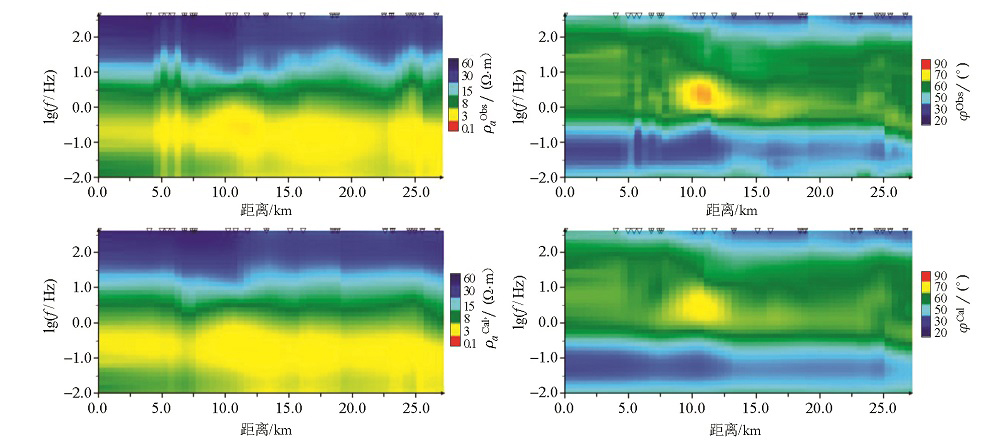

图9 二维反演拟合断面(上)与实测数据(下)对比

Fig.9 2D observation data section (top) and 2D inversion calculation section(below)
