基于探地雷达岩体浅部节理面识别的模型实验

王飞详, 梁风, 左双英

Model test on the identification of shallow joints in rock mass based on ground penetrating radar

Fei-Xiang WANG, Feng LIANG, Shuang-Ying ZUO

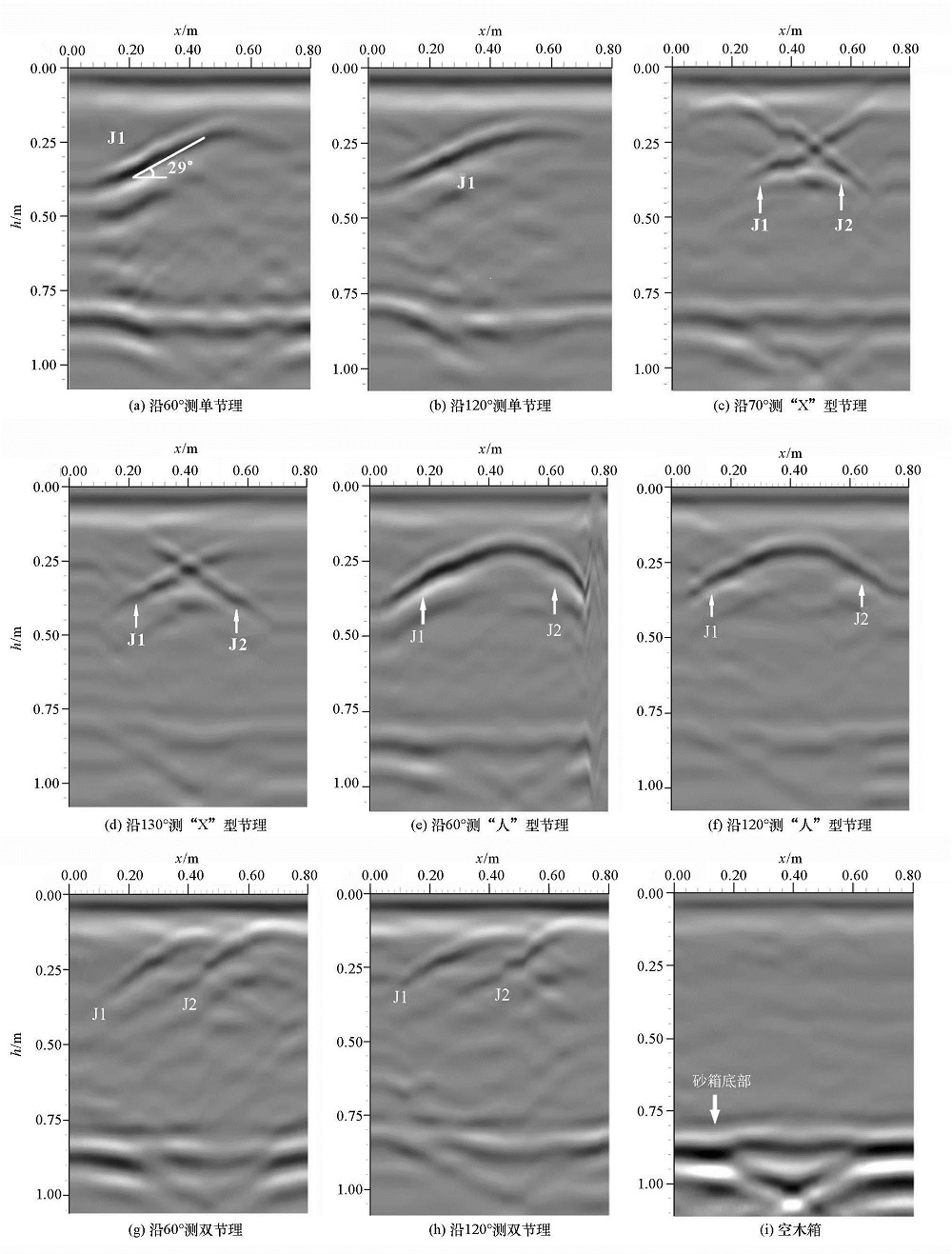

图4 沿视倾向探测砂箱中模拟节理面的雷达剖面图像(图中角度为方位角)

Fig.4 Radar profile images of simulated joint surfaces in the sandbox detected along the apparent dip direction(the angle in the figure is azimuth angle)
