动力滑翔机航磁测量系统的研发与应用

岳想平, 张健

The development and application of aeromagnetic measurement system for power glider

Xiang-Ping YUE, Jian ZHANG

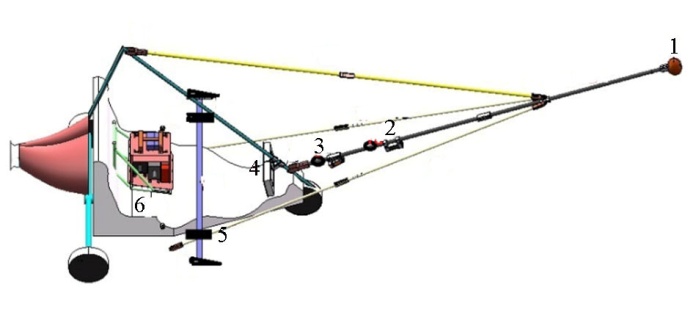

图3 滑翔机航磁系统支架设计 1—铯光泵磁探头;2—磁通门三分量传感器;3—实时差分GPS天线;4—导航显示屏;5—高度计;6—数据采集器、补偿器

Fig.3 Design drawing of hang-glider aeromagnetic system support 1—cesium optical pump magnetic probe;2—fluxgate three component sensor;3—real time differential GPS antenna;4—navigation display;5—altimeter;6—data collector,compensator
