基于Tanimoto相似的重力异常相关成像方法研究

王颖舜, 李军, 简兴祥

Research on gravity anomaly correlation imaging method based on Tanimoto similarity

Ying-Shun WANG, Jun LI, Xing-Xiang JIAN

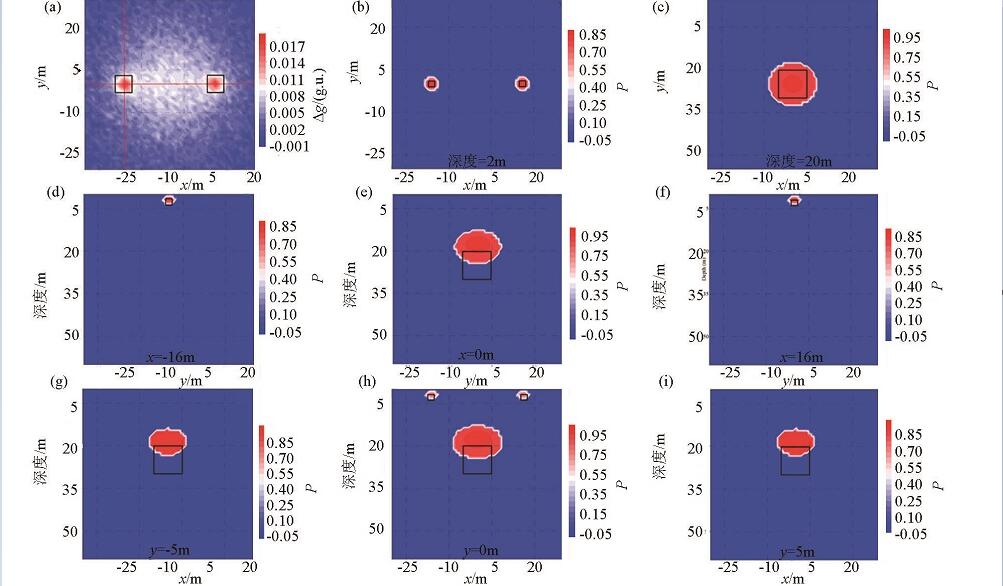

图9 三维模型正演及成像结果 a—模型正演结果;b—Depth=2 m剖面成像结果;c—Depth=20 m剖面成像结果;d—x=-16 m成像结果;e—x=0 m剖面成像结果;f—x=16 m剖面成像结果;g—y=-5 m剖面成像结果;h—y=0 m剖面成像结果;i—y=5 m剖面成像结果

Fig.9 3D model forward and imaging results a—model forward performance; b—Depth=2 m profile imaging result; c—Depth=20 m profile imaging result; d—x=-16 m imaging result; e—x=0 m profile imaging result; f—x=16 m profile imaging results; g—y=-5 m profile imaging results; h—y=0 m profile imaging results; i—y=5 m profile imaging results
